Installation and Servicing
SECTION 2 - INSTALLATION

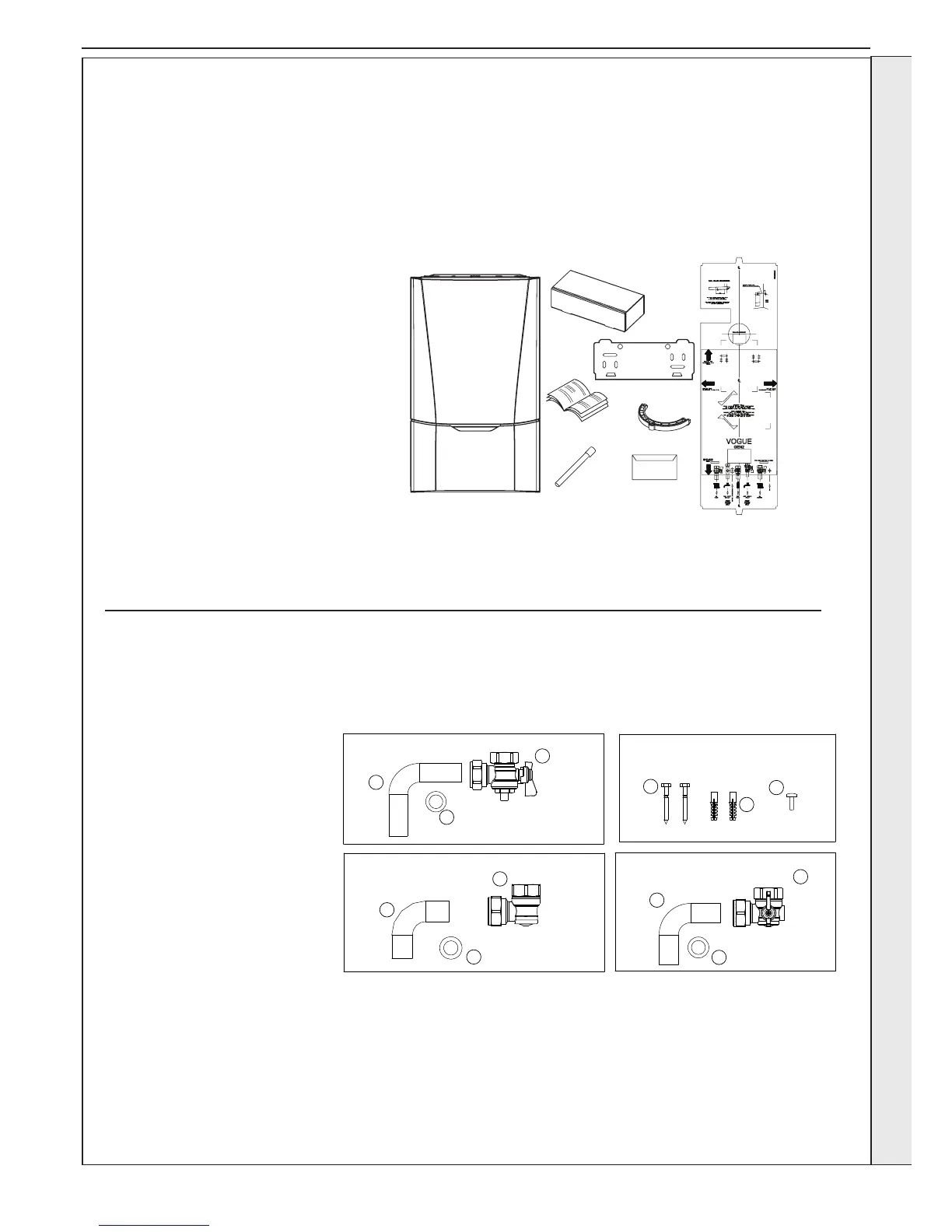

2.2 UNPACKING
The boiler is supplied fully assembled in Pack A. A telescopic or non-telescopic ue assembly for rear or side ue outlet, in Pack
B is supplied as a separate order.
Unpack and check the contents.
Pack A Contents
A Boiler
B Hardware Pack Box
C Wall Mounting Plate
D These Installation Instructions
E Wall Mounting Template
(located on internal protective packaging)
F Turret Clamp
G Pressure Relief Valve Drain Pipe
H Boiler Guarantee & Registration Pack
C
A
D
F
G
B
E
H
Boiler Guarantee
Gas Valve Pack
HARDWARE PACK CONTENTS
Gas Valve Pack
1. Pipe - Gas Inlet
2. Washer - Gas (blue)
3. Gas Cock
Return Valve Pack
1. Pipe CH Return
2. Washer CH
3. Valve Return
Accessory Pack
1. Screw (x2)
2. Wallplug (x2)
3. Turret Clamp Screw (spare) (x1)
Flow Valve Pack
1. Pipe CH Flow
2. Washer CH
3. Valve Flow
Accessory Pack
Flow Valve Pack
Return Valve Pack
1
2
3
1
1
1
2
3
3
2
2
3
continued . . . . .
