IDEAL Vogue System Gen 2 S32 User Manual

18
Installation and Servicing
SECTION 2 - INSTALLATION

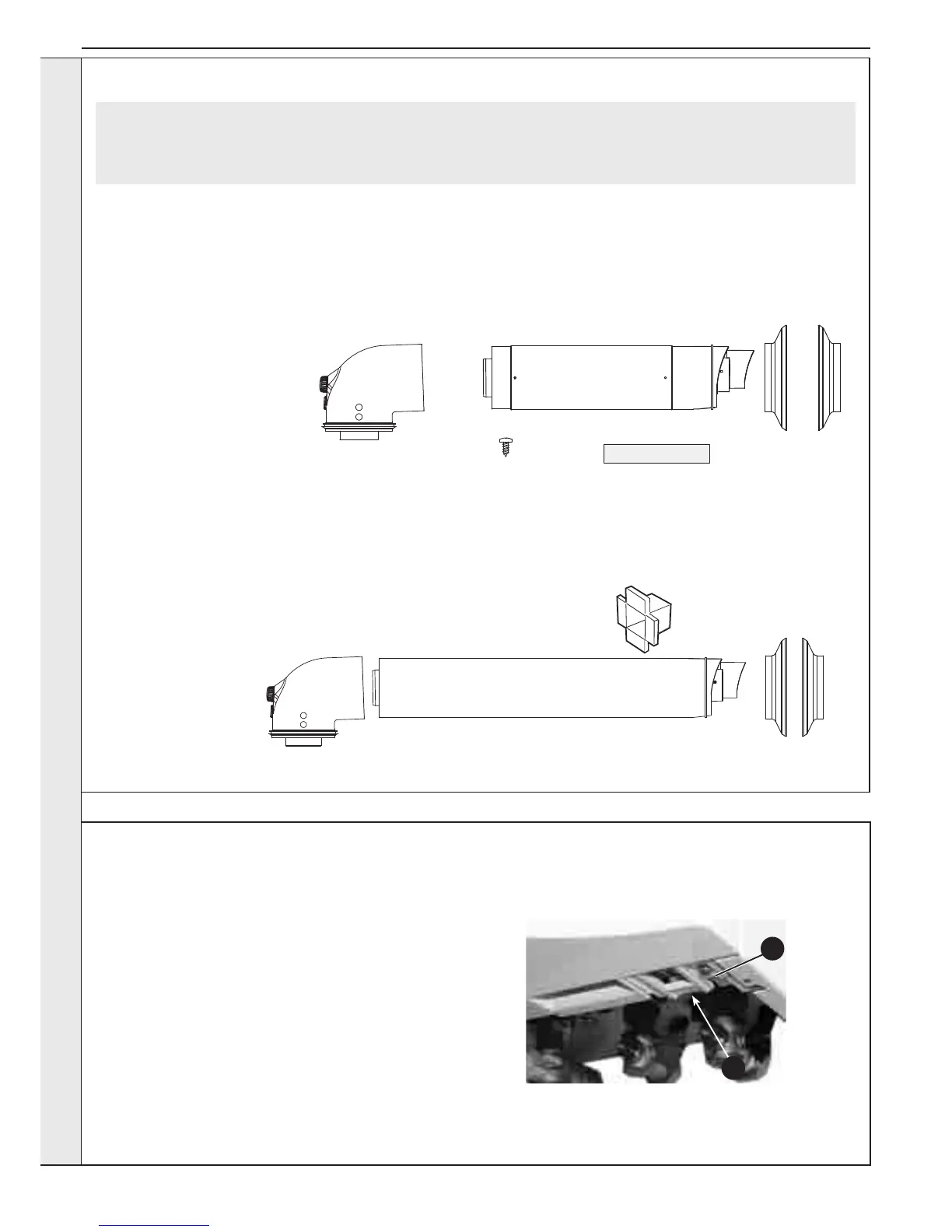

Pack B Contents Telescopic
A Telescopic Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal (external)
D Screw
E Sealing Tape
F Wall Seal - White (internal)
D
C
A
E
F
B
Pack B Contents Non-Telescopic
A Flue Terminal
B Flue Turret
C Rubber Terminal Wall Seal (external)
D Cutting Aid
E Wall Seal - White (internal)
A
D
B
CE
UNPACKING CONT’D
2.3 FRONT PANEL REMOVAL
1. Loosen the 2 screws retaining the front panel at the
underside of the boiler.
2. Release catches at rear of door by pulling
downwards.
3. Pull the underside front panel forward then lift
upwards to remove.
1
2
Note. This ue system incorporates a removable ue outlet nose that utilises a push t location system. This enables the
installation of deector, high level or balcony outlet ue kits without the removal of the whole ‘B’ pack terminal. The appliance
must not be operated without the desired outlet nose correctly tted in place.
Note. Location dimples must be aligned with terminal mounting frame.
INSTALLATION
