Installation and Servicing
SECTION 2 - INSTALLATION

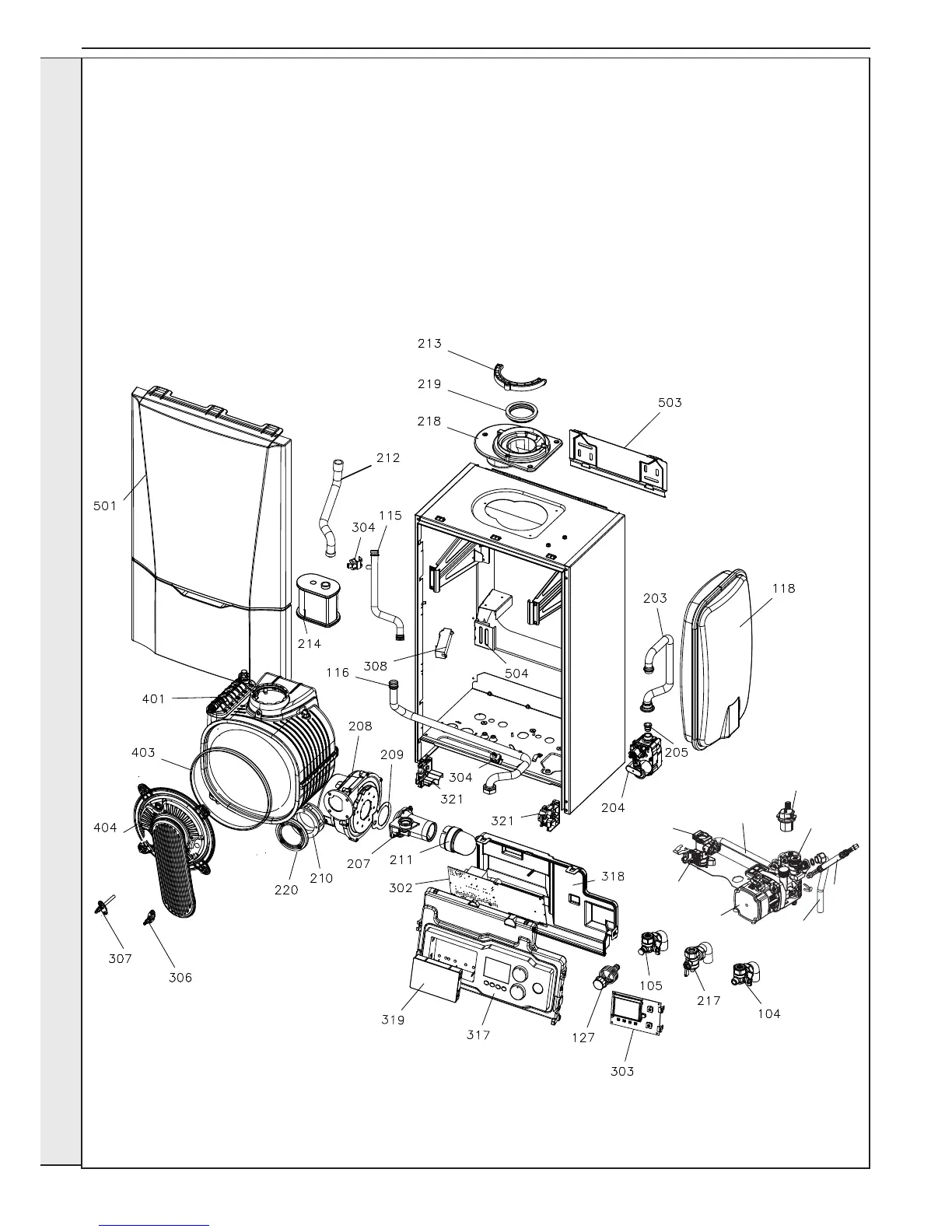

2.1 BOILER ASSEMBLY - Exploded View
Note that item numbers are linked to the spares list
104 CH Return Valve
105 CH Flow Valve
108 Pump Head
110 Auto Air Vent
113 Pressure Relief Valve
114 Pipe - PRV Outlet
115 Pipe - Flow
116 Pipe - Return
117 Pipe - Expansion Vessel
118 Expansion Vessel
120 Flow Group Manifold
121 CH Bypass
127 Pressure Gauge
131 CH Water Pressure Sensor
203 Pipe - Gas Inlet
204 Gas Valve
205 Injector - Gas
207 Venturi
208 Fan
209 Gasket - Fan/Venturi
210 Fan Adaptor
211 Venturi Deector
212 Condensate Hose
213 Flue Turret Clamp
214 Siphon trap
217 Gas Cock
218 Flue Manifold
219 Flue Manifold Seal
220 Fan Adaptor Seal
302 Primay PCB
303 CUI Board
304 Thermistor (Flow & Return)
306 Electrode Ignition
307 Electrode Detection
308 Ignitor Unit
317 Control Box Front
318 Control Box Lid
319 Programmer Blank Insert
321 Control Box Hinges
401 Heat Engine
403 Heat Engine Gasket
404 Burner Door
501 Front Panel/Door
503 Wall Mounting Plate
504 Bracket - Ignition
114
117
110
113
120
108
121
131
Model shown - S32
