- Assemble lower cowling, push the Bowden cable through the cut slot, lay it
upward and push through the central firewall aperture.

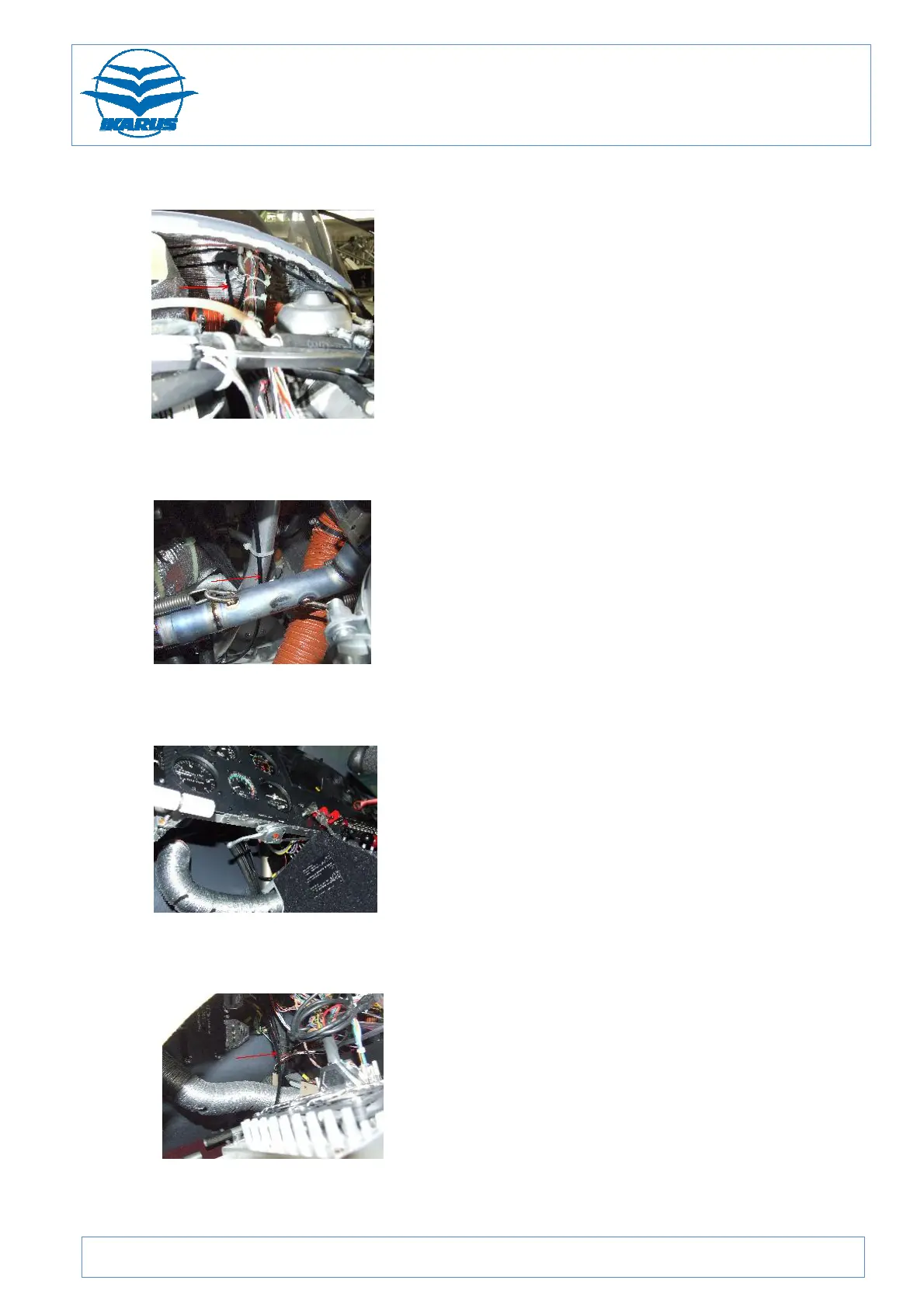

Figure 9: Bowden cable
- Secure the Bowden cable with cable ties against contact with hot exhaust
parts.
Figure 10: Exhaust pipe
- Fasten the actuating lever to the hinge bar with 2 x M5 countersunk head
screws and locking nuts (left at pilot’s side).
Figure 11: actuating lever
Lead the Bowden cable under the instruments panel to the actuating lever,
adjust the length with a clamping screw and clamp it
.
Figure 12: Bowden cable
