2.3 Design
The fuselage, wings, struts and empennage are made of high-strength aluminium
tubing/sections. The parts are screwed, riveted or welded to each other. All fittings
and screws are either made from stainless steel or are high-strength standard
elements.

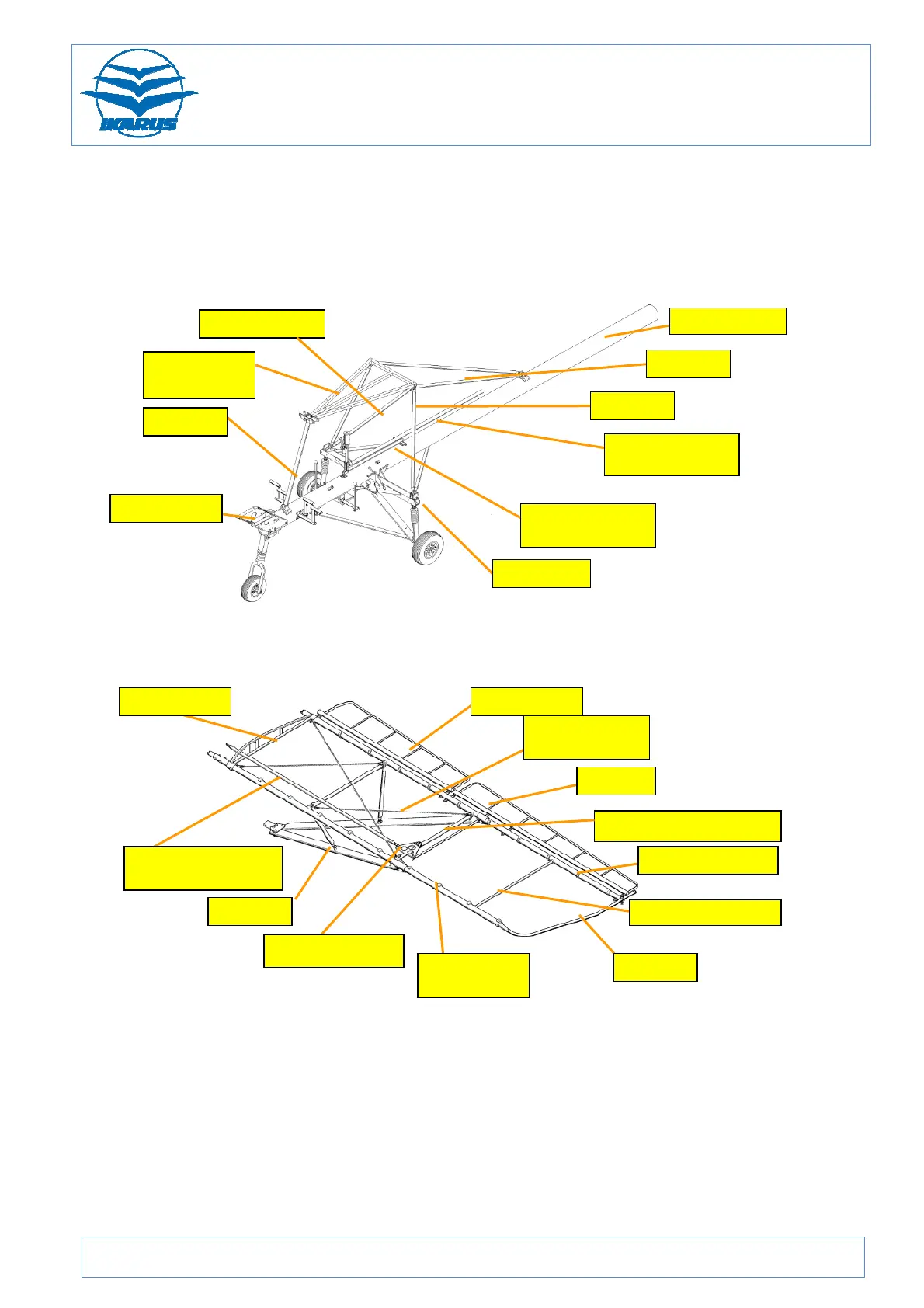

Figure 15: Fuselage design
Figure 16: Standard wing design without winglet
*only valid for standard wing without winglet
C
column
B
column
push-rod
elevator control
torsion tube
aileron control
cross
beam
canopy roof
frame
A
column
engine mount
fuselage tube
diagonal
strut
compression
strut*
wing flap
diagonal
bracing cable
aileron
rear wing tube
root rib
wing strut
bellcrank, aileron
forward wing
tube
wing tip *
aileron control rod,
long
aileron control rod, short
