iM3 GS User Manual

18
iM3 Handpiece Pressure Adjustment
Handpiece Pressure Adjustment
Each Handpiece should be set to a specific pressure. The Handpiece Pressure Adjustment is located
underneath and to the rear of each Handpiece holder, and is a small knurled knob.
Turn your unit on and select the Handpiece (high or low speed) to be adjusted, remove from a holder
and depress the foot pedal. Turn the adjustment knob until the desired pressure is displayed on the
handpiece pressure gauge pictured below.
Low Speed Handpiece
35-45 p.s.i.* (normally 40 p.s.i.)
High Speed Handpiece
30-35 p.s.i.* (normally 35 p.s.i.)
NOTE: Check that the pressure on the Compressor Regulator is set at 70 p.s.i. or 5 BAR.
iM3 Dental Systems
3 way syringe
holder
Low speed hand-
piece holder
Low speed pressure
adjuster

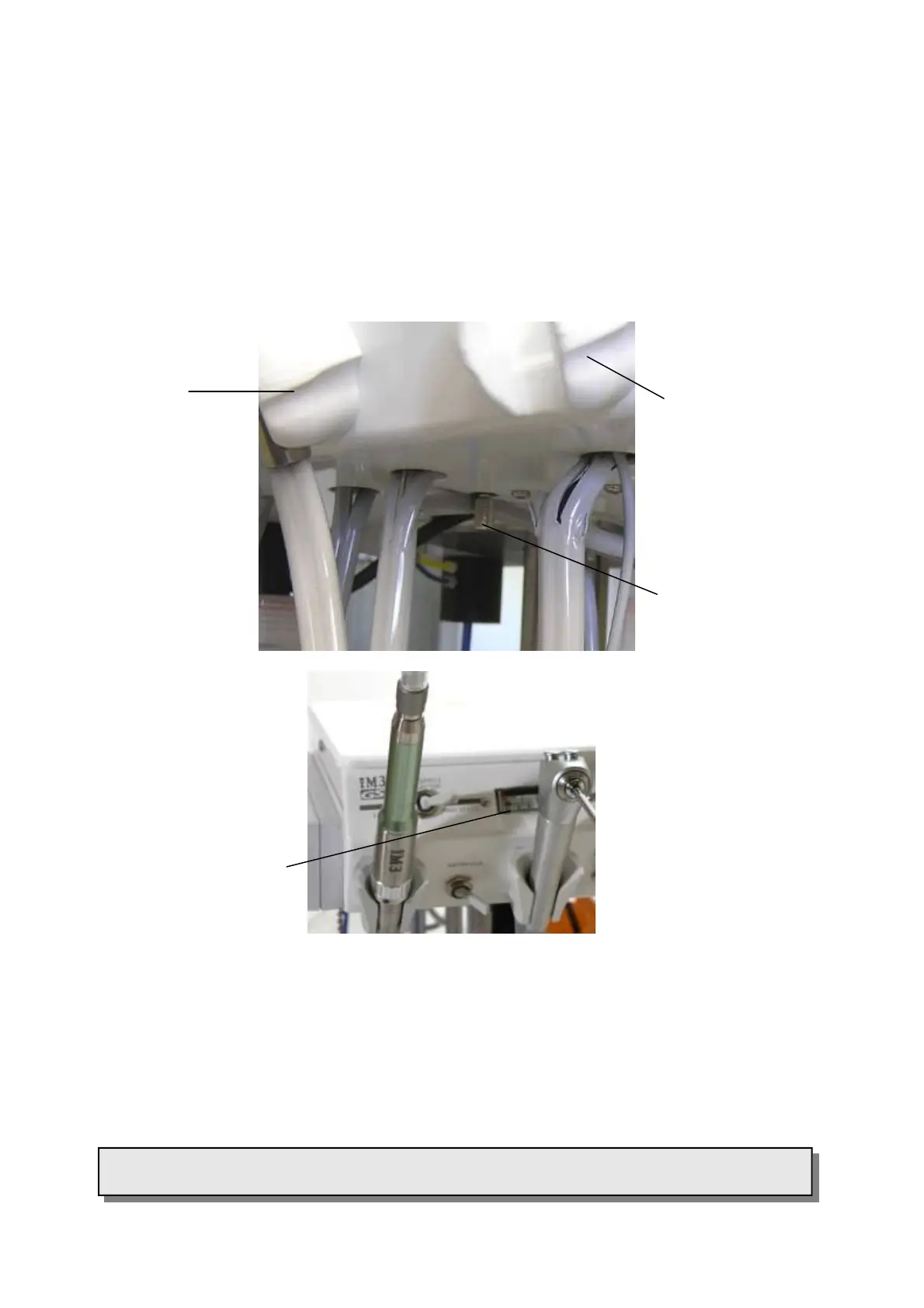

PRESSURE IS READ
ON THE HANDPIECE
PRESSURE GAUGE
