24
iM3 Dental Systems

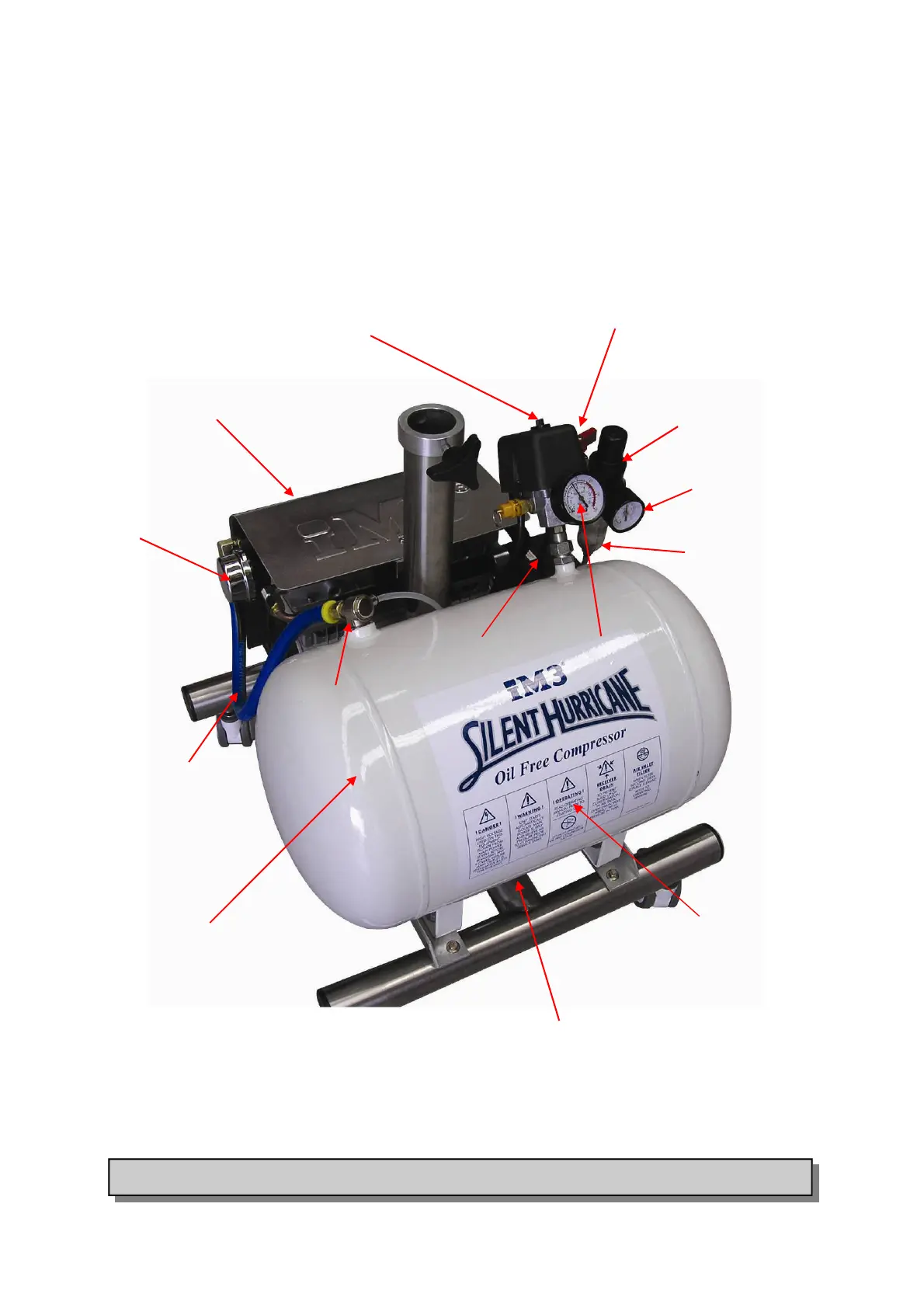

iM3 Silent Hurricane Oil Free Compressor
Compressor ON/OFF
pressure switch
I = On
O = Off
Outlet pressure regulator
Air to dental machine ON/
OFF tap is on when in line
with outlet
Pictured in Off/closed posi-
tion
Air tank pressure
gauge
Regulator pressure
gauge
Compressor air tank
Non return
valve
Air inlet filter
Oil Free Compressor motor
under cover
Rubber air line
Tank drain under
middle of tank see
P.26
Regulator drain bowl
Maintenance Instructions
Circuit breaker located on the side of Black electrical box.
Push to Reset
Black electrical box
with circuit breaker
