-12-
Introduction
■
Overview
The AM600 is a modularized medium-sized PLC. Each rack can contain 16 local expansion modules
and support remote rack expansion through industrial eldbuses such as Probus-DP
,
EtherCAT
,
and
CANopen.
I/O expansion for the AM600 local expansion modules
,
including the digital input/output modules
,
analog input/output modules
,
temperature module
,
and remote function modules
,
is based on the
internal bus protocol.
The analog input/output modules have the following features:
1) Use 16-bit resolution conversion chips to achieve higher signal conversion accuracy.
2) Support single-axis point-to point positioning via high-speed IO with maxium 200kHz frequency
output.
3) Support 16-axis and 32-axis for PTP positioning and provides the single-axis acceleration/
deceleration control
,
electronic gear
,
and electronic cam functions.

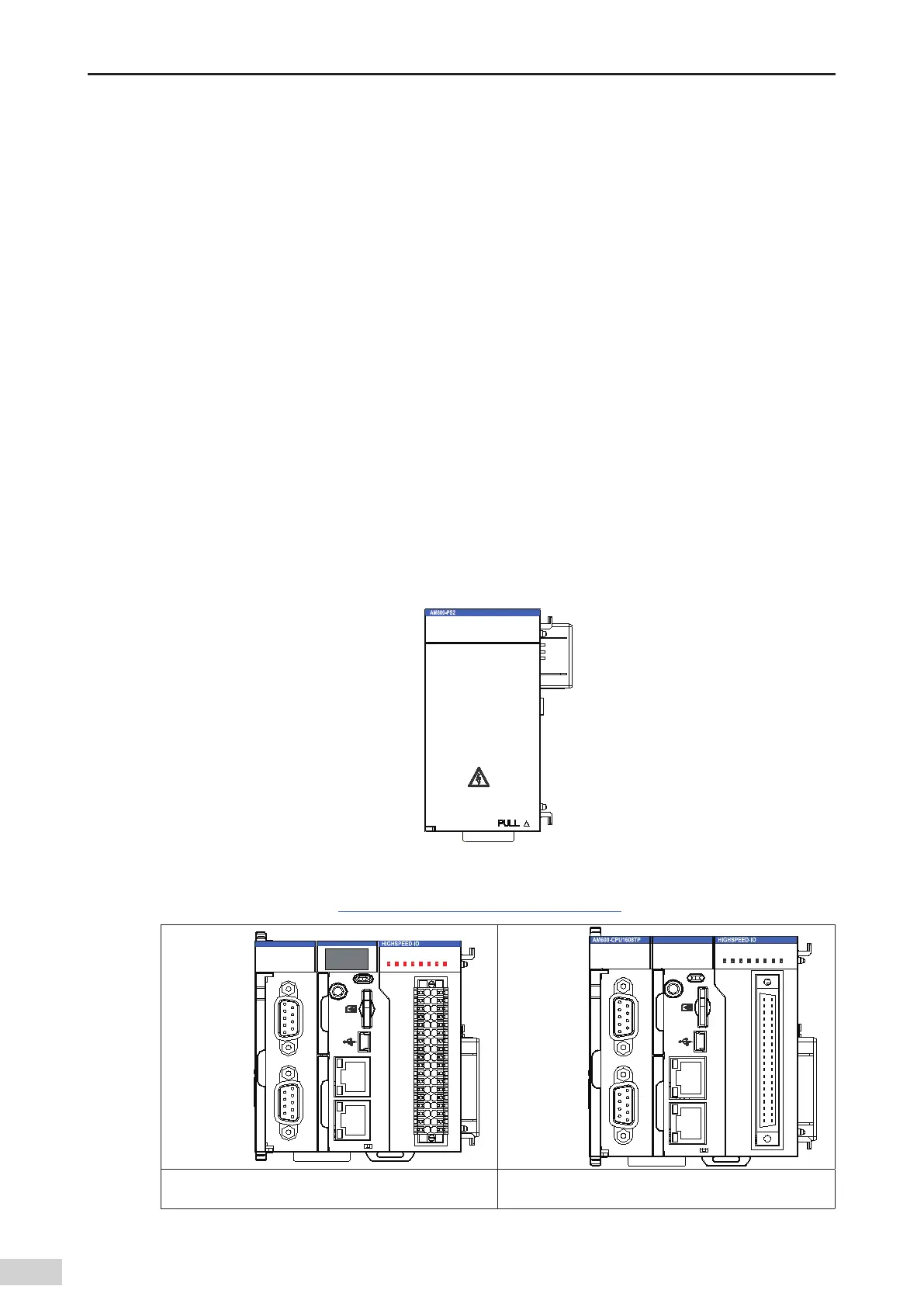

2.1 Product System Assembly
A normally-running AM600 system must include the following three modules:
1) Power module: The power module is mandatory for the local and remote racks. It converts AC power
into DC power and supplies DC power to other parts on the guide rail. Each local rack and remote
rack must be equipped with a power module (220 V input and 24 V/2 A output).
AM600
POWER
Risk of electric shock
小心触电
2) CPU module: The CPU module (including the tail board) is the core of the AM600 system and
functions as the management and control center of the system. For details about the related
functions
,
see Section
"2.1.1 Function Description of the CPU Module"
.
MFK
RUN/ STOP
CN5
CN1 RS485
CN3 EtherNET CN4 EtherCAT
BF
SF
ERR
RUN
0 1 2 3 7654
2 765410 3
4 5 6 73210
I
II
AM401-CPU1608TN
CN2 CAN
3536
2 1
CANRUN
CANERR
II
I
0 1 2 3 7654
30 1 4 5
6 72
4 5 6 73
210
RUN
ERR
SF
BF
CANRUN
CANERR
RUN STOP
CN4 EtherCATCN3 EtherNET
CN2 CANCN1 RS485
CN
5
12
40 39
MFK
AM401(/402)-CPU1608TP(/TN)
(Not available for European market)
AM600(/610)-CPU1608TP
