-34-
Introduction
3) Dimensions (mm)
4 5 6 73210 I
II
0 1 2 3 7654
0
0
I
I
I
I
I
II
II
II
II
I
I
I
I
II
II
II
II
32.0
90.0
117.0
95.0

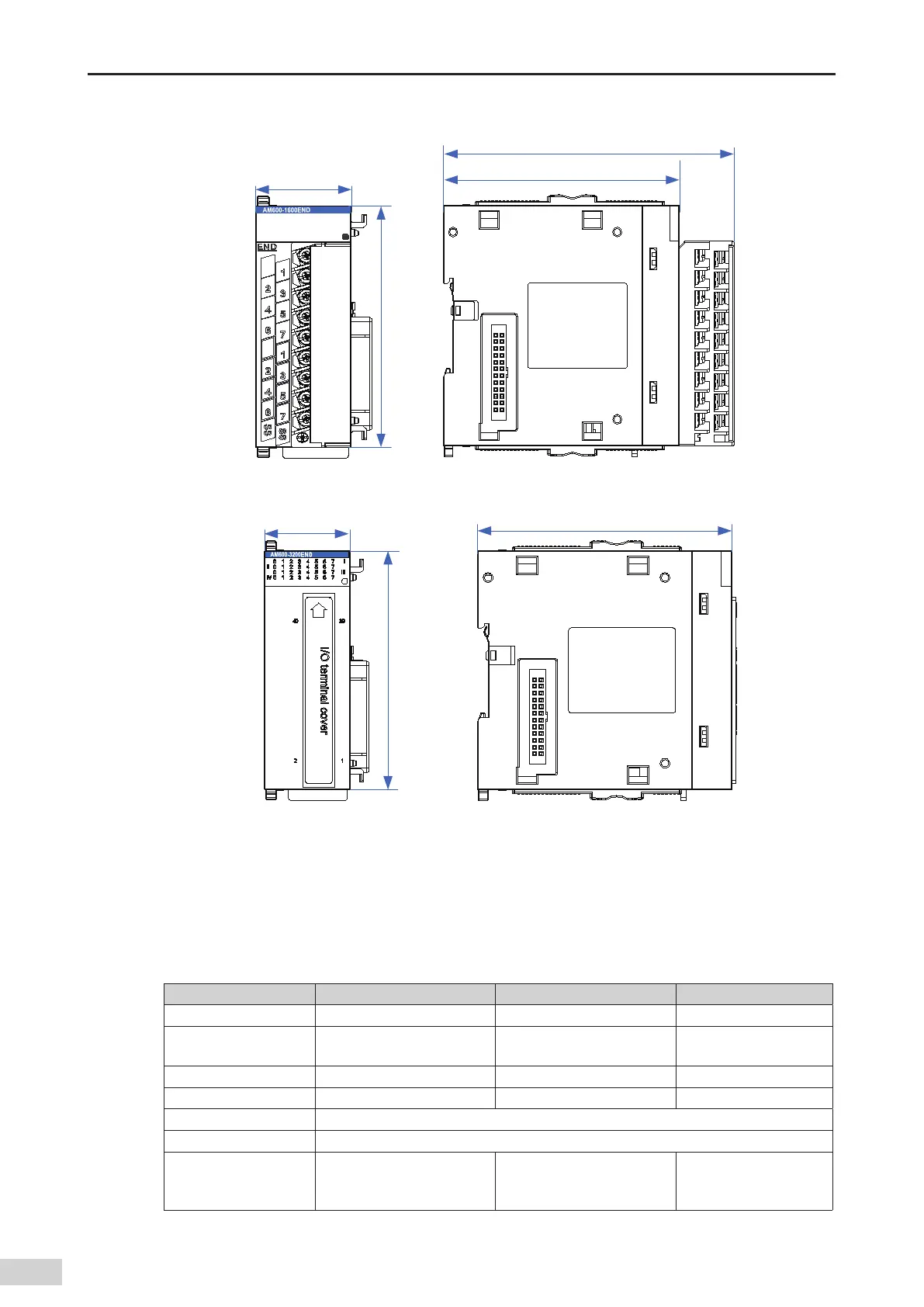

Figure 3-11 Dimensions of DI module (AM600-1600END)
Figure 3-12 Dimensions of DI module (AM600-3200END)
3.4.2 DO Module
1) Basic specications
■
Basic specications of the transistor output module
Item AM600-0016ETP AM600-0016ETN AM600-0032ETN
Output channel 16 16 32
Output connecting
mode
18-channel wiring terminal 18-channel wiring terminal
40-pin high density
terminal
Output Type Transistor
,
PNP Transistor
,
NPN Transistor
,
NPN
Output mode SOURCE SINK SINK
Power supply voltage 24 VDC (–15% to +20%)
Output voltage class 12 to 24 V (-15% to +20%)
Power consumption of
the internal 5 V power
supply
65 mA (typical value) 85 mA (typical value) 115 mA (typical value)
To Next Page
