Introduction
5.6.2 DO Module
1 DO Module (AM600-0016ETP/AM600-0016ETN/AM600-0016ER)
■

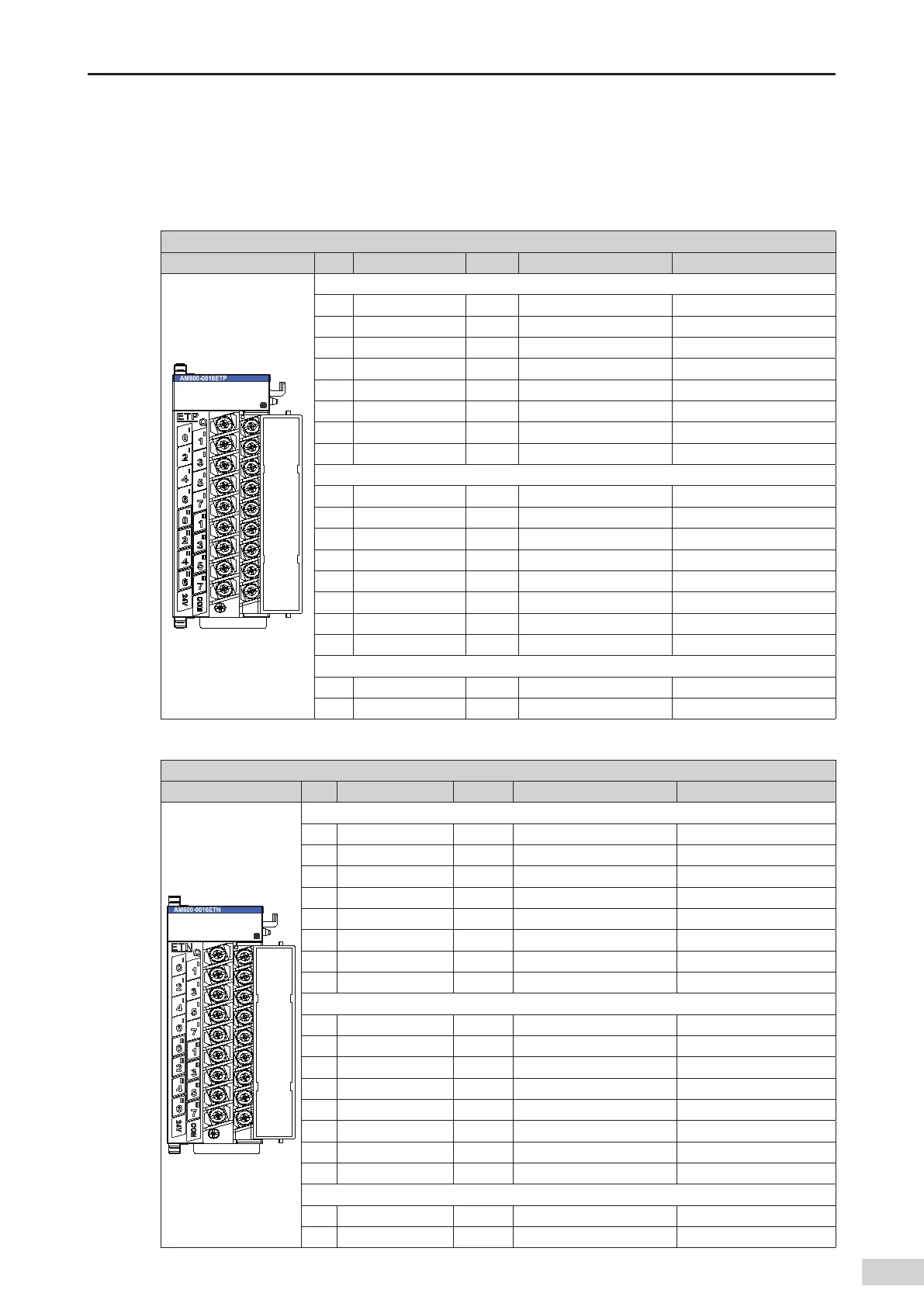

Terminal signal arrangement and de󶍾nitions (AM600-0016ETP)
Transistor output module (AM600-0016ETP)
Terminal Arrangement No. Terminal Symbol Type Function Remarks
4 5 6 73210
0 1 2 3 7654 II
I
Output interfaces of group 1
1 Q0 Output User output 0 of group 1 Source output
,
active high
2 Q1 Output User output 1 of group 1 Source output
,
active high
3 Q2 Output User output 2 of group 1 Source output
,
active high
4 Q3 Output User output 3 of group 1 Source output
,
active high
5 Q4 Output User output 4 of group 1 Source output
,
active high
6 Q5 Output User output 5 of group 1 Source output
,
active high
7 Q6 Output User output 6 of group 1 Source output
,
active high
8 Q7 Output User output 7 of group 1 Source output
,
active high
Output interfaces of group 2
9 Q0 Output User output 0 of group 2 Source output
,
active high
10 Q1 Output User output 1 of group 2 Source output
,
active high
11 Q2 Output User output 2 of group 2 Source output
,
active high
12 Q3 Output User output 3 of group 2 Source output
,
active high
13 Q4 Output User output 4 of group 2 Source output
,
active high
14 Q5 Output User output 5 of group 2 Source output
,
active high
15 Q6 Output User output 6 of group 2 Source output
,
active high
16 Q7 Output User output 7 of group 2 Source output
,
active high
Power connector
17 24 V Power 24 V power supply 24 VDC power input
18 COM Power Power ground 24 VDC power common
■
Terminal signal de󶍾nitions (AM600-0016ETN)
Transistor output module (AM600-0016ETN)
Terminal Arrangement No. Terminal Symbol Type Function Remarks
4 5 6 73210
0 1 2 3 7654 II
I
Output interfaces of group 1
1 Q0 Output User output 0 of group 1 Sink output
,
active low
2 Q1 Output User output 1 of group 1 Sink output
,
active low
3 Q2 Output User output 2 of group 1 Sink output
,
active low
4 Q3 Output User output 3 of group 1 Sink output
,
active low
5 Q4 Output User output 4 of group 1 Sink output
,
active low
6 Q5 Output User output 5 of group 1 Sink output
,
active low
7 Q6 Output User output 6 of group 1 Sink output
,
active low
8 Q7 Output User output 7 of group 1 Sink output
,
active low
Output interfaces of group 2
9 Q0 Output User output 0 of group 2 Sink output
,
active low
10 Q1 Output User output 1 of group 2 Sink output
,
active low
11 Q2 Output User output 2 of group 2 Sink output
,
active low
12 Q3 Output User output 3 of group 2 Sink output
,
active low
13 Q4 Output User output 4 of group 2 Sink output
,
active low
14 Q5 Output User output 5 of group 2 Sink output
,
active low
15 Q6 Output User output 6 of group 2 Sink output
,
active low
16 Q7 Output User output 7 of group 2 Sink output
,
active low
Power connector
17 24 V Power 24 V power supply 24 VDC power input
18 COM Power Power ground 24 VDC power common
