l Chapter 7 Selection and Dimensions
- 105 -

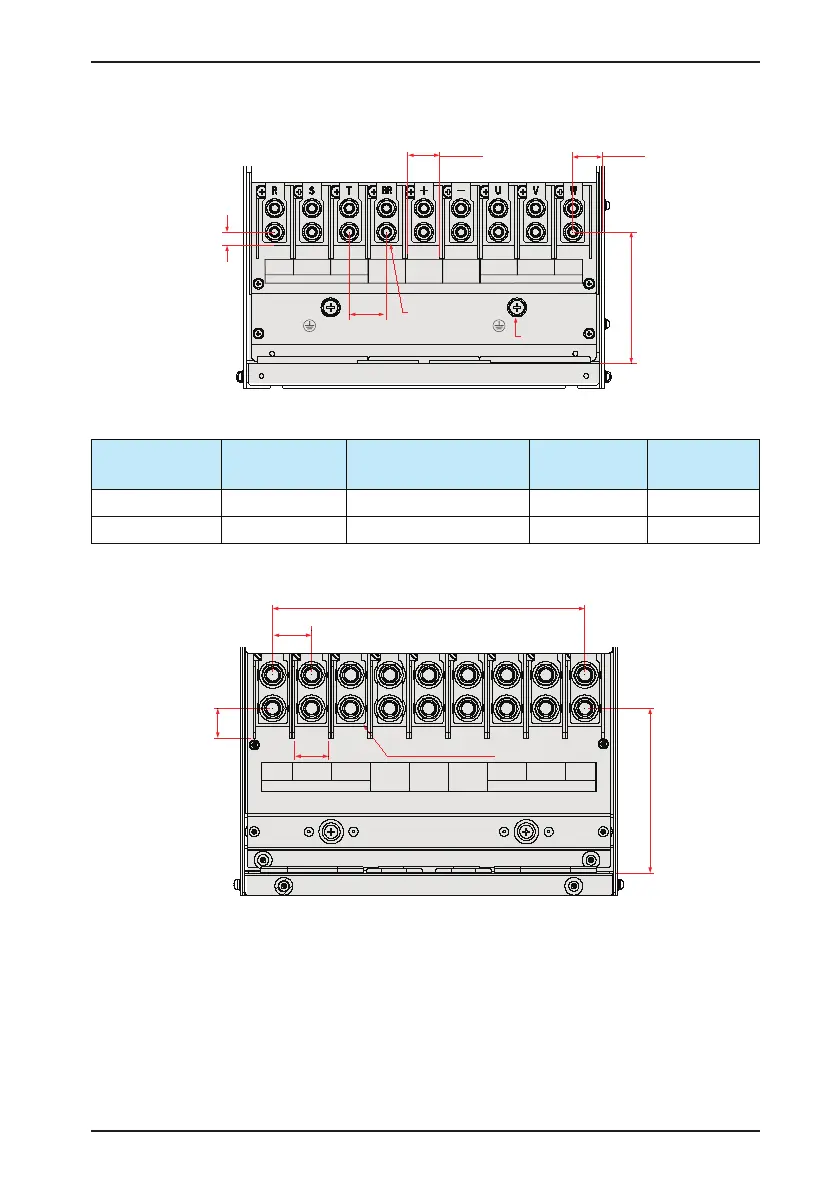

Figure 7-5 Terminal dimensions of the CS200-4T 45GB/55GB
MOTOR
POWER
24.826.8
R S T
BR (+) (-)
U
V
W
31
111
11
M8 flat washer +
spring washer + nut
M8
Combination
screw
Table 7-5 Cable dimensions and tightening torque of the CS200-4T 45GB/55GB
AC Drive Model
Rated Input Current
(A)
Recommended Cable Diameter
(mm
2
)
Tightening Torque
(N·m)
Recommended
Cable Lug Model
CS200-4T45GB 89 25 10.5 GTNR25-8
CS200-4T55GB 106 35 10.5 GTNR35-8
Figure 7-6 Terminal dimensions of the CS200-4T 75GB
280
35
27
30.6
148.5
M12
bolt spring flat washer
R S
T
U V
W
POWER MOTOR
BR (+) (-)
To Next Page
