Inovance CS200-4T75GB User Manual

Chapter 7 Selection and Dimensions
- 106 -
Table 7-6 Cable dimensions and tightening torque of the CS200-4T 75GB
AC Drive Model
Rated Input Current
(A)
Recommended Cable Diameter
(mm2)
Tightening Torque
(N·m)
Recommended
Cable Lug Model
CS200-4T75GB 139 50 35.0 GTNR70-12
■
Cable Lug Specication
The recommended cable lug is manufactured by Suzhou Yuanli Metal Enterprise.

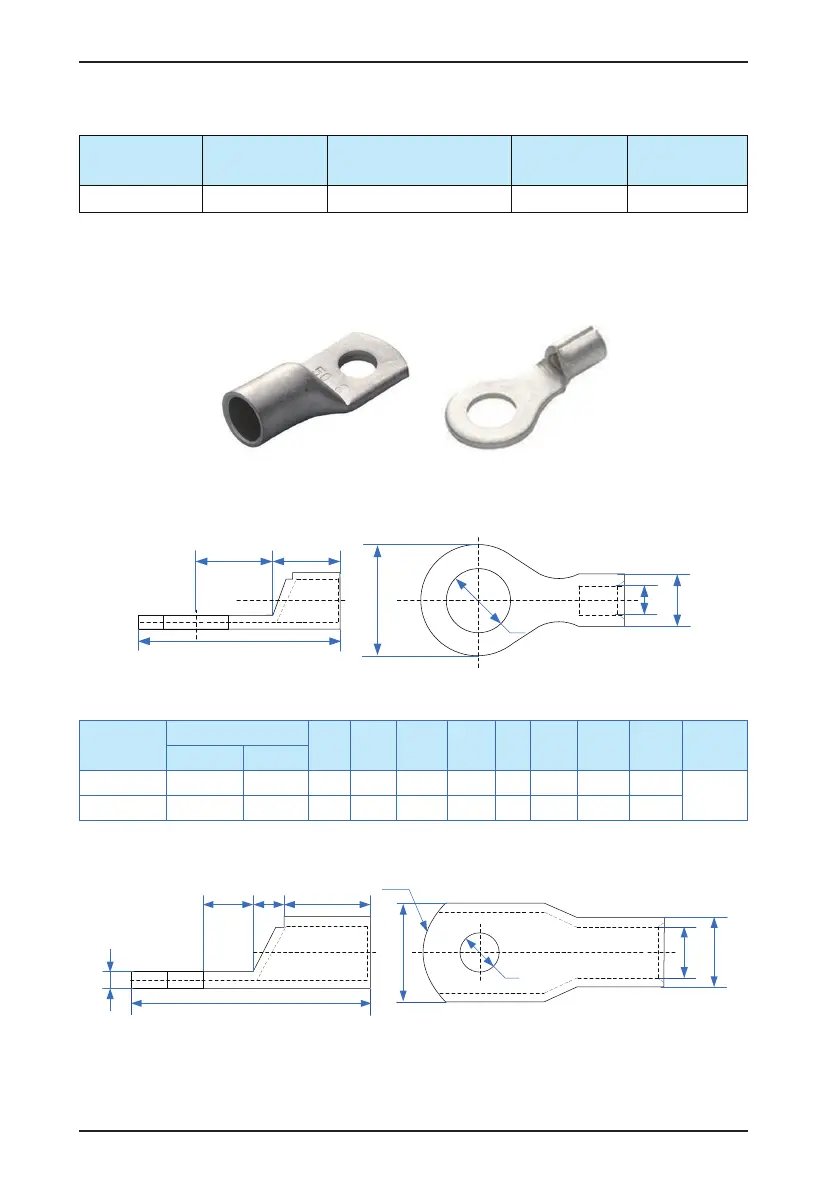

Figure 8-12 Appearance of recommended cable lugs (Suzhou Yuanli)
CTNR series TNR series
Figure 7-7 Dimensions of recommended TNR series cable lugs
L
B
d2
d1
D
E
F
Table 7-7 Models and dimensions of the TNR series cable lugs (unit: mm)
Cable Lug
Model
Cable Range D d1 E F B d2 L Current
(A)
Crimping
Tool
AWG/MCM mm
2
TNR0.75-4 22-16 0.25-1.0 2.8 1.3 4.5 6.6 8.0 4.3 15.0 10 RYO-8
AK-1M
TNR1.25-4 22-16 0.25-1.65 3.4 1.7 4.5 7.3 8 5.3 15.8 19
Figure 7-8 Dimensions of recommended GTNR series cable lugs
B
d1 D
d2
R
L
F
H K E
