Chapter 3 Mechanical and Electrical Installation
- 28 -
3.1.5 Removal of the Front Cover
For the CS200, you need to remove the front cover before wiring the main circuit and control circuit. The following
gures show how to remove the front cover of the CS200.

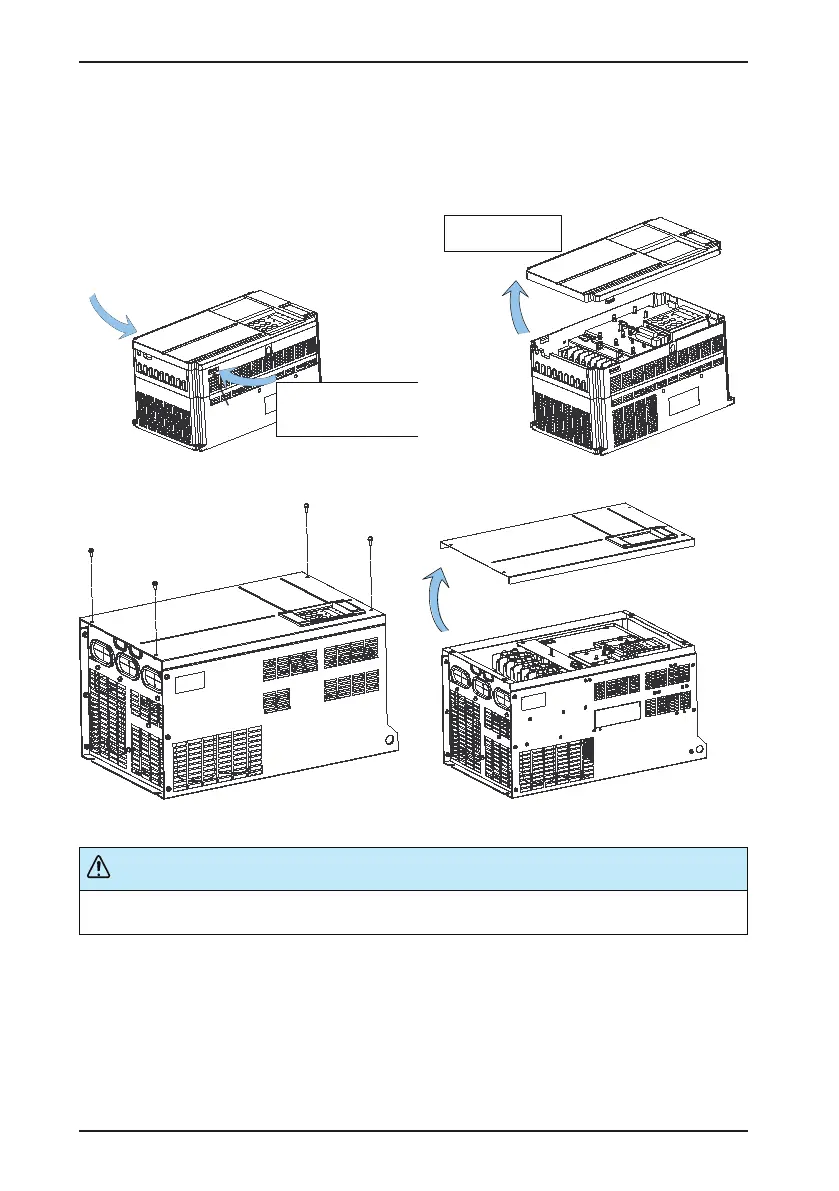

Figure 3-10 Removal of the front cover of the CS200 (plastic housing)
Hook slot
1. Press inward symmetrically
to disconnect the hook from
the hook slot.
2. Catch the edge of
the cover and lift it.
Figure 3-11 Removel of the front cover of the CS200 (sheet metal housing)
1. Loosen the four screws.
2. Remove the cover
toward you.
WARNING
Be careful when removing the front cover of the AC drive. Falling off of the cover may cause damage to the AC drive or
personal injury.

Inovance CS200-4T75GB Specifications

General

Model	CS200-4T75GB
Type	DC Drive
Protection Level	IP20
Cooling Method	Forced air cooling
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
