Inovance CS200-4T75GB User Manual

Chapter 3 Mechanical and Electrical Installation
- 23 -
The CS200 series AC drive dissipates heat from the bottom to the top. When multiple AC drives are required to
work together, install them side by side.
For the application of installing multiple AC drives, if one row of the AC drives need to be installed above another
row, install an insulation guide plate to prevent the AC drives in the lower row from heating those in the upper row
and causing faults.

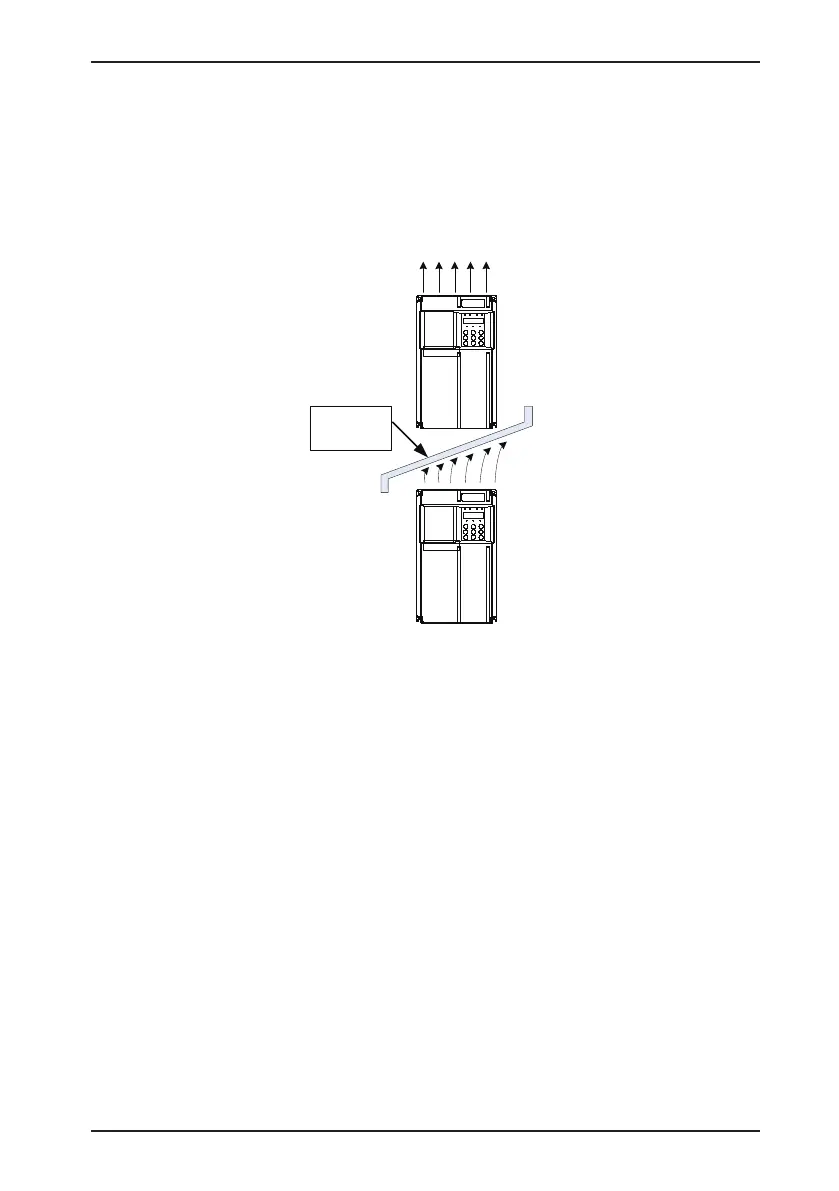

Figure 3-2 Installation of the insulation guide plate
Insulation
guide plate
CS200
CS200

Inovance CS200-4T75GB Specifications

General

Model	CS200-4T75GB
Type	DC Drive
Protection Level	IP20
Cooling Method	Forced air cooling
Protection Features	Overcurrent, overvoltage, undervoltage, short circuit
Storage Temperature	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
