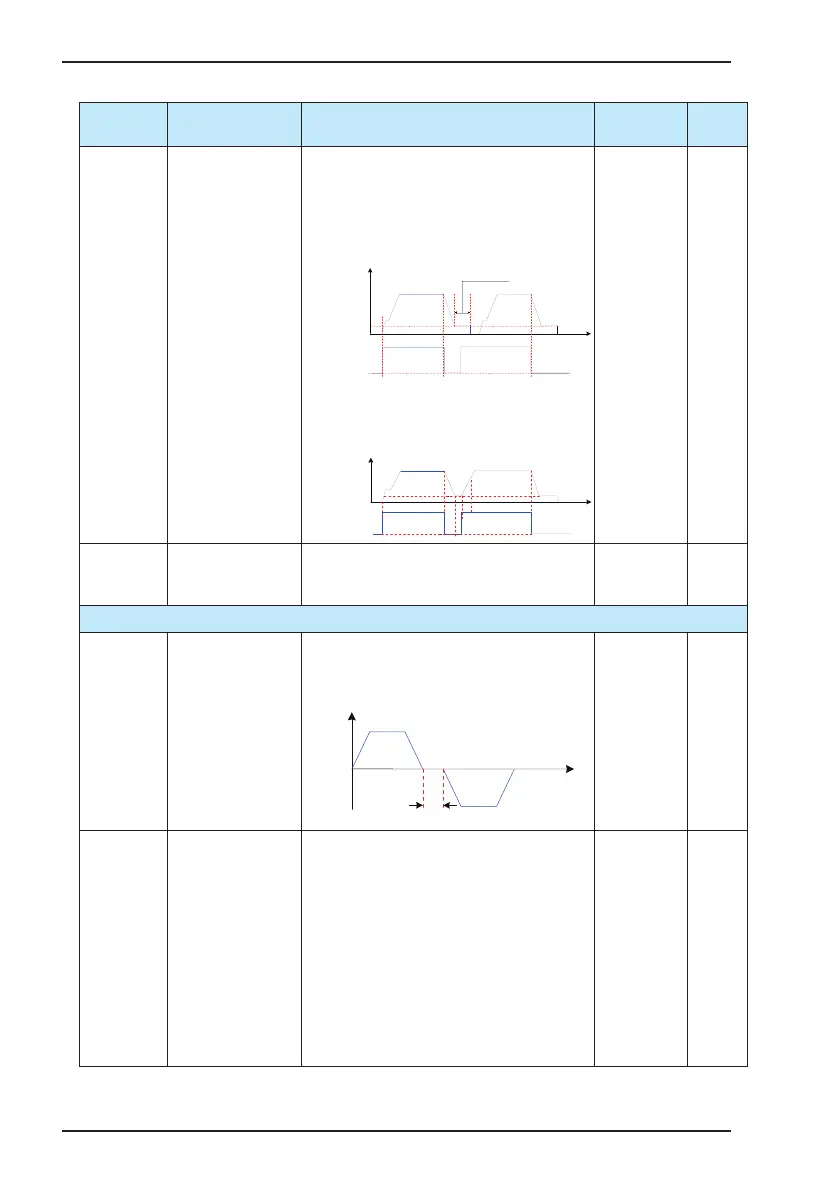

Chapter 5 Function Code Table
- 66 -
Function
Code
Parameter Name Function Description Setting Range Default
b6.12
Restart during braking 0: Restart not allowed during braking
The restart command is inactive if the brake starts
to apply in the process of stop. The AC drive can
receive the RUN command only after the brake
applies completely and the AC drive stops output.
Output
frequency
RUN
command
Braking process
(brake apply time b6.06)
Brake apply
frequency (b6.06)
1: Restart allowed during braking
The AC drive can receive the RUN command even
if the brake starts to apply.
Output
frequency
RUN command
Brake apply
frequency b6.06
0, 1 0
b6.13 Restart delay time Every time the AC drive stops, the AC drive can
restart after the delay set in this parameter. For
details, see the description of b6.09.
0.0s to 15.0s 0.3s
Group b7: Construction Elevator Logic Parameters
b7.00 Forward/Reverse run
dead-zone time
It is used to set the waiting time of compulsory stop
at transition of forward RUN and reverse RUN of
the AC drive.
Output
frequency
Forward run
Reverse runDead-zone time
Running time
0.0s to 5.0s 3.0s
b7.01 Upward and
downward logic
separation selection
It is used to select the multi-speed and brake
time sequence parameters for the upward and
downward running.
0: Use the same multi-speed parameters (b5.00 to
b5.03) and brake time sequence parameters (b6.02
to b6.06) for both upward and downward running.
1: Use the multi-speed parameters (b5.00 to
b5.03) and brake time sequence parameters
(b6.02 to b6.06) for upward running; use the multi-
speed parameters (b5.04 to b5.07) and brake
time sequence parameters (b7.02 to b7.06) for
downward running.
0, 1 1
