Inovance IMC30-6G Series User Manual

- 14 -
3 Hardware Connection
3 Hardware Connection

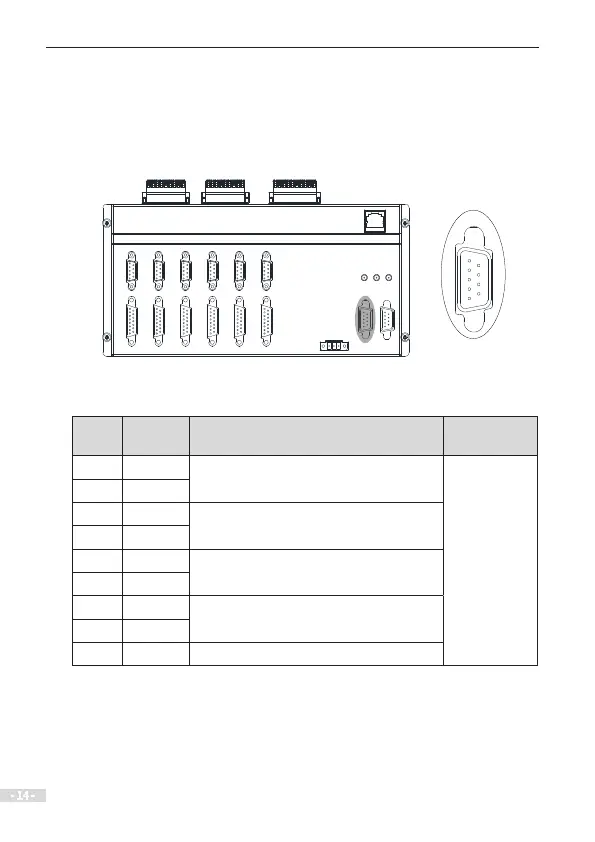

3.1 Description and Wiring of High-Speed Position Comparison
Output Interface
CMP
5
4
3
2
1
9
8
7
6
Table 3-1 De󶍾nition of high-speed position comparison output interface
Pin Signal Description
Electrical
Speci󶍾cations
1 CMP_0+
Position comparison output channel 0,
twisted pair for this di󶍽erential signal
RS422
di󶍽erential
output
6 CMP_0-
2 CMP_1+
Position comparison output channel 1,
twisted pair for this di󶍽erential signal
7 CMP_1-
3 CMP_2+
Position comparison output channel 2,
twisted pair for this di󶍽erential signal
8 CMP_2-
4 CMP_3+
Position comparison output channel 3,
twisted pair for this di󶍽erential signal
9 CMP_3-
5 DGND Digital ground/Di󶍽erential reference ground
