Inovance IMC30-6G Series User Manual

- 21 -
3 Hardware Connection

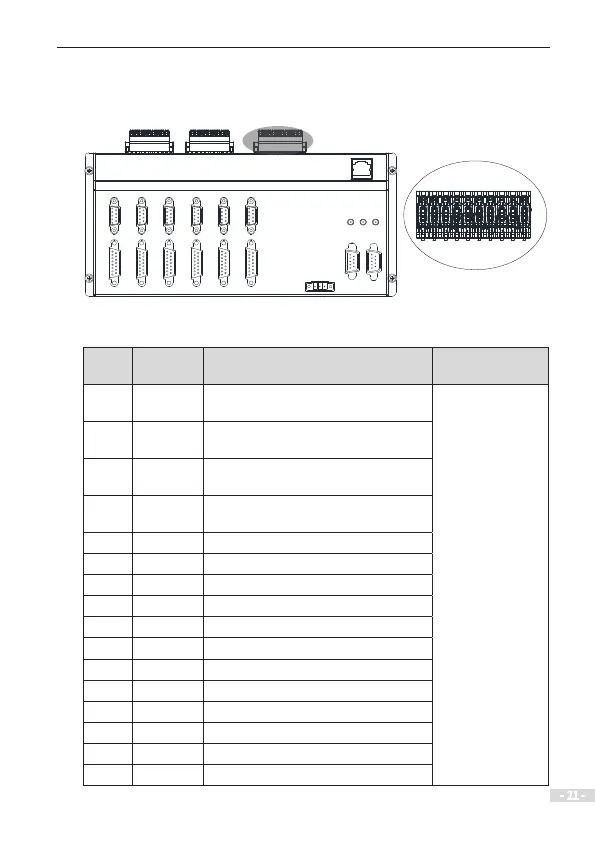

3.5 Description and Wiring of General Output/Low-Speed Position
Comparison Output Interface
EX_O
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Table 3-5 De󶍾nition of general output interface
Pin Signal Description
Electrical
Speci󶍾cations
1 EX-O0
General output 0 /Low-speed position
comparison output channel 0
Optocoupler
output, isolation,
equivalent OC gate
2 EX-O1
General output 1 /Low-speed position
comparison output channel 1
3 EX-O2
General output 2 /Low-speed position
comparison output channel 2
4 EX-O3
General output 3 /Low-speed position
comparison output channel 3
5 EX-O4 General output 4
6 EX-O5 General output 5
7 EX-O6 General output 6
8 EX-O7 General output 7
9 EX-O8 General output 8
10 EX-O9 General output 9
11 EX-O10 General output 10
12 EX-O11 General output 11
13 EX-O12 General output 12
14 EX-O13 General output 13
15 EX-O14 General output 14
16 EX-O15 General output 15
