Inovance MD290T45G/55P User Manual

8. Peripherals and Options
- 257 -
8
8.5 Through-hole Mounting Bracket

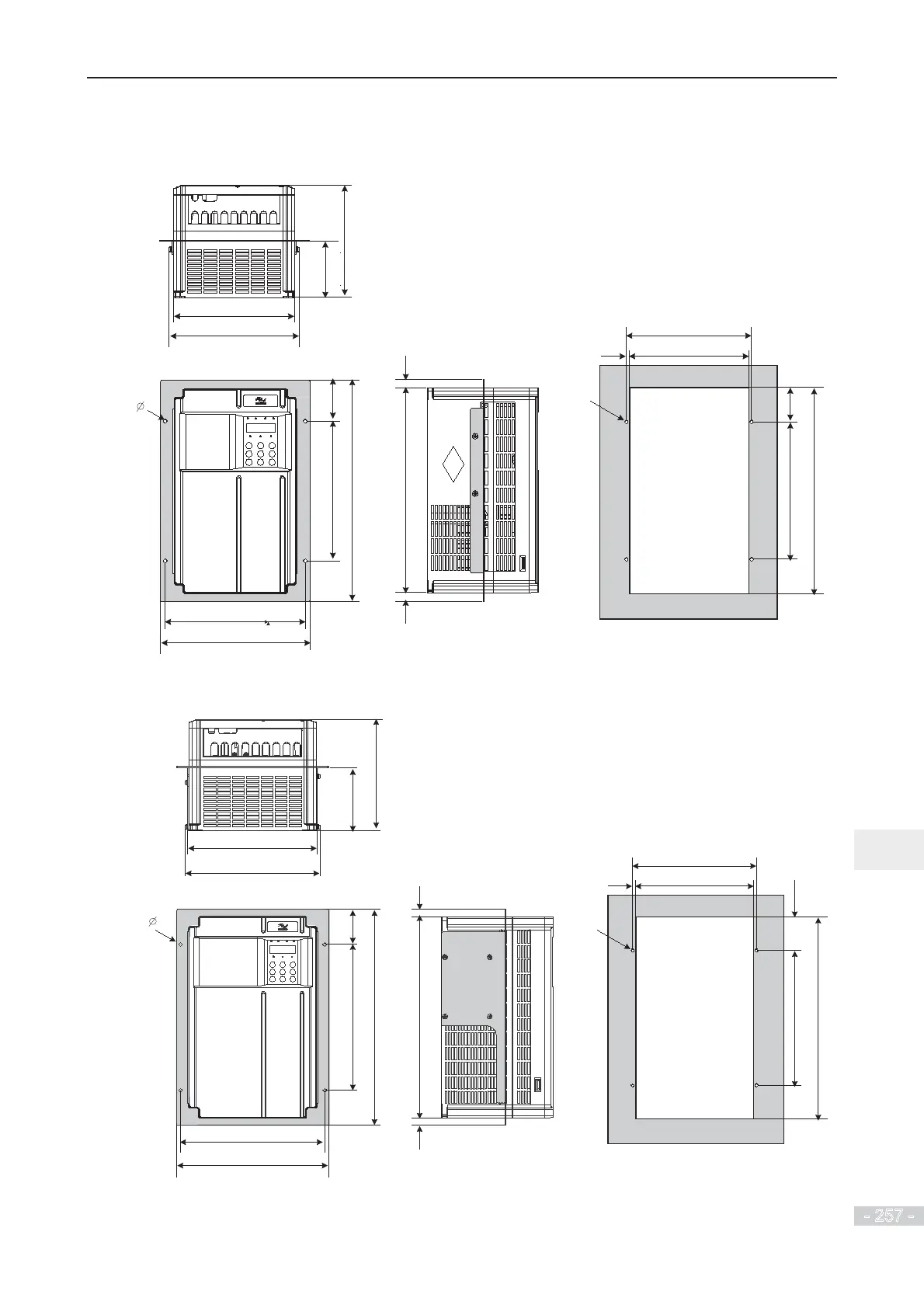

Figure 8-1 Bracket dimensions and hole size of MD290T18.5G/22P to MD290T22G/30P (unit: mm)
350
210
192
380
260
96.5
4- 6
70240
15
243
227
15
243
60
232
360 240
4-M5 screw
5.5
Figure 8-2 Bracket dimensions and hole size of MD290T30G/37P to MD290T37G/45P (unit: mm)
15
220
400
70
290
430
255
267
283
300
125
15
4-
7
283
56.5
270
403 290
4-M6 screw
6.5
