Inovance MD380T5.5GB User Manual

Mechanical and Electrical Installation MD380 User Manual
- 30 -

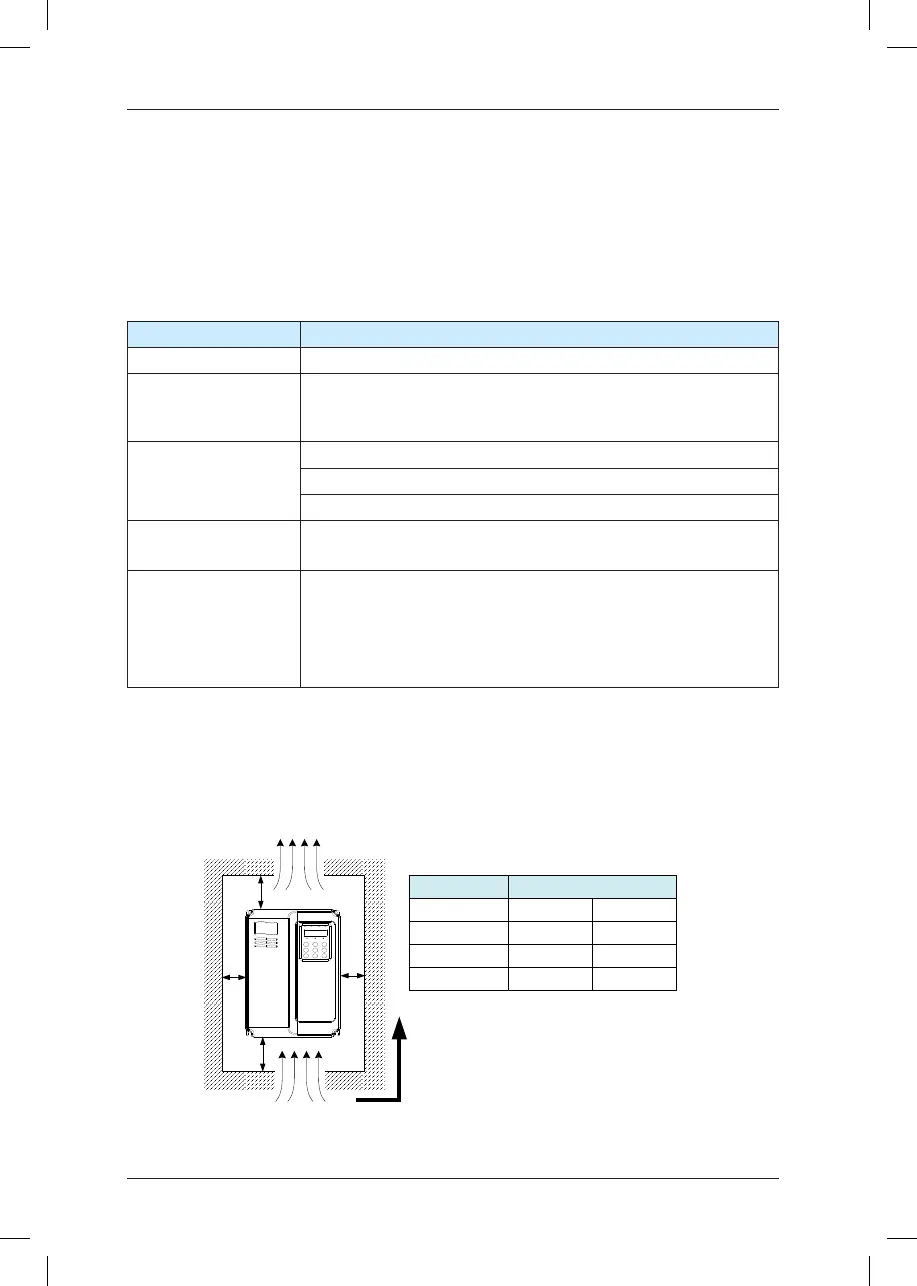

Chapter 3 Mechanical and Electrical Installation
3.1 Mechanical Installation
3.1.1 Installation Environment Requirements
Item Requirements
Ambient temperature
-10°C to +50°C
Heat dissipation
Install the AC drive on the surface of an incombustible object, and
ensure that there is sufcient space around for heat dissipation.
Install the AC drive vertically on the support using screws.
Mounting location
Free from direct sunlight, high humidity and condensation
Free from corrosive, explosive and combustible gas
Free from oil dirt, dust and metal powder
Vibration
Less than 0.6 g
Far away from the punching machine or the like
Protective enclosure
The MD380 series AC drives of plastic housing are the whole unit
built-in products operated through remote control and need to be
installed in the nal system.The nal system must have the required
reproof cover, electrical protective cover and mechanical protective
cover, and satisfy the regional laws & regulations and related IEC
requirements.
3.1.2 Installation Clearance Requirements
The clearance that needs to be reserved varies with the power class of the MD380, as
shown in the following gure.
Figure 3-1 Clearance around the MD380 for installation
The AC drive shall be installed vertically upward .
B
B
AA
MD380
Hot air
Cold air
0.4 − 15 kW A ≥ 10 mm B ≥ 100 mm
18.5 − 22 kW A ≥ 10 mm B ≥ 200 mm
22 − 37 kW A ≥ 50 mm B ≥ 200 mm
37 − 630 kW A ≥ 50 mm B ≥ 300 mm
Installation clearance requirements on
the MD380 series AC drives of different
power classes
Power Class Clearance Requirements
