FP-02 is used to determine whether group A and group U are displayed.
Function
Code
Parameter Name Setting Range Default
FP-02
Whether group A and
group U are displayed
Unit's digit (group U display selection)
11
0: Not display
1: Display
Ten's digit (group A display selection)
0: Not display
1: Display
4.4 Quick View of Function Codes
The MD380 provides two quick modes of viewing the required function codes.
1) You can dene a maximum of 30 function codes into group FE.
2) The MD380 automatically list the modied function codes.
In this case, the operation panel provides three viewing modes: base mode, user-dened
mode and user-modied mode, as listed in the following table.
Function Code Display Mode Display
Base mode
User-dened mode
User-modied mode
You can perform switchover between the three function code display modes by
pressing
QUICK
. The method of viewing and modifying function codes in each mode is the
same as the method of operating the operation panel described above.

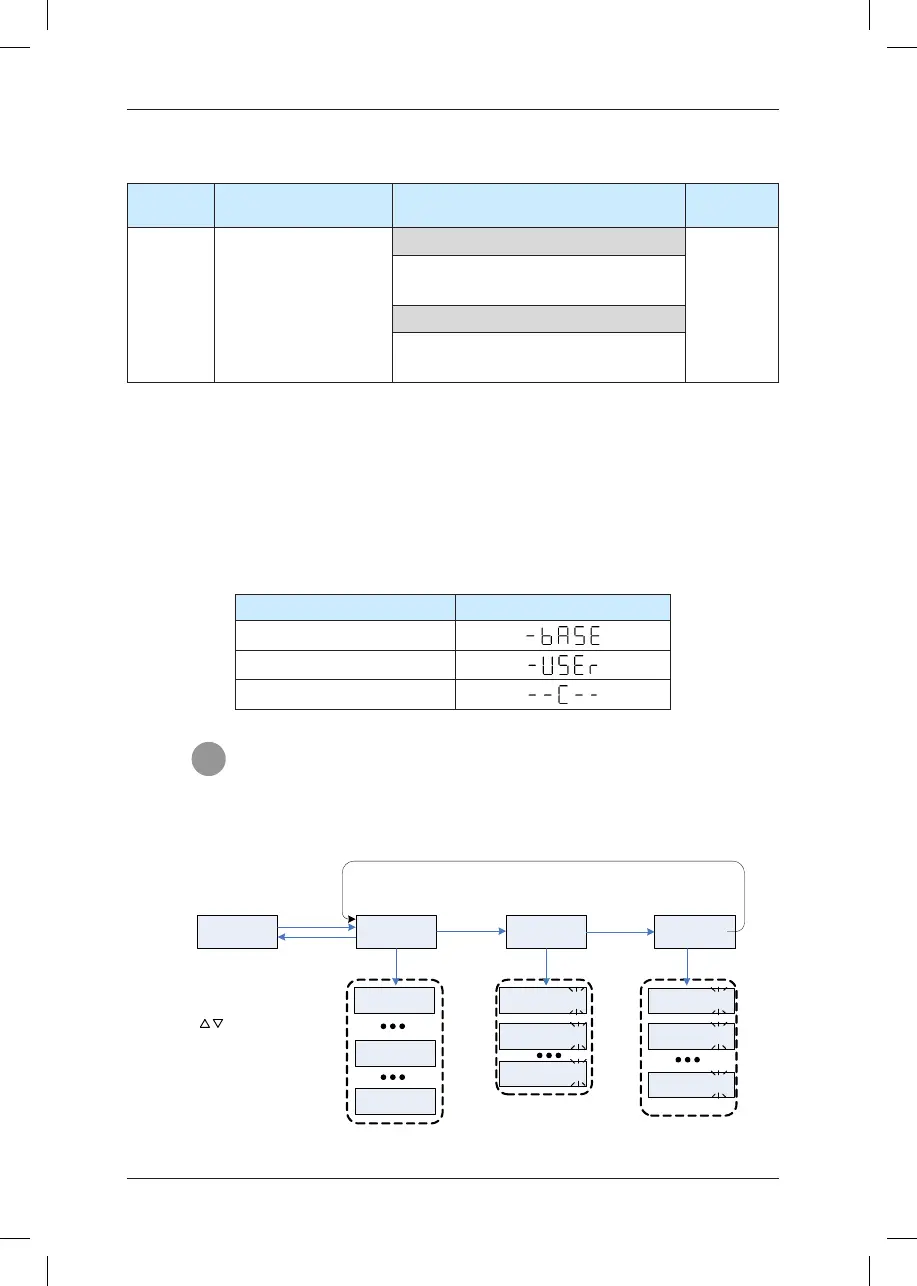

Figure 4-5 Switchover between three function code display modes
50.00
Status parameters
(Default display)
-bASE
Base mode
(All function codes)
-USEr
User-defined mode
(Group FE )
--C--
User-modified mode
(Modified function codes)
QUICK
QUICK QUICK
QUICK
FP-03 = x1 FP-03 = 1x
F0
ENTER
Level I menu
uF0.03
uF0.07
cF0.01
cF0.03
U3
ENTER ENTER
cA9.10
uF5.04
A0
No key
operation within
2 seconds
Press / to view
function codes in turn in
the corresponding range
Press ENTER to view the
parameter value .
The right side is only
example of function codes .
.
