MultiWave Control System Installation Guide

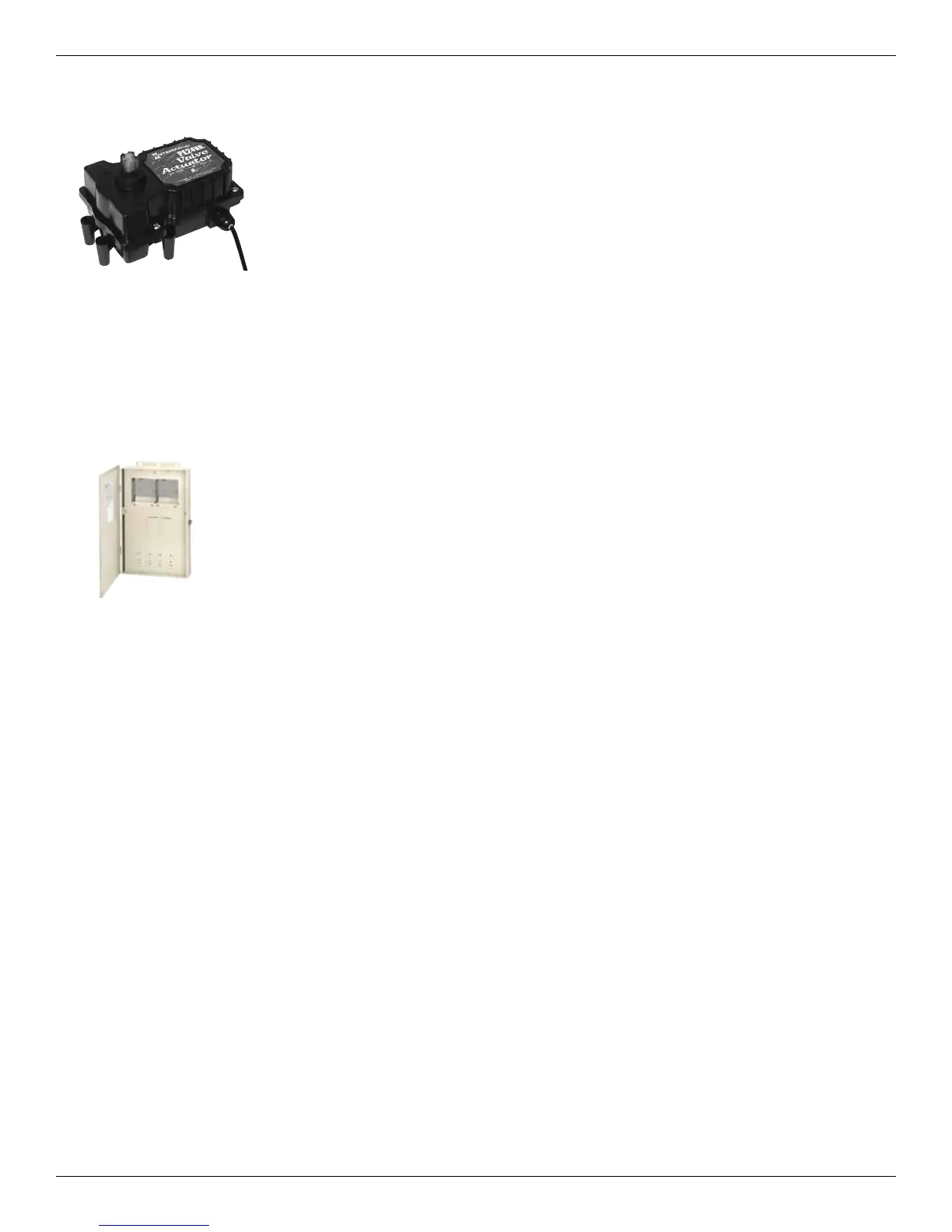

(PE24VA) 24-Volt Valve Actuator (Optional)
Designed with quality in mind, Intermatic’s 24-volt valve actuators provide
reliable control of 2-way and 3-way diverter valves for pool/spa combinations
and water features. The water ow can be altered for specic applications
through the adjustable cam, which rotates diverter valves to multiple degree
settings. The cam settings can be easily adjusted by simply removing the lid.
These valve actuators are compatible with all pool/spa valves currently offered in
the industry and will retrot into all pool/spa control systems.
• 24 VAC Input Voltage
• Automates compatible diverter valves for pool/
spa combos
• Adjustable cam rotates diverter valves to
multiple degree settings
• Designed to operate most 2-way and 3-way
diverter valves
• Shipping Weight - 3 lbs. (1.4 kg)
• Agency Approval - CSA/C-US
(PE30000) Load Center (Optional)
The PE30000 load center provides a safe and efcient environment for the control
components of MultiWave Pool/Spa Series Kits which include expansion module
and/or relay modules.
The PE30000 Series panel includes an eight-position 80 Amp breaker base, two
mechanism slots, and four décor knockouts for GFCIs and switches.
The panel provides a low voltage raceway for low voltage control lines (i.e. actuators,
sensors, etc…) and a convenient side knockout for an outdoor receptacle.
The panel is rated for indoor/outdoor use and is suitable for pool equipment control and for direct
connection to a wet-niche or no-niche luminaire.
