MultiWave Control System Installation Guide

Chapter 5:

Basic Wiring — 240V Cleaner/Lights/Actuators

Cleaner

Neutral Bus

2-Pole Breaker

Hot Line #1

Hot Line #2

Hot Line #1

240 VAC

Cleaner Pump

Receiver

Power

Supply

120V

240V

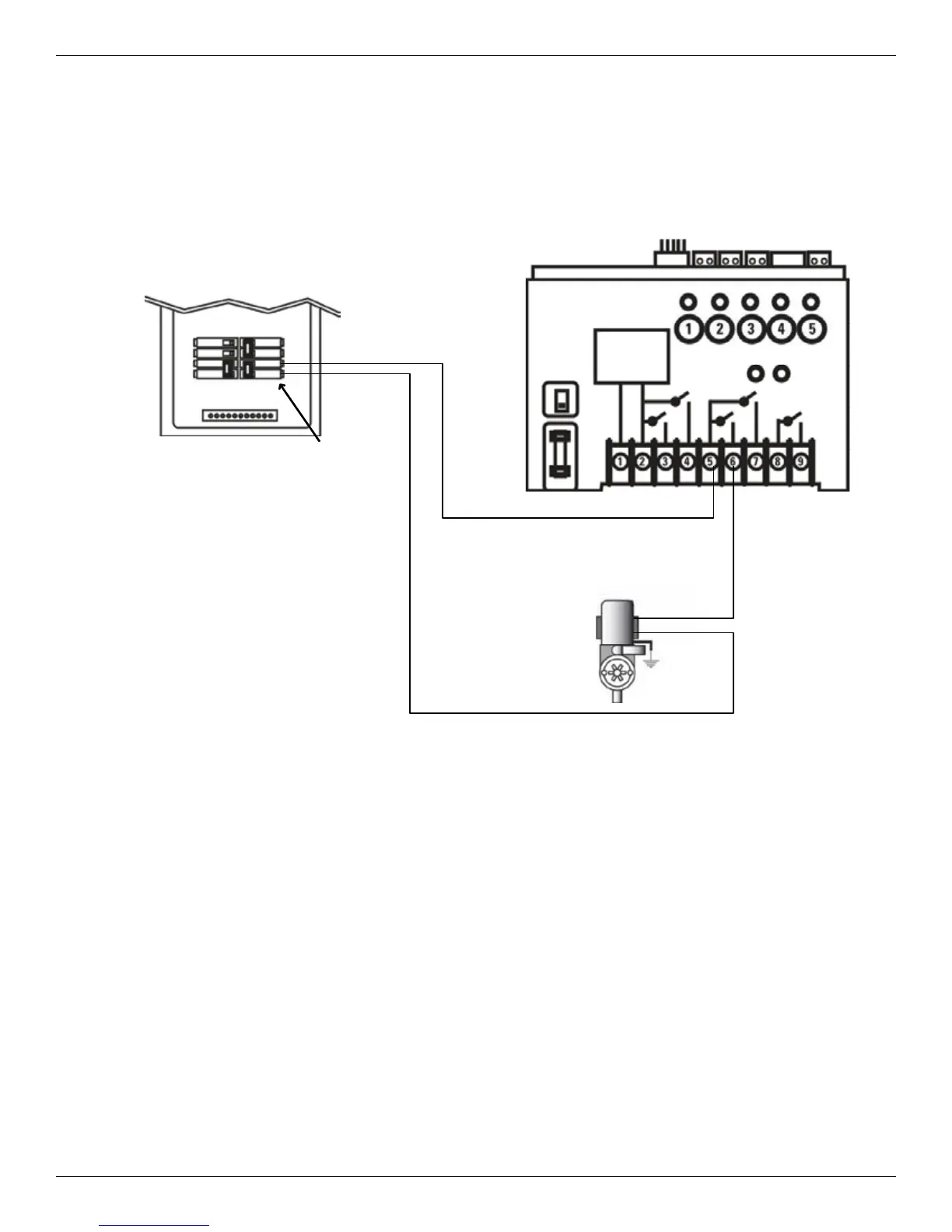

Figure 5-1. Wiring Circuit #3 to a 240 VAC Cleaner Pump for PE653RC.

Two-Year Limited Warranty3
Garantie Limitée Deux Ans4
- Table of Contents5
Important Safety and Service Information7
Informations Importantes Sur la Sécurité Et L'entretien8
Chapter 1: Overview9
Multiwave Components10
- (PE953) Controller10
- (PE653) Receiver10
- (P5043ME) Expansion Module (Optional)10
- (PA122) Water Temperature Sensor11
- (178PA28A) Freeze (Air Temperature) Sensor11
- (PA122) Solar (Air Temperature) Sensor (Optional)11
- (PE24VA) 24-Volt Valve Actuator (Optional)12
- (PE30000) Load Center (Optional)12
Chapter 2: Mounting13
- Mounting the PE653RC System13
- Mounting the PE30000 Load Center14
- Mounting the PE653 Receiver on the Load Center15
Chapter 3 Installing - Ratings, 120V/240V Wiring, Power In/Out16
- Ratings16
- 120V Wiring Applications17
- 240V Wiring Applications19
- Power To/From PE653RC19
- Connecting a P5043ME Expansion Module Communication Cable to Receiver20
- Power To/From PE653RC with P5043ME21
Chapter 422
Filter Pump Installations22
Single Speed Pumps22
- 1-Speed Pump Terminal/Circuit Connections for PE653RC22
- 1-Speed Pump Terminal/Circuit Connections for PE653RC with P5043ME24
2-Speed Pumps26
- 2-Speed Pump Terminal/Circuit Connections for PE653RC26
- 2-Speed Pump Terminal/Circuit Connections for PE653RC with P5043ME28
Variable Speed Pumps30
- Connecting a Pentair Variable Speed Pump Communication Cable to Receiver30
- External Variable Speed Pump Hookup31
Basic Wiring - 240V Cleaner/Lights/Actuators34
Chapter 534
Cleaner34
Lights35
Pool/Spa Actuators37
Chapter 6: Heaters38
Heater on PE65338
Or 2 Heaters on P5043ME39
Heater Connection40
- Connection for Jandy Heaters40
- Connection for Raypak Heaters41
- Connection for Hayward Heaters41
- Connection for Pentair Heaters42
- Connection for Sta-Rite/Pentair ® Heater with DDTC43
Chapter 744
Blower/Chlorinator/Sensors44
PE653RC with Blower44
PE653RC with Cleaner Pump or Blower45
PE653RC and P5043ME with Blower46
Chlorinator47
- Connecting Autopilot Salt Chlorine Generator Control Cable to Receiver47
Sensors48
- Installing the Water Temperature Sensor48
- Installing the Freeze (Air Temperature) Sensor48
- Installing the Solar (Air Temperature) Sensor48
