43 Heaters
Connection for Sta-Rite/Pentair
®
Heater with DDTC
1. Remove power.
2. Connect two #14 gauge wires minimum, with an
insulation rating of 105°C, to
terminals 8 and 9
on
the PE653 (or to the Heater #1 or Heater #2 hookup
when using P5043ME).
3. Route the wires through the low voltage knockout
in the PE653 (or P5043ME) enclosure.
4. Make sure that the Low Voltage Divider is in place.
5. Remove the heater service door.
6. Locate the DDTC circuit board. Refer to the
manufacturer’s instructions for location.
7. Connect the wire lead from PE653 terminal 8 (or
P5043ME hookup) to the “COM” terminal on the
DDTC board.
8. Connect the wire lead from PE653 terminal 9 (or
P5043ME hookup) to the “POOL” terminal on the
DDTC board.
9. Replace service door.
10. Re-apply power.
11. With the “POWER” and “PRESSURE” lights lit on the front panel, depress the remote button
on the front display panel of the DDTC. The “REMOTE” light will come on and the remote
system now has control.

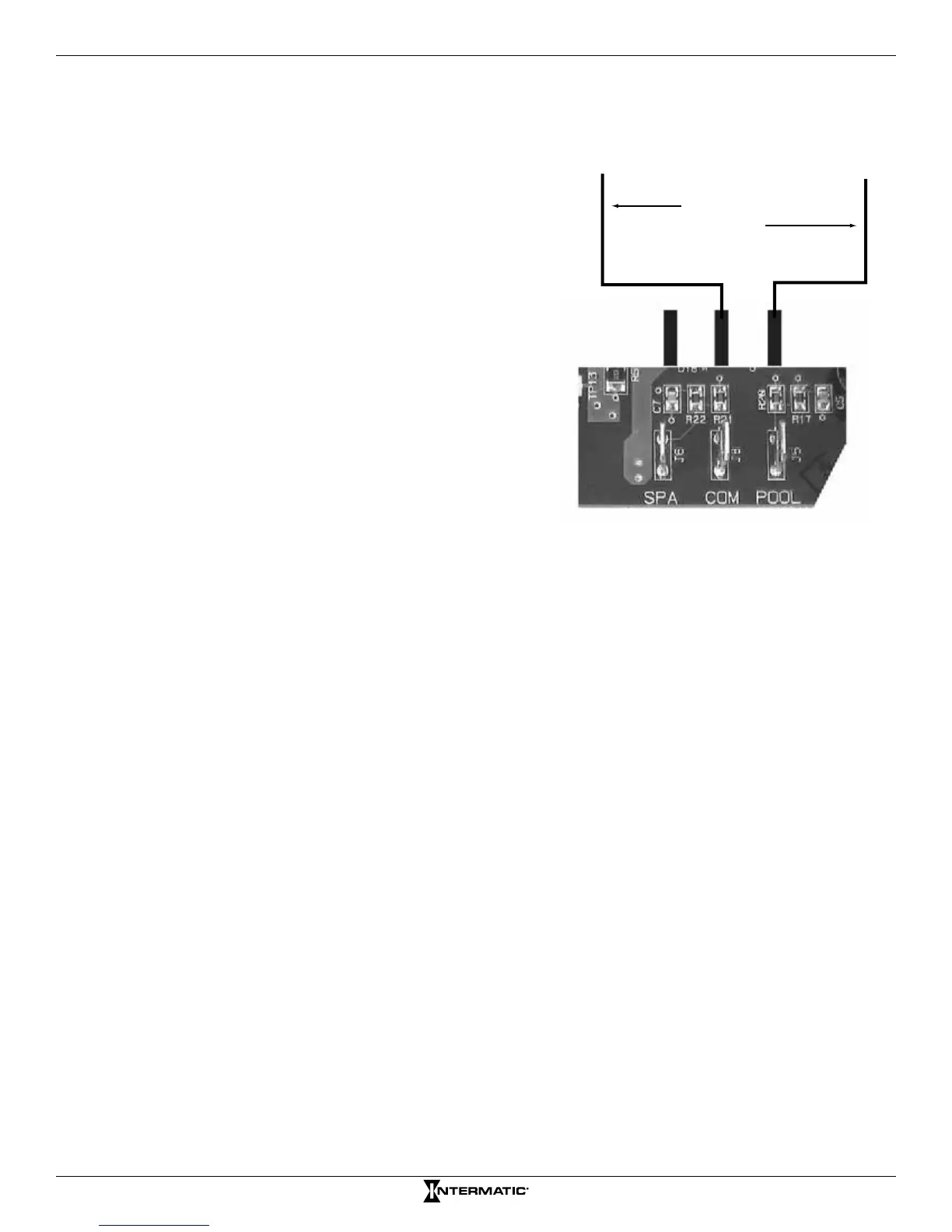

Figure 6-7. DDTC Control Board.
Wires from
Receiver (or
Expansion
Module)
To Next Page
