Intermatic MultiWave User Manual

www.intermatic.com
22
MultiWave Control System Installation Guide
Chapter 4:
Filter Pump Installations
This chapter includes diagrams for systems with 1-speed, 2-speed and variable speed pumps.
Single Speed Pumps
1-Speed Pump Terminal/Circuit Connections for PE653RC
123 4 5 6 7 8 9
1 2 3 4 5
Manual Circuit
OperationButtons
(Controls corresponding
numbered circuits below)
Circuit
1
Circuit
2
Circuit
3
Circuit
4
Circuit
5
Power In
120or240 VAC
L1 120
VACWire
L2
120V
240V

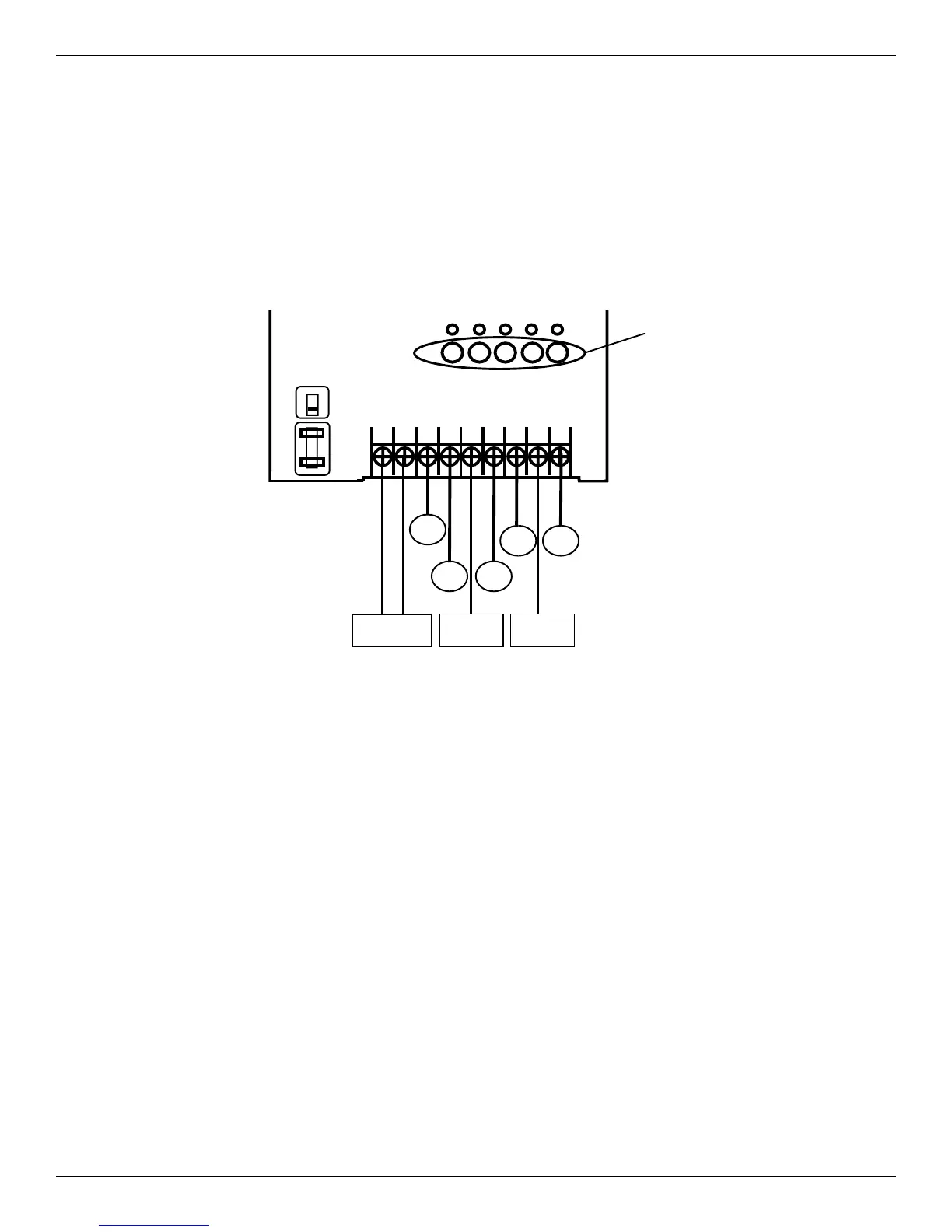

Figure 4-1. PE653 Receiver power terminal identification.
Terminals 1, 2 and 5 – Power In
Terminal 3, Circuit 1 – 120/240 VAC 1-Speed Pump*
Terminal 4, Circuit 2 – 120/240 VAC Blower
Terminal 6, Circuit 3 – 120/240 VAC Booster (Cleaner) Pump*
Terminal 7, Circuit 4 – 120 VAC Light with GFCI*
Terminal 8/9, Circuit 5 – Heater**
* To break both lines, use relay kit PE21RLY. Request document 158--01559.
** See Chapter 6.
