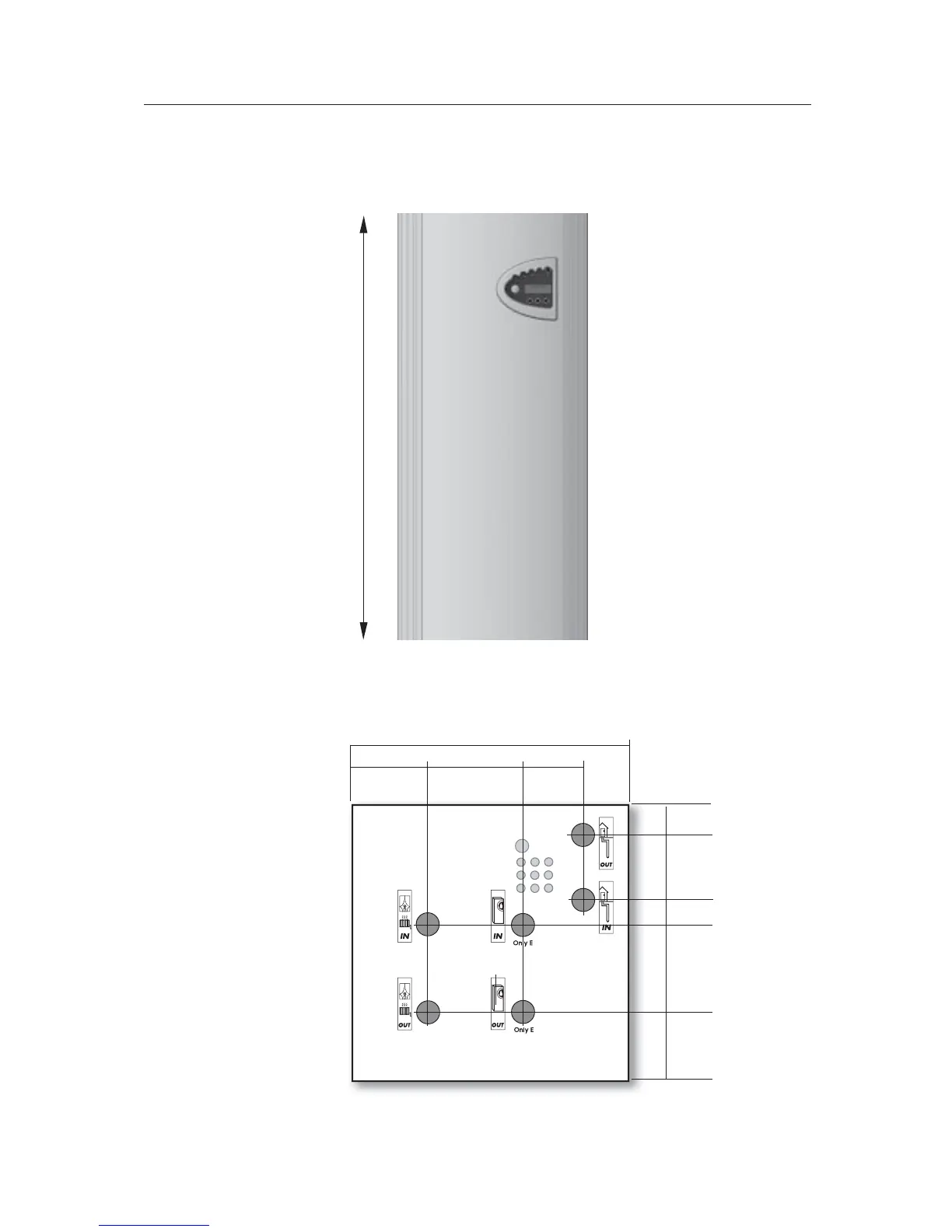

Dimensions and connections (models DE14-16)

(1) Return radiator

(2) Riser radiator

(3) Return electric water

heater (only E)

(4) Riser electric water

heater (only E)

(5) Heat transfer fluid out

(6) Heat transfer fluid in

(7) Electrical connections

(7)

Front

®®

®

®

®

(1)

(2)

(3)

(4)

(6)

(5)

248 385 513

596

571

495

317

121

1500 mm

(1525 mm incl. feet)

®®

®

380

®
