Technical information
Vent 402 – 6721815546 (2021/03)
27

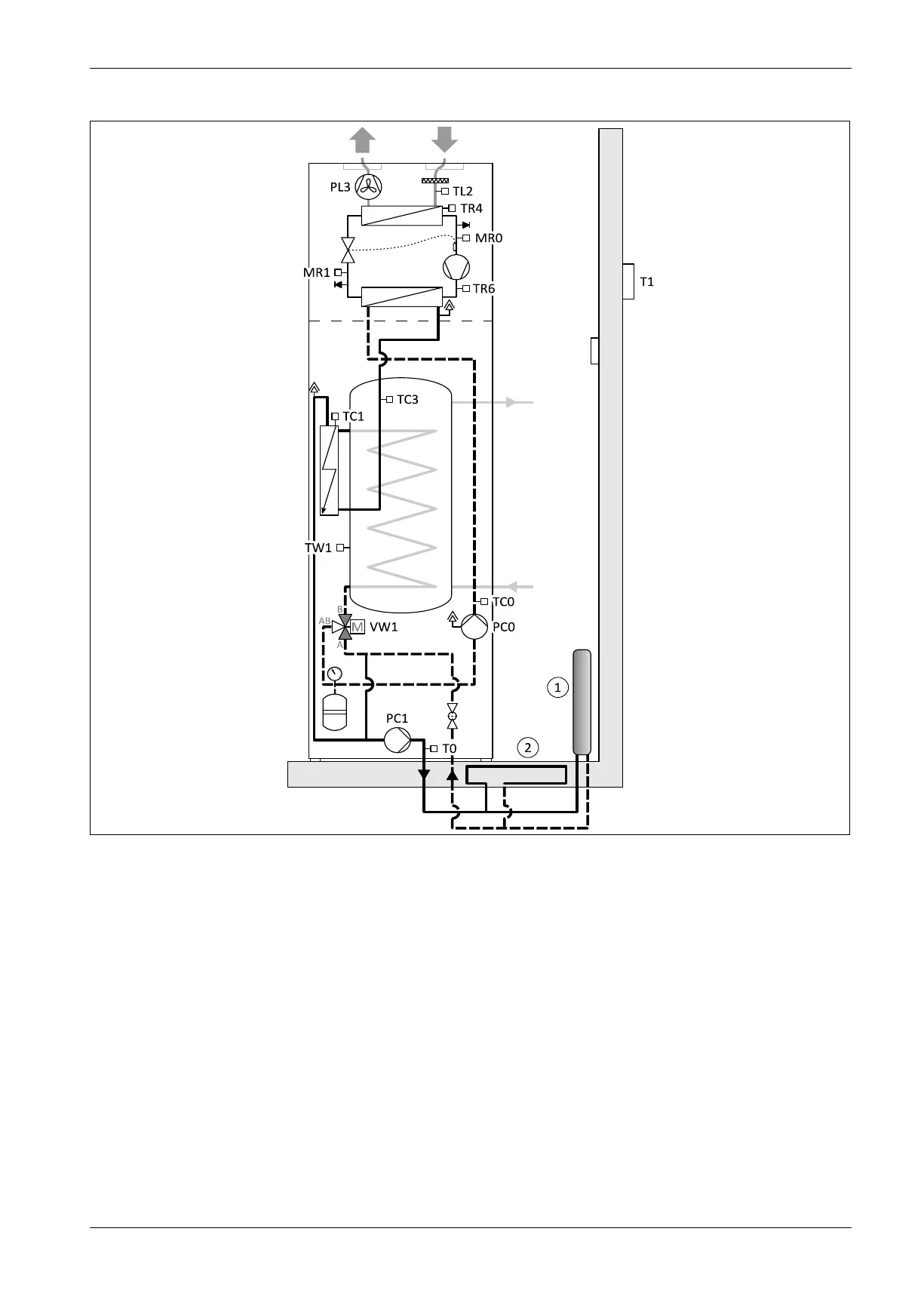

12.2 Principle overview
Fig. 36 Principle overview
[1] Radiators
[2] Underfloor heating
[MR0]Low pressure switch
[MR1]High pressure switch
[PC0] Primary circulation pump
[PC1] Heating circuit pump
[PL3] Fan
[RC100]Room sensor unit
[T0] System flow temperature sensor
[T1] Outdoor temperature sensor
[TC0] Condenser return temperature sensor
[TC1] Electrical heater flow temperature sensor
[TC3] Condenser flow temperature sensor
[TL2] Exhaust air temperature sensor
[TR4] Liquid line temperature sensor
[TR6] Hot gas temperature
[TW1]DHW temperature sensor
[VW1]Three-way valve heating / DHW
