S5 Workshop Manual Engine
Engine Cylinder Block

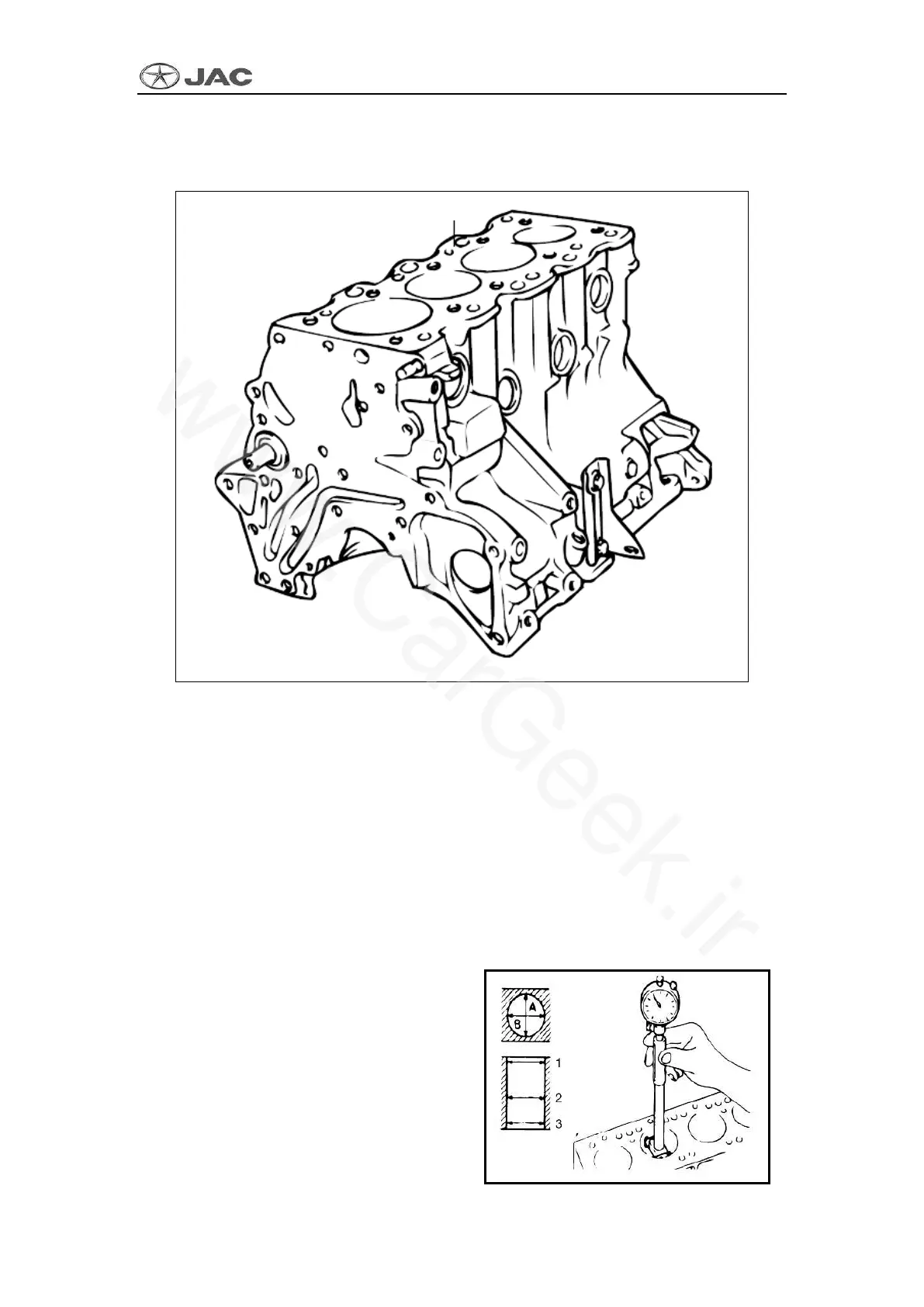

1. Component
2. Dismantling
Dismantle cylinder head, oil pump housing, timing belt, flywheel, piston and
crankshaft. For detailed information, please refer to relevant section.
3. Inspection:
1) Inspect whether cylinder body has scratch, rusting and corrosion. Meanwhile,
inspect whether there is crack or other defect. If there is any defect, replace cylinder
body.
2) Measure the bore on three shown height in A and B directions by using a cylinder
gauge.
Height 1: Position of the first piston ring at TDC (upper stop point).
Height 2: Intermediate of cylinder.
Height 3: Bottom of cylinder.
To Next Page
