S5 Workshop Manual Engine
EM-39
2) Install fuel supply pipe and injector
assembly onto the intake manifold.
Notes:
■ Make sure that there is no clash
between fuel injectors on the intake
manifold.
3) Install pressure stabilizing box support.
4) Connect fuel injector connector and
wire harness, and then install the cover.
5) Connect with vacuum hose.
Tightening Torque
Intake manifold fixing seat and cylinder body: 18 ～ 25 N•m
6) Connect PCV valve and brake boosting hose.
7) Install respirator hose
4. Intercooler

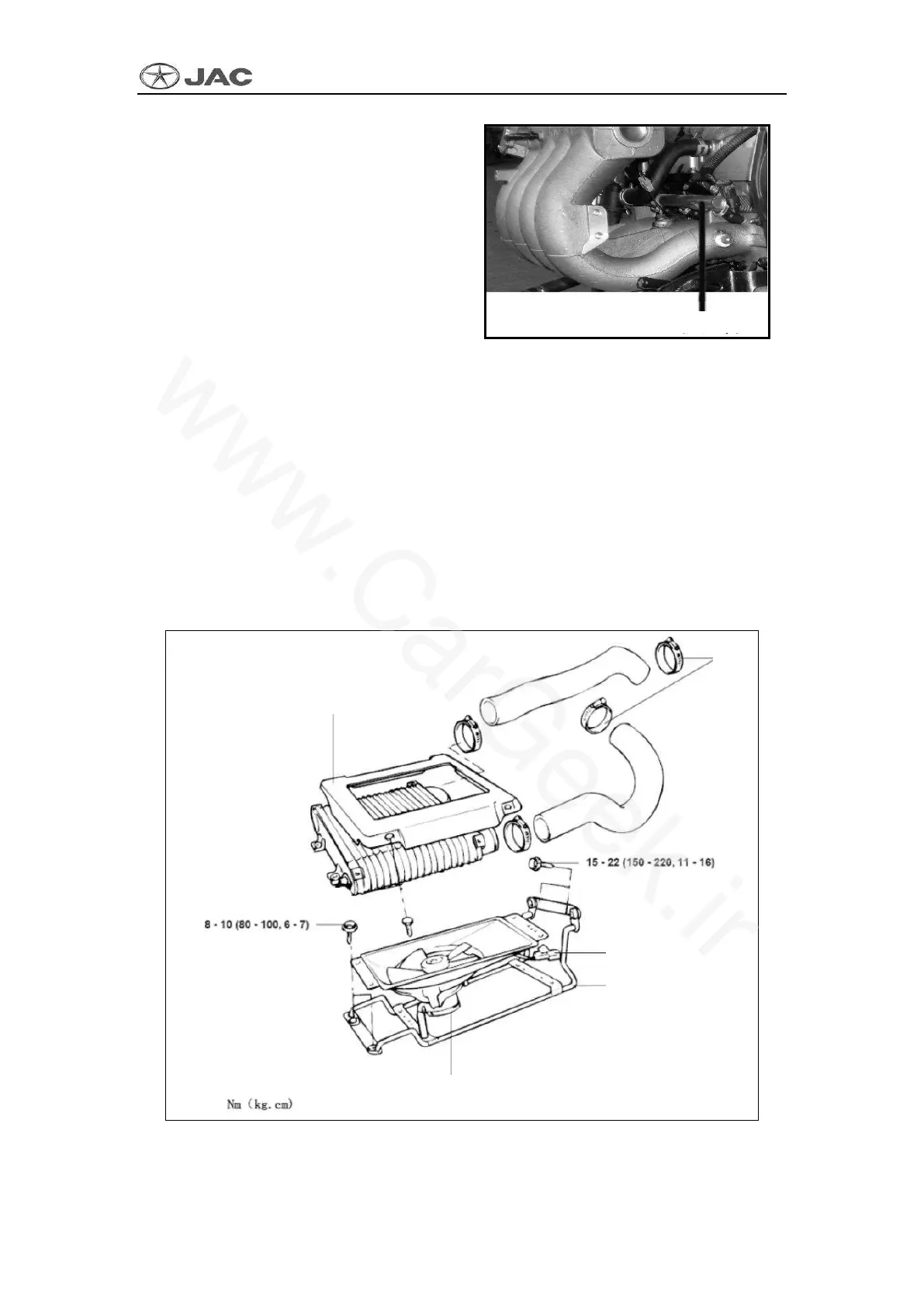

1. Component
EM059
Fuel supply pipe
Clip
Intercooler cover
Fan motor switch
Intercooler bracket
Fan motor assembly
Torque:
