S5 Workshop Manual Engine

EM-42

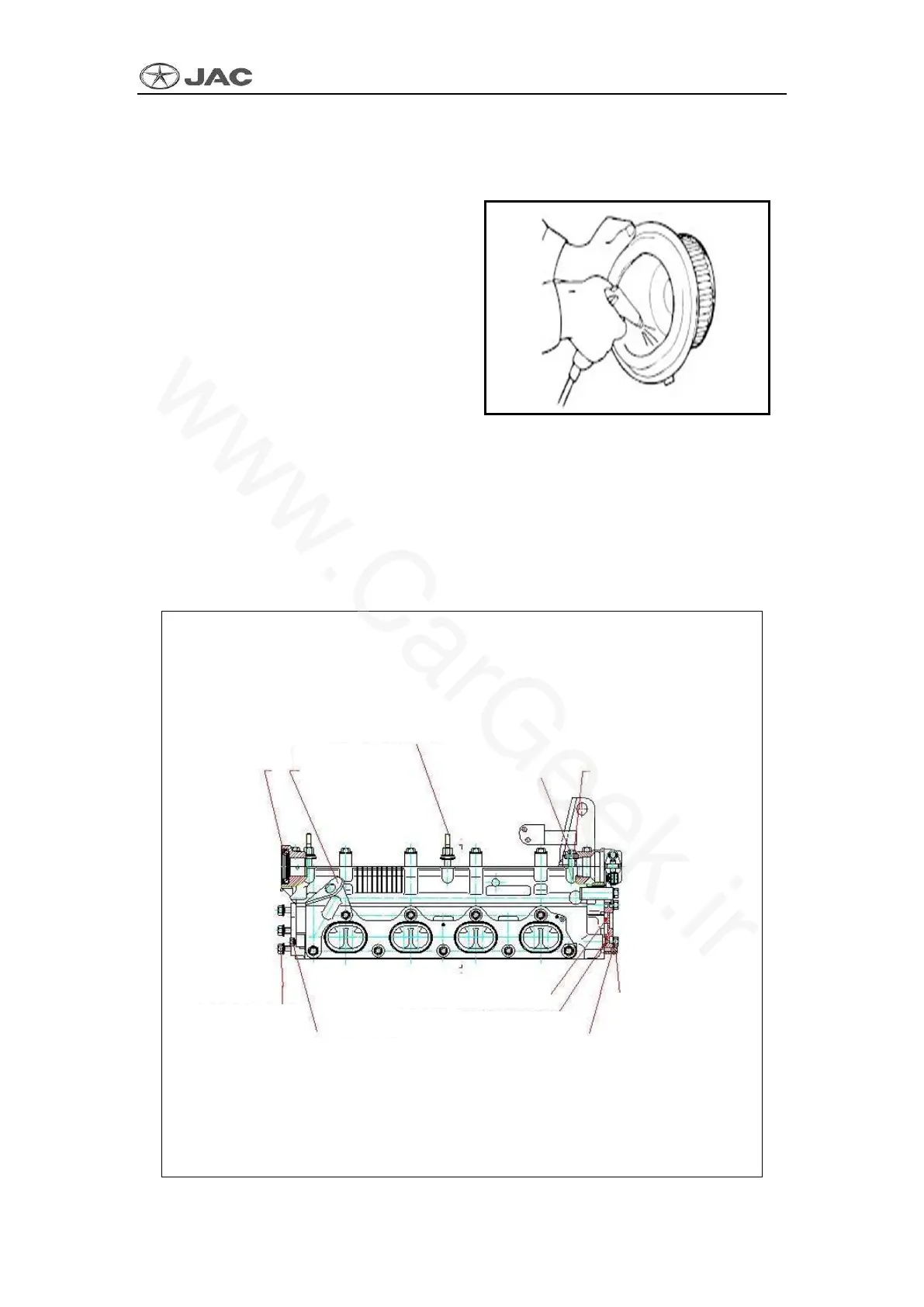

3) Inspect whether filter element is blocked, expanded or damaged. If the filter

element has slight block, remove dust and scrap by using compressed air blowing into

filter element.

4. Installation

Install air filter assembly according to the reverse order of dismantling.

Cylinder Head Cover Assembly

1. Cylinder Head

1. Component

EM064

Camshaft oil seal

Front lug

Intake connecting pipe bracket bolt assembly

Cylinder head

protective cover bolt

Cylinder head protective

cover bolt washer

Hex flange bolt

Fixing bolt of cylinder head

side cover plate

Cylinder head sides cover plate

Cylinder head sides cover plate sealing ring

Hex flange bolt

Mounting bolt of

water outlet pipe
