INSTALLING THE
VACUUM BREAKER
AND PLUMBING
LEVEL THE
DISHMACHINE
INSTALLING THE
DISHMACHINE

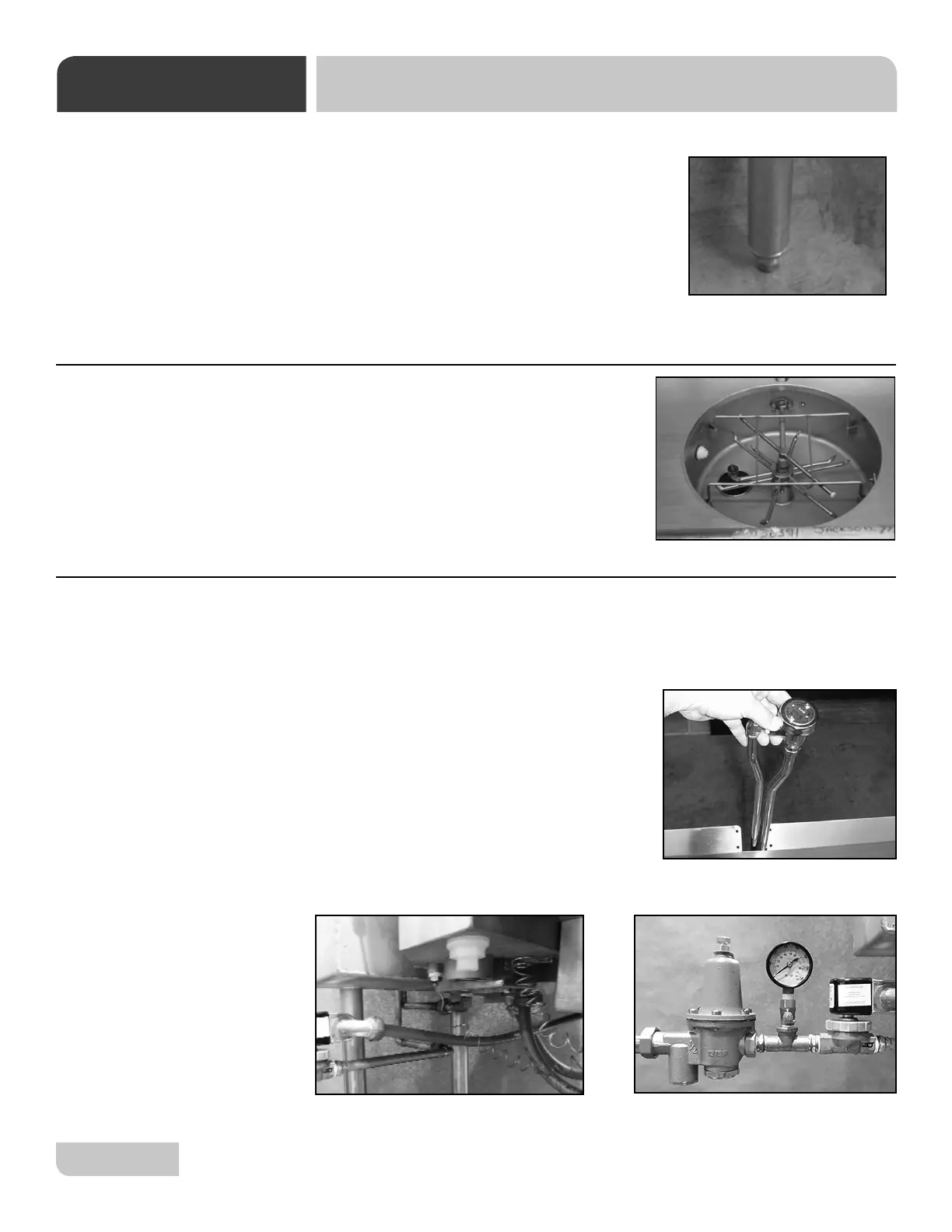

The dishmachine is designed to operate while be-
ing level. This is important to prevent any damage to
the machine during operation and to ensure the best
results when washing ware. The unit comes with
adjustable bullet feet (Fig. 5), which can be turned
using a pair of channel locks or by hand if the unit
can be raised safely. Ensure that the top of the tub is
level from side-to-side and from front-to-back before
making any connections.
With the machine base set in place, lift the ta-
ble (Fig. 6) (with proper fl ange cutout) over and
above machine so that vertical fl ange on table
cutout fi ts down inside of machine tub and hori-
zontal fl ange on machine tub fi ts up tight against
underside of the table.
Ease vacuum breaker piping (Fig. 7) supplied with the dishmachine down through the
square cutout in the backsplash of the table (directly behind the machine). Connect
vacuum breaker piping to machine. The top union connects to its matching half on
the bottom of the rinse booster tank (Fig.8). The bottom union of the piping connects
to an adapter pipe which, in turn connects to
the solenoid valve (Fig. 9). The arrows on the
solenoid valve indicate the direction of water fl ow
to the machine. Tighten both of the connections.
(Fig. 5)
(Fig. 6)
(Fig. 7)
(Fig. 8) (Fig. 9)
