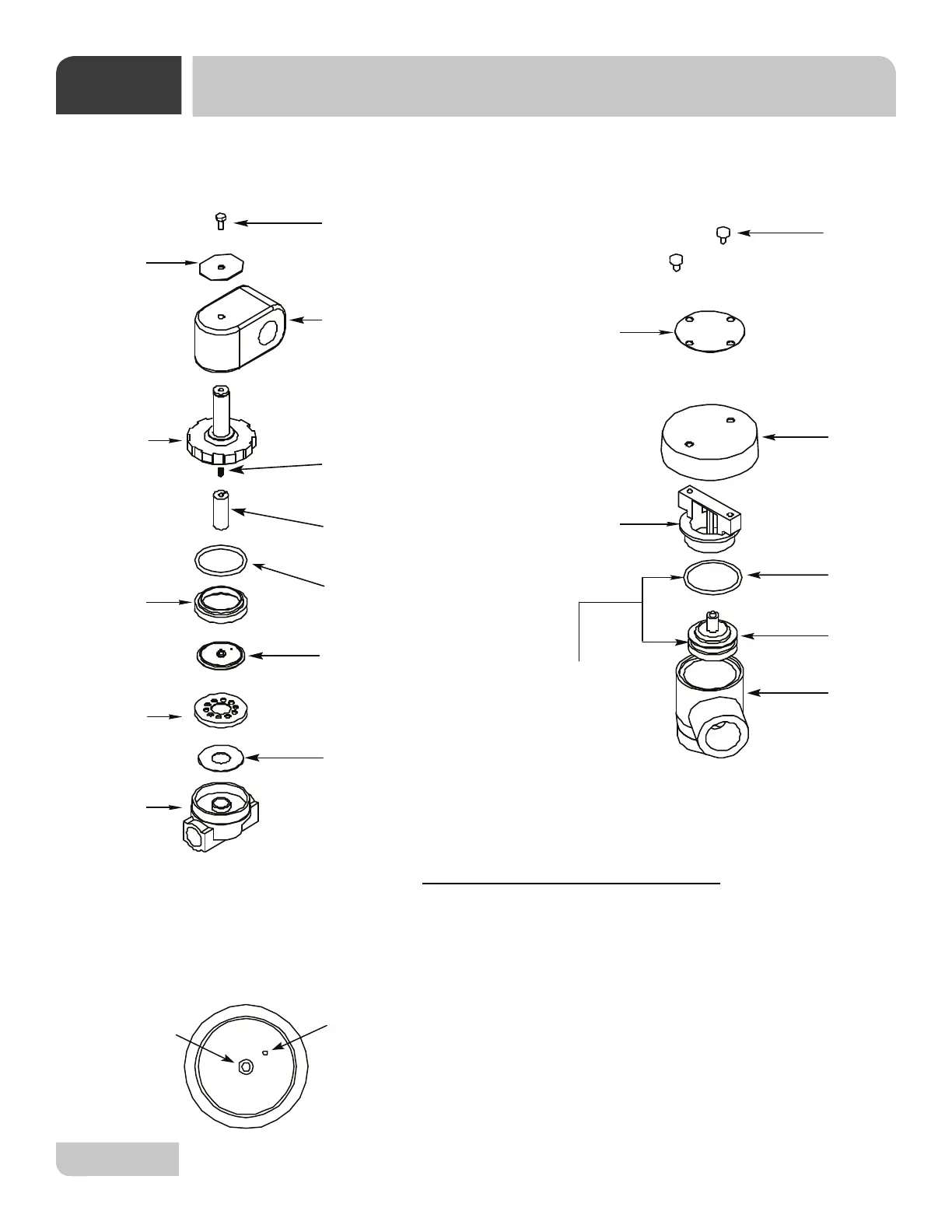

TO TAKE THE SOLENOID VALVE APART
DISASSEMBLE - These valves may be taken apart by unscrewing
the bonnet and the enclosing tube assembly from the valve body
assembly. After unscrewing, carefully lift off the bonnet and enclosing
tube assembly. Don’t drop the plunger. The o-ring seal and diaphragm
cartridge can now be lifted out.
Be careful not to damage the machined faces while the valve is apart.
TO REASSEMBLE - Place the diaphragm cartridge in the body with
the pilot port extension UP. Hold the plunger with the synthetic seat
against the pilot port. Make sure the o-ring is in place, then lower
the bonnet and enclosing tube assembly over the plunger. Screw the
bonnet assembly snugly down on the body assembly.
