Jackson 10 Series User Manual
4
of 1
of 1 rating
78 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
07610-002-41-09-F
49

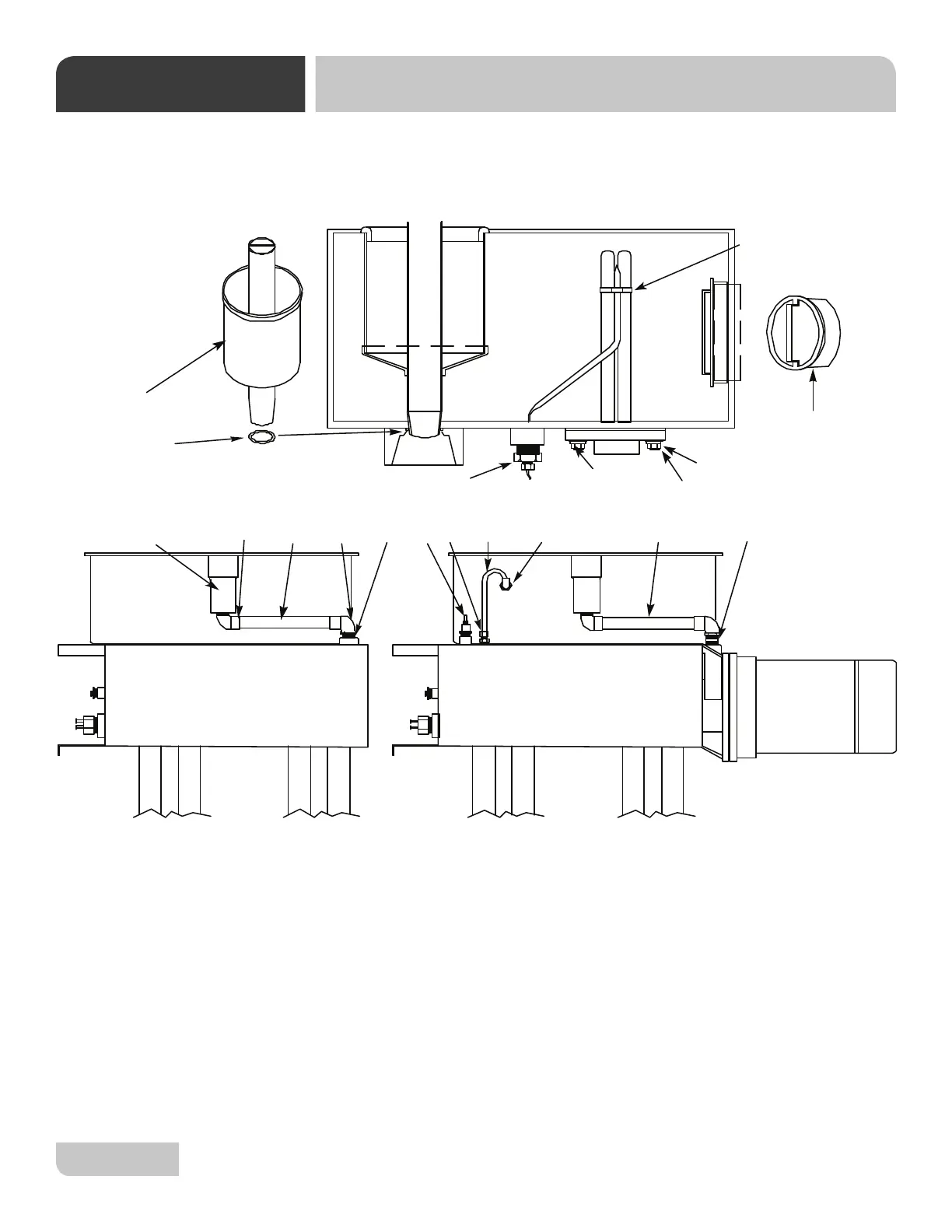

W
ASH T
ANK CONNECTION
P
ARTS
Thermal Overload
5945-301-49-00
3, 4, 5
2
1
Stainless Steel Tye Wrap
5975-602-02-20
Overow Strainer
4730-017-15-05
O-ring
5330-400-05-00
Intake Strainer
5700-000-03-02
6, 7, 8
9
10
10a
12a
11
12
13
14
15
16, 17
10 AB/10U REAR VIEW
10 APRB REAR VIEW
W
ASH T
ANK CROSS VIEW/TUB TO BOOSTER CONNECTION
55
57
Table of Contents
Default Chapter
6
Table of Contents
6
Specifications
8
Dimensions
8
10AB/10APRB/10U Dimensions
9
Operating and Electrical Requirements
11
Installation/Operation Instructions
13
Visual Inspection/Unpacking the Dishmachine
13
Leveling the Dishmachine/Installing the Vacuum Breaker and Plumbing
14
Aligning the Machine/Installing the Internal Vacuum Breaker/Hood Assembly
15
Plumbing the Dishmachine/Drain Line Connection/Water Supply/Plumbing Check
16
Electrical Power Connection/ Voltage Check/Final Check
17
Operation Instructions
18
Detergent Control
20
Preventative Maintenance
22
Service Procedures
23
Rinse Head/Wash Head Assemblies
23
Timer for 10 Series Dishmachines
26
Function of Switches, Circuit Breaker and Indicating Lights
28
Replacement of Switches in Control Panel
29
Thermostat Adjustment
30
Rinse Tank Heater System
31
Wash Tank Heater System
33
Water Level Control
35
Water Level Control (APRB)
36
Replacing Seal and Ceramic on Wash and Rinse Pumps
37
Troubleshooting
39
Common Problems
39
Parts
43
10A Assembly
43
10AB/APRB/10U Assembly
44
Control Box Assembly
46
Ordering Replacement Wire/Conduit Fittings
48
Ordering Replacement Conduit, Fittings, and Hose
50
Tub Assembly
52
Bottom View Assembly
54
Wash Tank Cross View/Tub to Booster Connection
56
10AB/APRB Rinse Booster and Associated Parts
58
Pump and Motor Assembly
59
Thermostat Housing Assembly
60
Incoming Plumbing Assemblies
61
Solenoid Valve Repair Kit/Vacuum Breaker Repair Kit
62
Hood and Associated Assemblies
63
Vacuum Breaker/Connector Assemblies 10A Series
66
Vacuum Breaker/Connector Assemblies 10AB/10APRB/10U
67
Parts List for 10 Dishmachines
68
Schematics
71
10Ab/10U, 10Aprb
71
Wiring Diagram (208-230 VOLT, 60HZ, Single Phase)
72
10AB Wiring Diagram (208-230 VOLT, 60HZ, Single Phase)
73
10AB Wiring Diagram (208-230 VOLT, 60HZ, Three Phase)
74
10APRB Wiring Diagram (208-230 VOLT, 60HZ, Single Phase)
75
10APRB Wiring Diagram (208-230 VOLT, 60HZ, Three Phase)
76
