Jackson 10 Series User Manual

07610-002-41-09-F
54

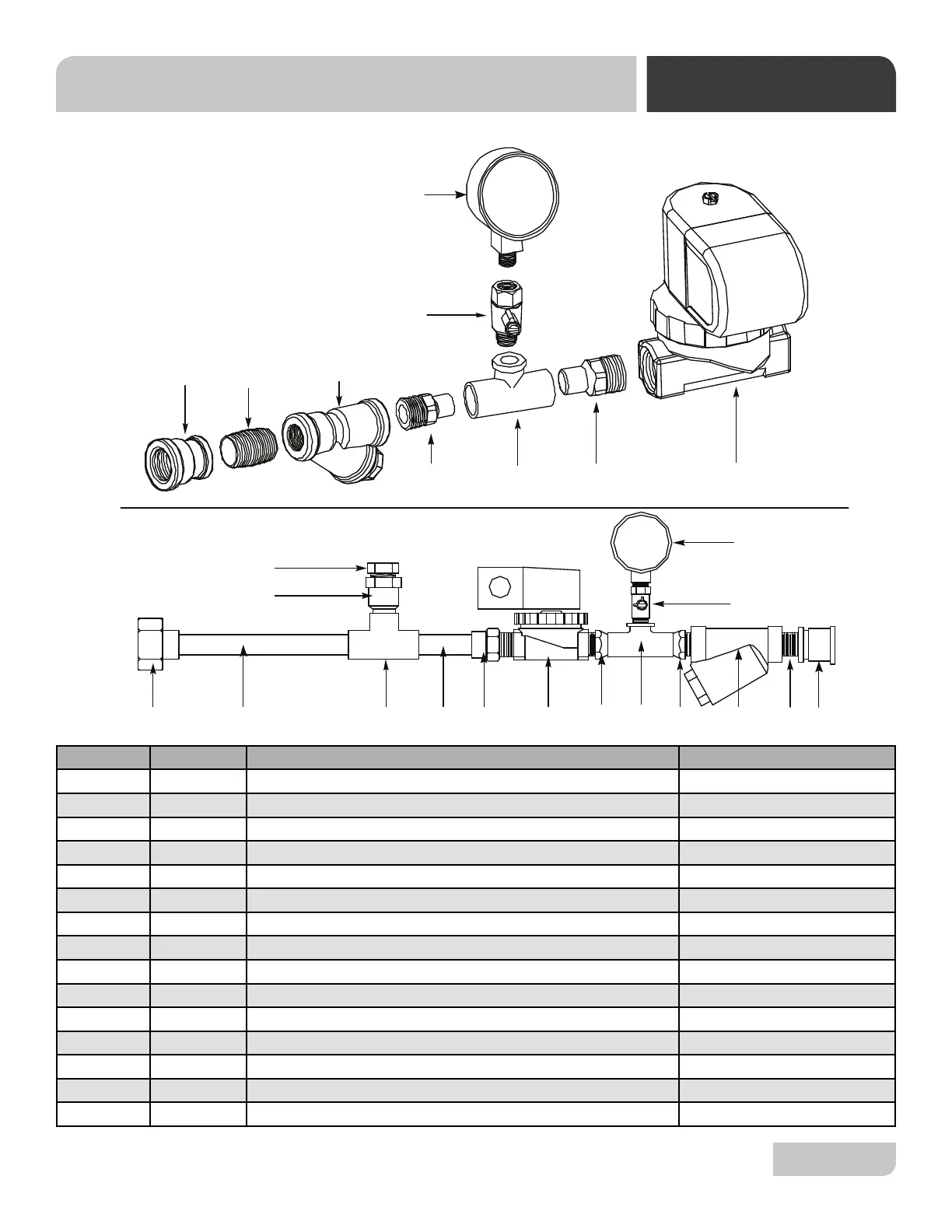

INCOMING PLUMBING ASSEMBLIES
PARTS
5
8 7 6
2
3 2 1
4
915
7
4
5
13
12
14 11
2
10 1
3
2 6
8
10AB/10APRB/10U Incoming Plumbing Assembly
5700-000-15-25
10A Incoming Plumbing Assembly
5700-002-60-98
ITEM QTY DESCRIPTION PART NUMBER
1 1 Solenoid Valve, 1/2" 208-240 Volt 04810-100-09-18
2 2 Adapter, 1/2" Fitting x Male 04730-011-59-53
3 1 Tee, 1/2" C x 1/2" C x 1/4" Female Brass 04730-411-25-01
4 1 Ball Valve, 1/4" Test Cock 04810-011-72-67
5 1 Gauge, 0-100 Pressure 06685-111-88-34
6 1 Y-Strainer, 1/2" 04730-217-01-10
7 1 Nipple, 1/2" Close Brass 04730-207-15-00
8 1 Coupling, 1/2" x 3/4" Brass 04730-204-07-00
9 1 Adapter, 1/2" Copper x MSPS 04730-401-03-01
10 1 Tube, 1/2" x 1 1/2" Copper 05700-001-04-68
11 1 Tee, 1/2" C x 1/2" C x 1/2" C, Copper 04730-411-01-01
12 1 Reducer, 1/2" to 3/8" Female Bushing 04730-209-14-00
13 1 Adapter, 1/2" C to FSPS 04730-401-07-01
14 1 Tube, 1/2" x 7" Copper 05700-001-04-67
15 1 Union, 1/2" C to C 04730-412-05-01
