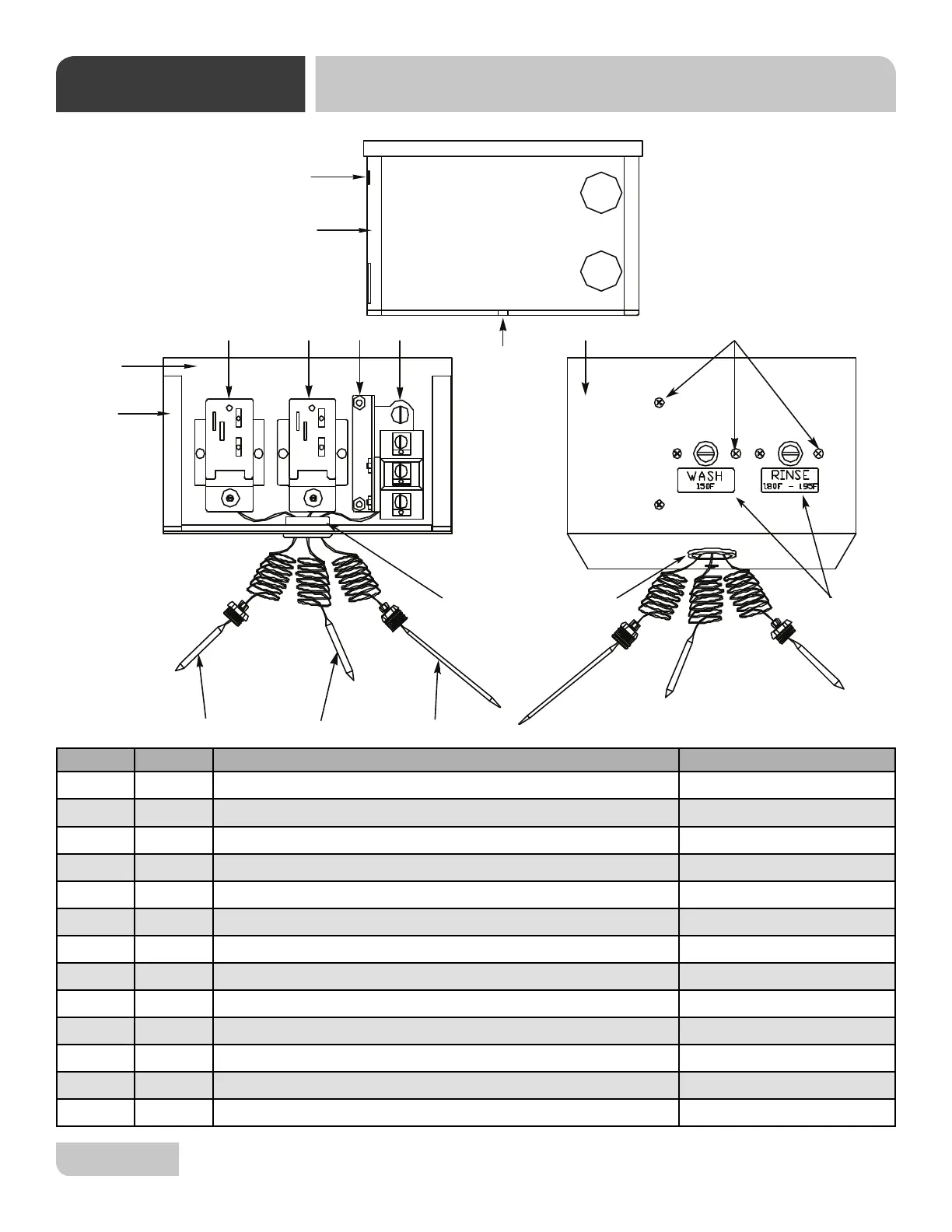

THERMOSTAT HOUSING ASSEMBLY
PARTS
11
33
2
4 5
654
9 6
10
2 7, 8
1
13
12
ITEM QTY DESCRIPTION PART NUMBER
1 1 Thermostat Box Weldment 05700-000-59-70
2 1 Front and Bottom, Thermostat Box 05700-001-21-23
3 1 Bushing, Snap in 05975-210-09-00
4 1 Thermostat, Rinse (Not used on 10A) 05930-510-02-00
5 1 Thermostat, Wash 05930-510-01-00
6 1 Overload, Thermal 05945-301-49-00
7 6 Screw, 6-32 x 1/4" S/S Round Head (2 Not used on 10A) 05305-151-02-00
8 4 Lockwasher, #6 External Tooth (2 Not used on 10A) 05311-271-02-00
9 2 Nut, 6-32 S/S Hex 05310-271-01-00
10 1 Screw, 6-32 x 3/8" S/S Round Head 05305-171-02-00
11 18" Strip, 1/2" x 1/8" Sponge Rubber 05330-100-10-00
12 1 Decals, Wash and Rinse Temperature (Minus Rinse Decal 10A) 09905-100-43-21
13 2 Locknut, 10-24 S/S Hex w/ Nylon Insert 05310-373-01-00
