INSTRUCTIONS
INSTALLATION
Before installing the unit, check the packaging and machine for damage. If the packaging
is damaged, the machine might also be damaged. If there is damage to both packaging
and machine, do not throw away the packaging. The dishmachine has been inspected
and packed at the factory and is expected to arrive to you in new, undamaged condition.
However, rough handling by carriers or others might result in damage to the unit while
in transit. If so, do not return the unit to the manufacturer. Instead, contact the carrier
and ask them to send a representative to the site to inspect the damage and complete
an inspection report. You must contact the carrier and the dealer that sold you the unit
within 48 hours of receiving the machine.
While removing the machine from the container, ensure that there are no missing parts.
If an item is missing, contact the manufacturer immediately.
The dishmachine must be level in its operating location to
prevent damage to the machine during operation and to
ensure the best results. The unit comes with four adjustable
bullet feet, which can be turned using a pair of channel locks
(or by hand if the unit can be raised safely). Ensure that
the unit is level from side-to-side and front-to-back before
making any connections.
Plumbing connections must comply with all applicable local, state, and national
plumbing codes. The plumber is responsible for ensuring that the incoming water line
is thoroughly ushed before connecting it to any component of the dishmachine. It is
very important to remove all foreign debris from the water line that might potentially get
trapped in the valves or cause an obstruction. Any valves that are fouled as a result of
foreign matter left in the water line—and any expenses resulting from this fouling—are
not the responsibility of the manufacturer.
A water hardness test must be performed to determine if the HTS-11 (scale
prevention and corrosion control) needs to be installed. If water hardness is higher
than 5 GPG, the HTS-11 will need to be installed. Please contact the manufacturer
to purchase the HTS-11.
The steam machines come with lines to connect the source steam. Connect all steam
lines to the machine as all applicable codes provide. See machine data plate for
information concerning steam ow pressure.
Click here for the Steam Booster manual.
INSPECTION
LEVELING
UNPACKING
PLUMBING
A water hardness test
MUST be performed.
Do not throw away
packaging if damage is
evident!
STEAM LINE
CONNECTION
The plumber MUST ush
the incoming water line!

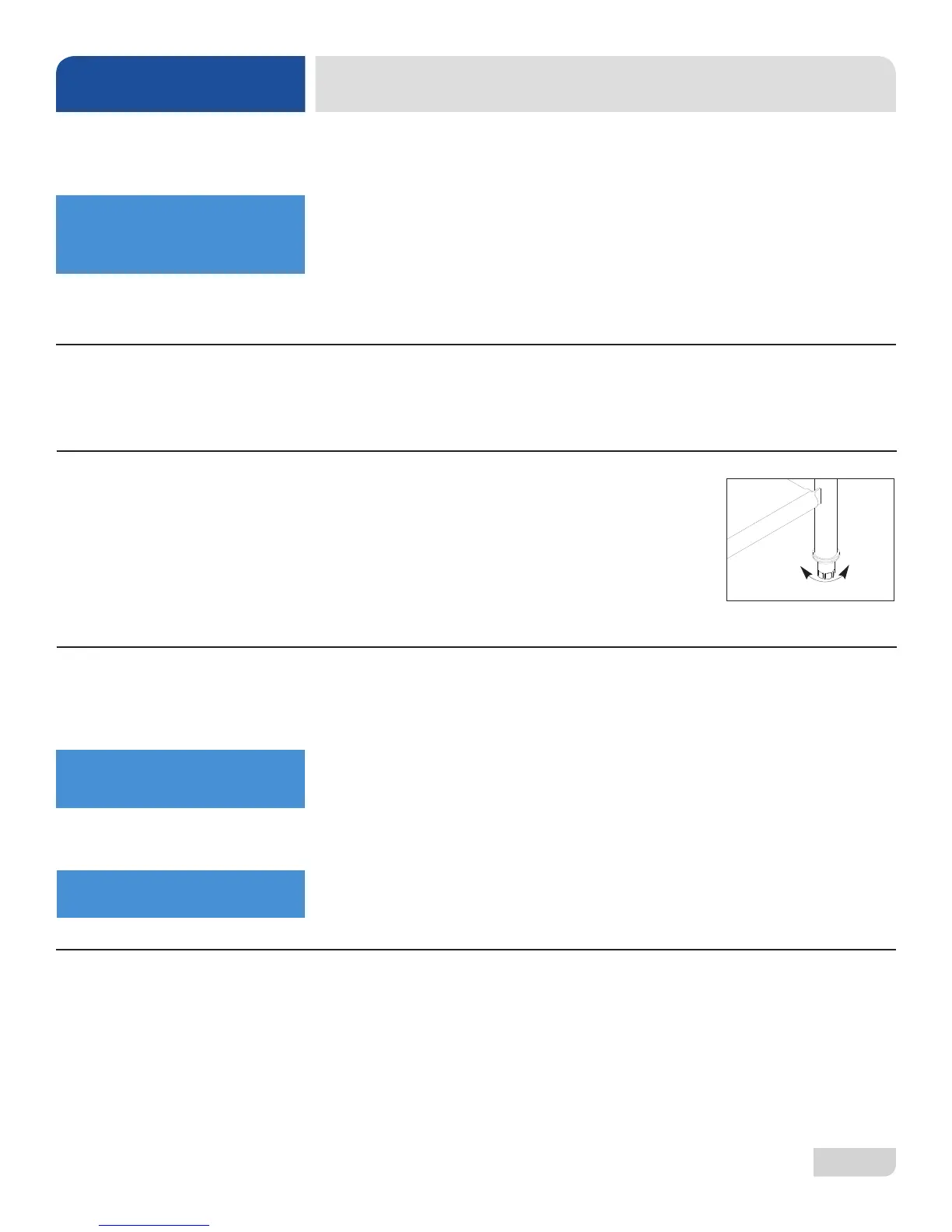

Frame with Adjustable Foot
Raise
Lower
To Next Page
