Jackson TempStar Series User Manual

07610-002-23-32-AC
58
PART NUMBER
DESCRIPTIONQTY
ITEM
04820-003-06-13VAC BRKR 1/2 BRASS BON.EDP-033640211
04730-206-08-00
ELBOW, 90 DEGREE 1/2 STREET BRASS
12
05700-004-19-83W-PLUMBING, RINSE INJECTOR13
05700-004-19-12
A-PLUMBING, OUTLET_W/ HEAT EXC.
14
PART NUMBER
(TEMPSTAR)QTY
ITEM
05700-004-19-89A-HOSE, 1/2" ID X 24" LG RED15
05700-004-19-90
A-HOSE, 1/2" ID X 60" LG RED
16
05700-004-19-91A-HOSE, 1/2" ID X 58" LG BLUE17
PART NUMBER
(TE
MPSTAR HH)QTY
ITEM
05700-004-19-89A-HOSE, 1/2" ID X 24" LG RED15
05700-004-19-99
A-HOSE, 1/2" ID X 67" LG RED
16
05700-004-20-00A-HOSE, 1/2" ID X 69" LG BLUE17
RINSE INJECTOR
09515-004-22-73
2
1
4
5
6
7
3
HOSE PAC, ASSEMBLY (TEMPSTAR) 05700-004-20-01
HOSE PAC, ASSEMBLY (TEMPSTAR HH) 05700-004-20-02
PART NUMBER
DESCRIPTIONQTY
ITEM
04820-003-06-13VAC BRKR 1/2 BRASS BON.EDP-033640211
04730-206-08-00
ELBOW, 90 DEGREE 1/2 STREET BRASS
12
05700-004-19-83W-PLUMBING, RINSE INJECTOR13
05700-004-19-12
A-PLUMBING, OUTLET_W/ HEAT EXC.
14
PART NUMBER
(TEMPSTAR)QTY
ITEM
05700-004-19-89A-HOSE, 1/2" ID X 24" LG RED15
05700-004-19-90
A-HOSE, 1/2" ID X 60" LG RED
16
05700-004-19-91A-HOSE, 1/2" ID X 58" LG BLUE17
PART NUMBER
(TE
MPSTAR HH)QTY
ITEM
05700-004-19-89A-HOSE, 1/2" ID X 24" LG RED15
05700-004-19-99
A-HOSE, 1/2" ID X 67" LG RED
16
05700-004-20-00A-HOSE, 1/2" ID X 69" LG BLUE17
RINSE INJECTOR
09515-004-22-73
2
1
4
5
6
7
3
HOSE PAC, ASSEMBLY (TEMPSTAR) 05700-004-20-01
HOSE PAC, ASSEMBLY (TEMPSTAR HH) 05700-004-20-02

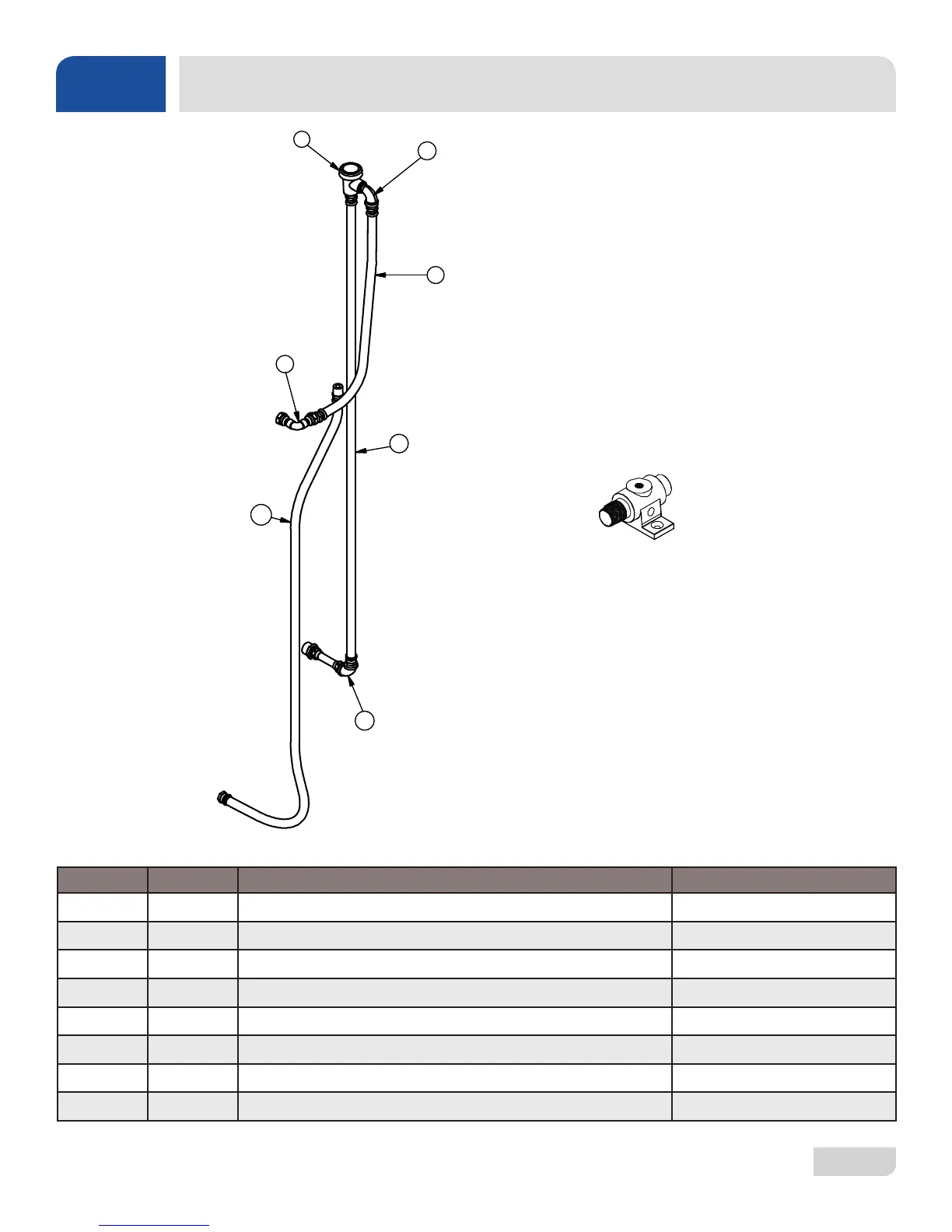

ITEM QTY DESCRIPTION PART NUMBER
1 1 Vacuum Breaker, 1/2" Brass 04820-003-06-13
2 1 Elbow, 90-Degree 1/2" Street Brass 04730-206-08-00
3 1 Plumbing, Rinse Injector 05700-004-19-83
4 1 Plumbing, Outlet with Heat Exchanger 05700-004-19-12
5 1 Hose, 1/2" x 24" Red 05700-004-19-89
6 1 Hose, 1/2" x 67" Red 05700-004-19-99
7 1 Hose, 1/2" x 69" Blue 05700-004-20-00
8 1 Hose Pack Assembly (Not Shown) 05700-004-20-02
PLUMBING - HH VENTLESS
PARTS
Rinse Injector
05700-004-22-73
