07610-002-23-32-AC

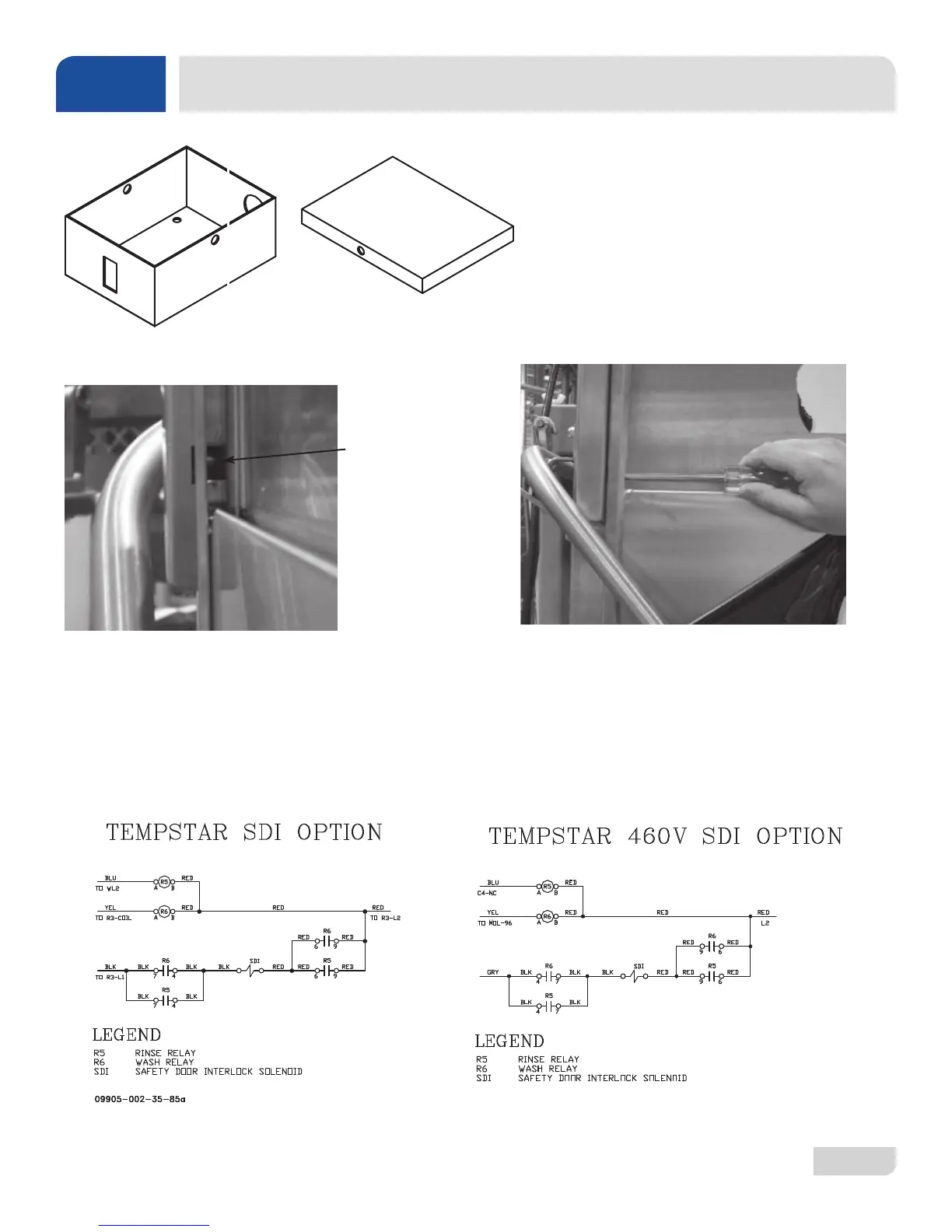

Door Interlock Box Bottom
05700-001-21-26
Door Interlock Box Cover
05700-001-21-27
Other Door Interlock
components (not shown):
Pipe Clamp (found on the side of the machine)
05700-000-35-05
Solenoid, Electrical Interlock Option
04810-100-61-33
Relay
05945-111-47-51
Latch access hole
The following instructions are for models equipped with the Door Interlock option. These instructions should only be
used if the door interlock fails to unlatch and the doors won't open.
1. To manually disengage, nd the latch access hole.
2. Gently insert the tip of a screwdriver or other metal utensil into the access hole, making contact with the latching arm.
3. Disengage the interlock by pushing the latching arm back with a minimal amount of force.
4. The doors should now open.
VENTLESS DOOR INTERLOCK OVERRIDE
PARTS
