LF 4675 / LF 4677

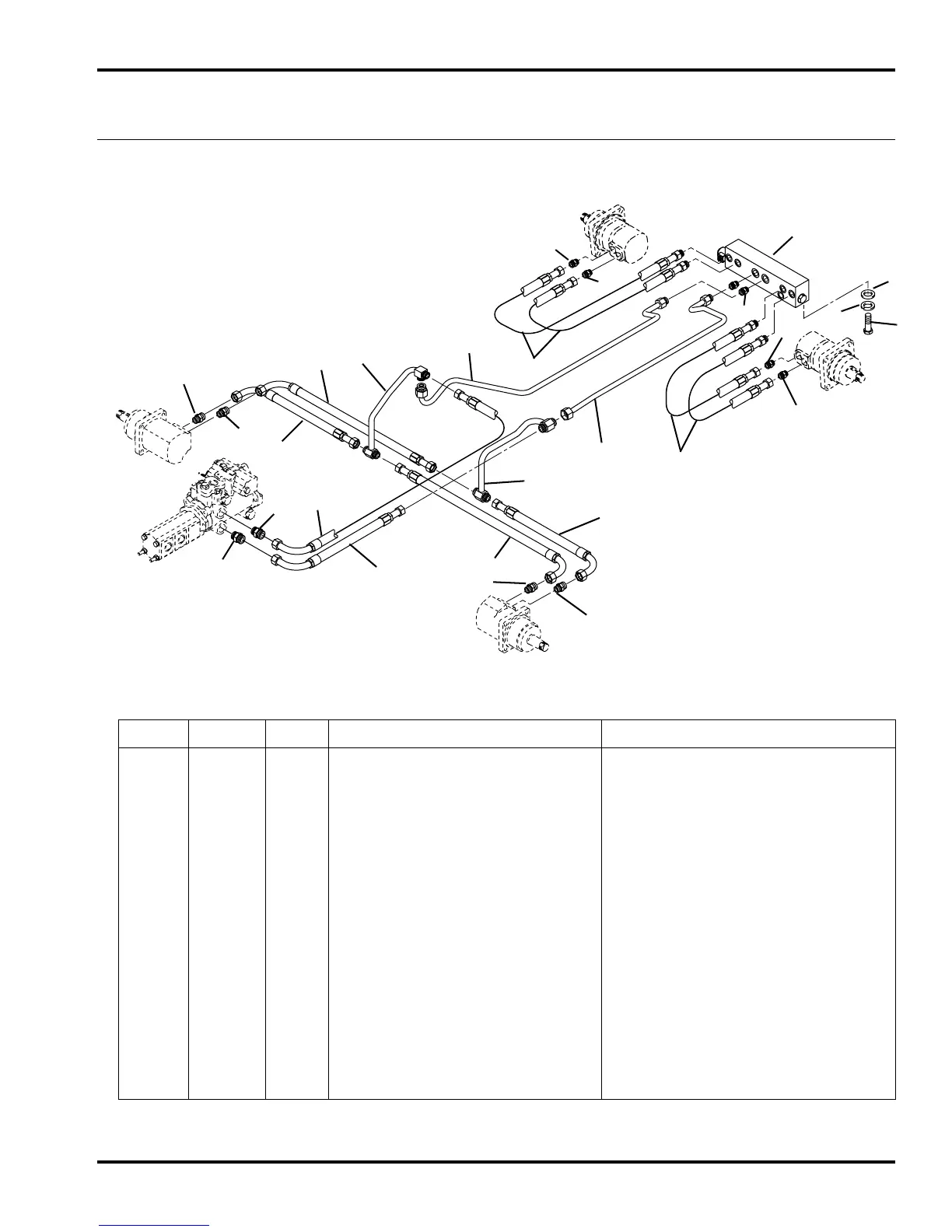

18.1 4WD Traction Hydraulics
Serial No. 67916-1601 and Up
Serial No. 67869-1601 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
1003440 1 Hose, Pump To Reverse 4WD Tee
2 339994 6 Adapter, Straight
3 339999 2 Adapter, Straight
4 1003457 1 Tube, Reverse 4WD Tee
5 1003439 1 Hose, Pump To Forward 4WD Tee
6 1003456 1 Tube, Forward 4WD Tee
7 1003442 2 Hose, Tee To Wheel Motor
8 1003441 2 Hose, Tee To Wheel Motor
9 4135554 1 Valve, 4WD See 57.1
10 1003094 1 Tube, Forward 4WD Tee To Valve
11 1003095 1 Tube, Reverse 4WD Tee To Valve
12 1003455 4 Hose, 4WD Valve To Motors
13 339989 4 Adapter, Straight
14 400258 4 Screw, 3/8-16 x 3/4” Hex Head
15 446142 4 Lockwasher, 3/8 Heavy
16 452008 4 Flat Washer, 3/8
1
2
3
4
5
6
7
8
9
10
11
12
13
2
2
2
2
3
7
8
12
LF34-16
13
13
13
14
15
16
