LF 4675 / LF 4677

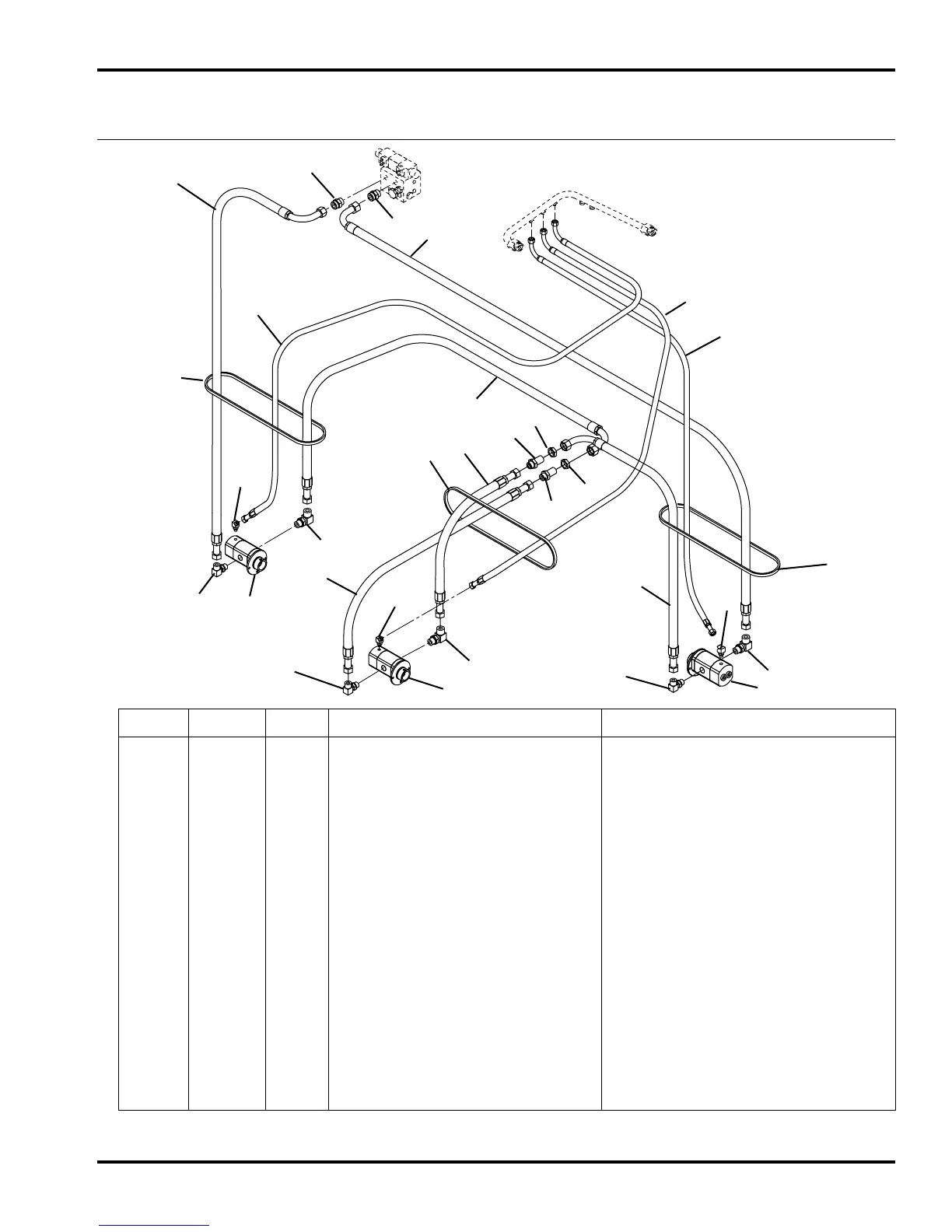

33.1 Front Reel Hydraulics
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003337 1 Hose, Valve to Right Front Motor Front Reel Valve Port A
2 1003444 1 Hose, Right Front to Bulkhead
3 1003445 1 Hose, Bulkhead to Center Motor
4 1003446 1 Hose, Center Motor to Bulkhead
5 1003447 1 Hose, Bulkhead to Left Front Motor
6 1003338 1 Hose, Left Front Motor to Valve Front Reel Valve Port B
7 2812241 1 Hose, Right Front Motor Drain
8 2812242 1 Hose, Left Front Motor Drain
9 1003451 1 Hose, Center Motor Drain
10 340070 6 Adapter, 90°
11 340022 3 Adapter, 45°
12 339989 2 Adapter, Straight
13 340241 2 Adapter, Union Bulkhead
14 339963 2 Locknut, Bulkhead
15 473142 5 Tie Wrap
16 2822503 3 Motor, 5” Diameter Reel LF 3400 and LF 4675,See 53.1
16 1002620 3 Motor, 7” Diameter Reel LF 3800 and LF 4677, See 54.1
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
11
11
11
12
12
13
13
14
14
15
15
15
16
16 16
