81
> Change from previous revision
RA
RB
CA
CB
LF 4675 / LF 4677

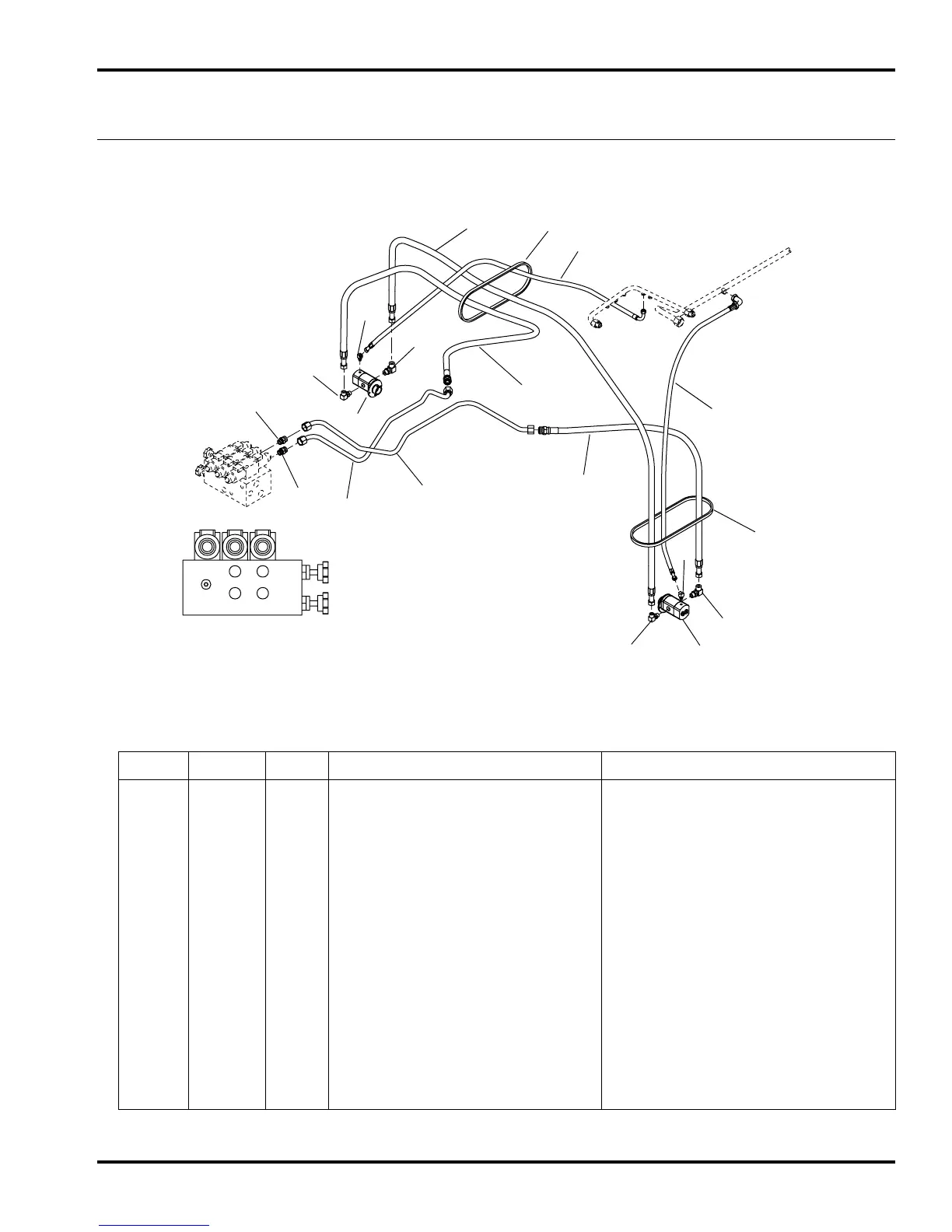

35.1 Rear Reel Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1004432 1 Tube, Rear Pressure Rear Valve Port CA
2 1004284 1 Hose, Tube to Right Rear Motor
3 1004285 1 Hose, Right Rear to Left Rear Motor
4 1004283 1 Hose, Left Rear Motor to Tube
5 1004429 1 Tube, Rear Return Rear Valve Port CB
6 1004223 1 Hose, Left Rear Drain
7 1003448 1 Hose, Right Rear Drain
8 339989 2 Adapter, Straight
9 340070 4 Adapter, 90°
10 340022 2 Adapter, 45°
11 2822503 2 Motor, 5” Diameter Reel LF 4675 See 53.1
11 1002620 2 Motor, 7” Diameter Reel LF 4677 See 54.1
12 473142 2 Tie Wrap
Rear Reel Valve
Viewed from Behind
1
2
3
4
5
6
7
8
8
9
9
9
9
10
10
11
11
12
12
To Next Page
