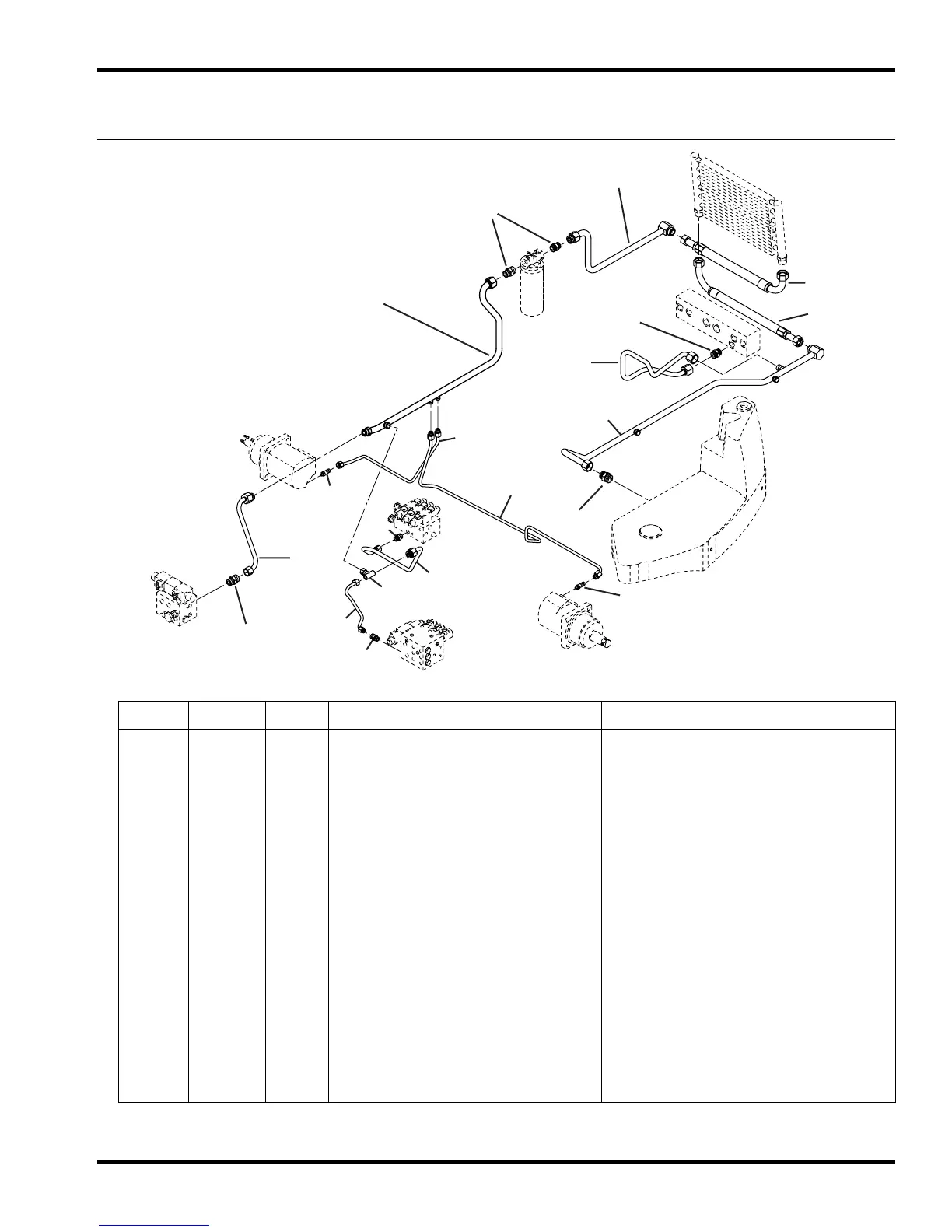

LF 4675 / LF 4677
24.1 Return Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Serial No. All
Item Part No. Qty. Description Serial Numbers/Notes
1
1003453 1 Hose, Oil Cooler
2 2812271 1 Tube, Drain
3 1004312 1 Tube, Right Front Motor Drain
4 339999 3 Adaptor, Straight
5 1003454 1 Hose, Oil Cooler
6 1003389 1 Tube, Oil Cooler
7 1004218 1 Tube, Return
8 340007 2 Adaptor, Straight
9 1004311 1 Tube, Left Front Motor Drain
10 339979 1 Adaptor, Straight
11 1004018 1 Tube, 4WD Valve Drain
12 339989 3 Connector, Straight
13 339993 1 Adaptor, Straight
14 2812275 1 Tube, Front Reel Valve Return Front Reel Valve Port T
15 340147 1 Adapter, Tee
16 2812276 1 Tube, Rear Reel Valve Return Rear Reel Valve Port T2
17 2812274 1 Tube, Lift Valve Return Lift Valve Port T
