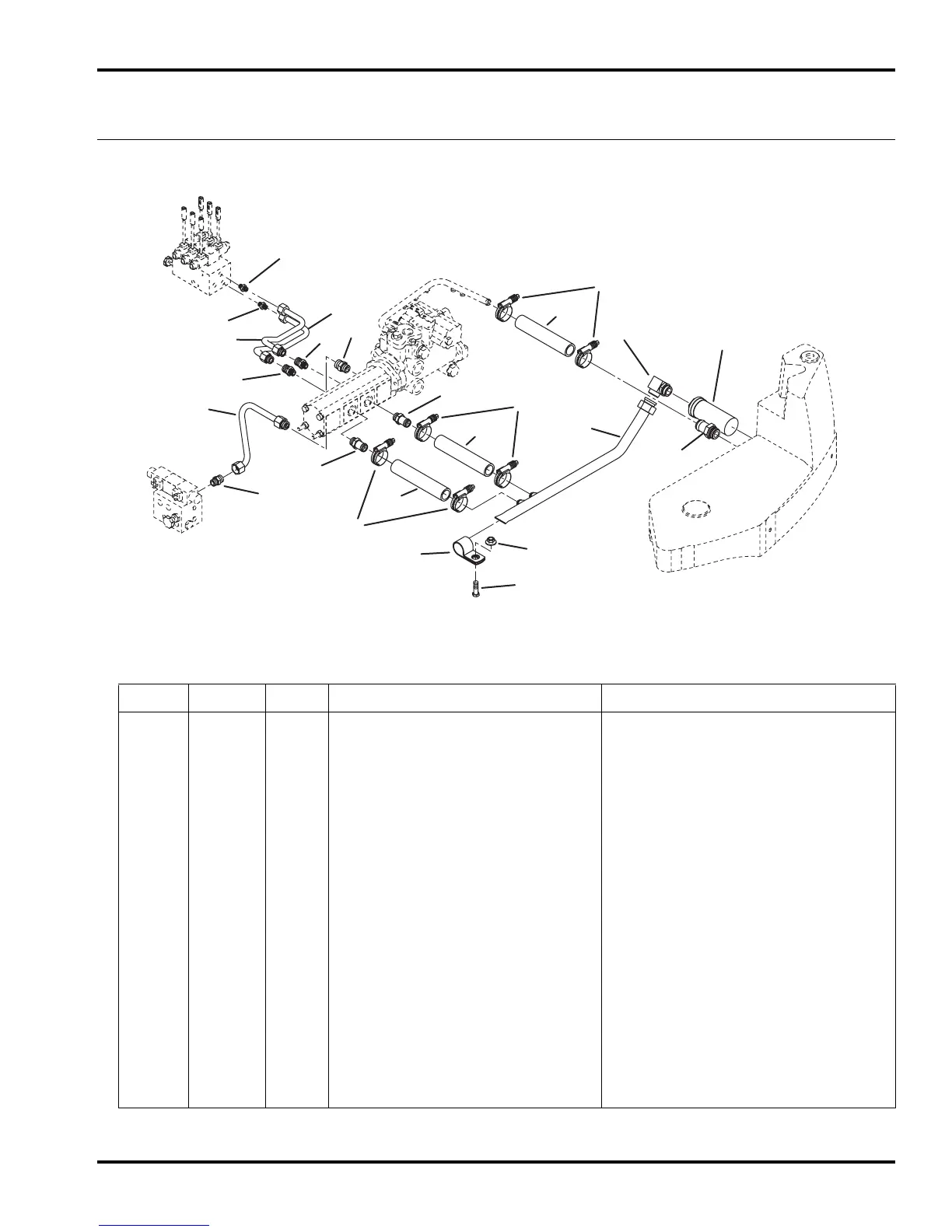

22.1 Gear Pump Hydraulics
7 Gang Units (LF 4675 and LF 4677)
Item Part No. Qty. Description Serial Numbers/Notes
1
365959 1 Strainer, Tank Mounted
362743 1 • O-Ring
2 340090 1 Adapter, 90°
3 1003992 1 Tube, Gear Pump Inlet
4 445796 1 Nut, 3/8-16 Spiralock Flange
5 3001296 2 Fitting, Beaded Insert
6 3008745 3 Hose, Gear Pump Inlet
7 364190 1 Clamp, 1-1/2 I.D.
8 400264 1 Screw, 3/8-16 x 1-1/4” Hex Head
9 3008673 6 Clamp, Constant Torque
10 2810256 1 Hose, Pump To Front Reel Valve Front Reel Valve Port P
11 339993 2 Connector, Straight
12 1004206 1 Tube, Pump to Rear Reel Valve Rear Reel Valve Port WP
13 1004207 1 Tube, Pump to Rear Reel Valve Rear Reel Valve Port CP
14 339990 1 Adaptor, Straight
15 339989 1 Adaptor, Straight
16 339994 2 Adaptor, Straight
17 361689 1 Fitting, Barbed
1
2
3
4
5
6
7
8
9
10
11
14
15
6
9
5
13
16
12
16
11
17
6
9
