Page 28

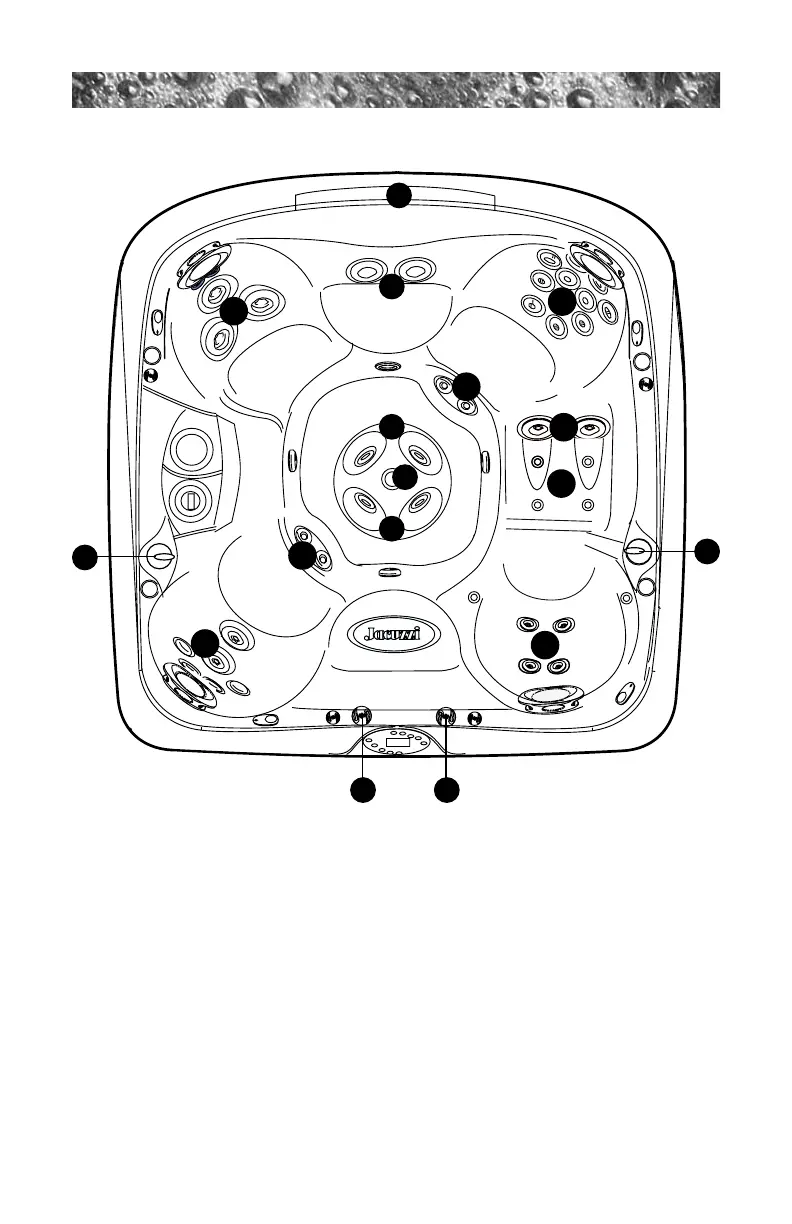

9.13 J-480 Massage / Waterfall Selector Diagram
1a
1a
1b
2b
2b
2a
2a
2a
1
3
3
5
5
5
2
4
4
Massage Selectors (1-2)
• Massage selector 1 diverts pump 2 output between jets groups 1a-1b.
• Massage selector 2 diverts pump 1 output between jet groups 2a-2b.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation pump output to waterfalls.
Massage Selector (4)
• Massage selector 4 controls pump 1 output to footwell IX Jet.
Jets Without Massage Selector Controls (5)
• Jets 5 are always on when jets pump 2 is running.
Spa operation subject to change without notice.
