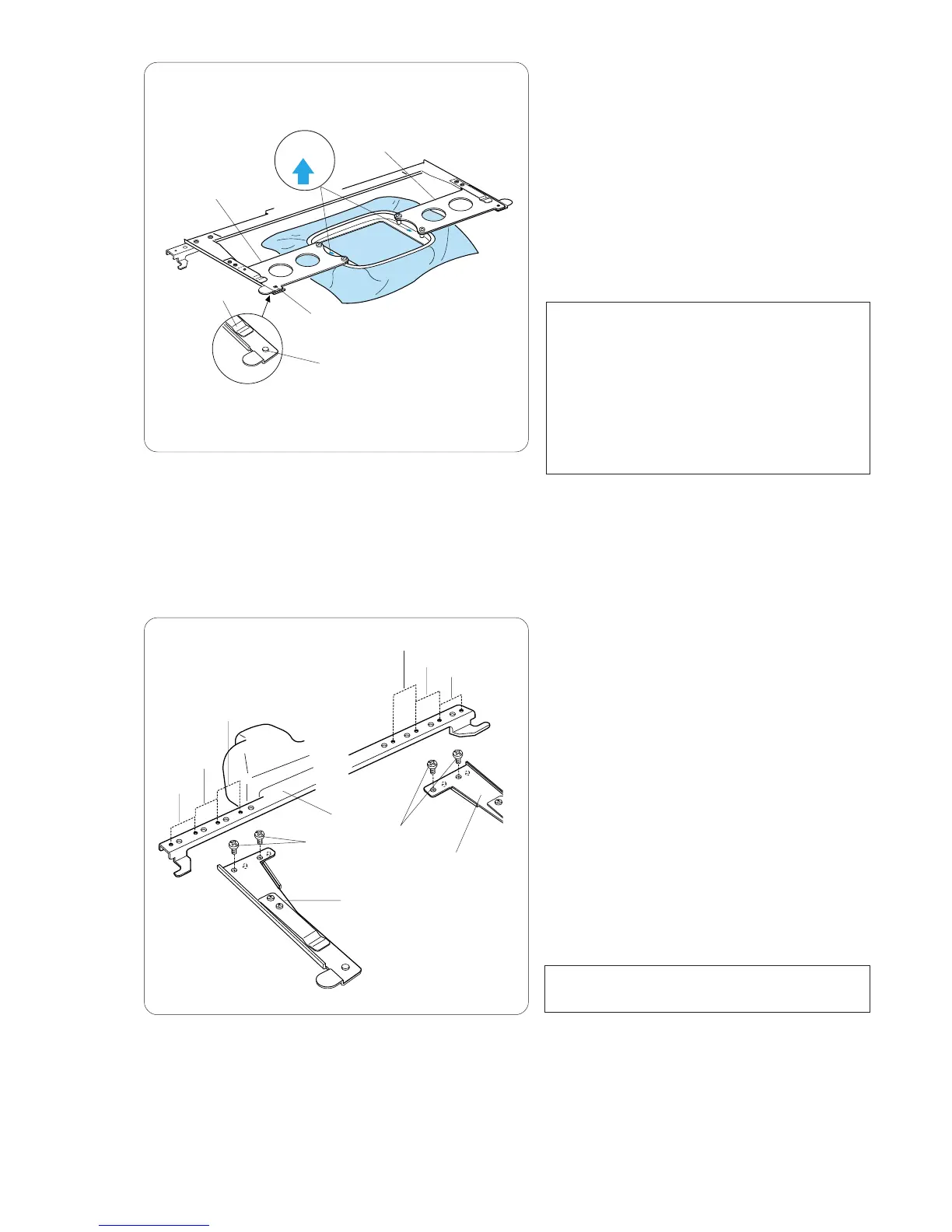

Setting the Embroidery Hoop
Hold the setting plate with both hands and insert
them under the holder clips.
Slide the hoop on the hoop supporter until the
holes catch the positioning pins on the hoop
supporter.
q Setting plate
w Holder clip
e Hole in the setting plate
r Positioning pin
NOTES:
Do not set the hoop front-side back or upside
down. The arrow mark on the inner hoop should
face away from you.
t Arrow mark
Be careful not to pinch the fabric edge under the
hoop supporter.
Adjusting the Hoop Supporter for Optional
Hoops
The hoop supporter provides 2 alternate
positions to adapt optional hoops available on
the market, such as Tajima’s hoop.
Remove setscrews on both left and right hoop
supporter arms and remove them.
q Setscrew
Attach both hoop supporter arms to the hoop
supporter bar in the position B or C depending
on the hoop you wish to use.
Secure the supporter arms with the setscrews.
w Left hoop supporter arm
e Right hoop supporter arm
r Hoop supporter bar
NOTE:
Position A is for the standard hoops.
q
w
e
r
t
q
q
w
e
r
q
C
C
B
B
A
A
