Janome MB-4 Instruction Book

5

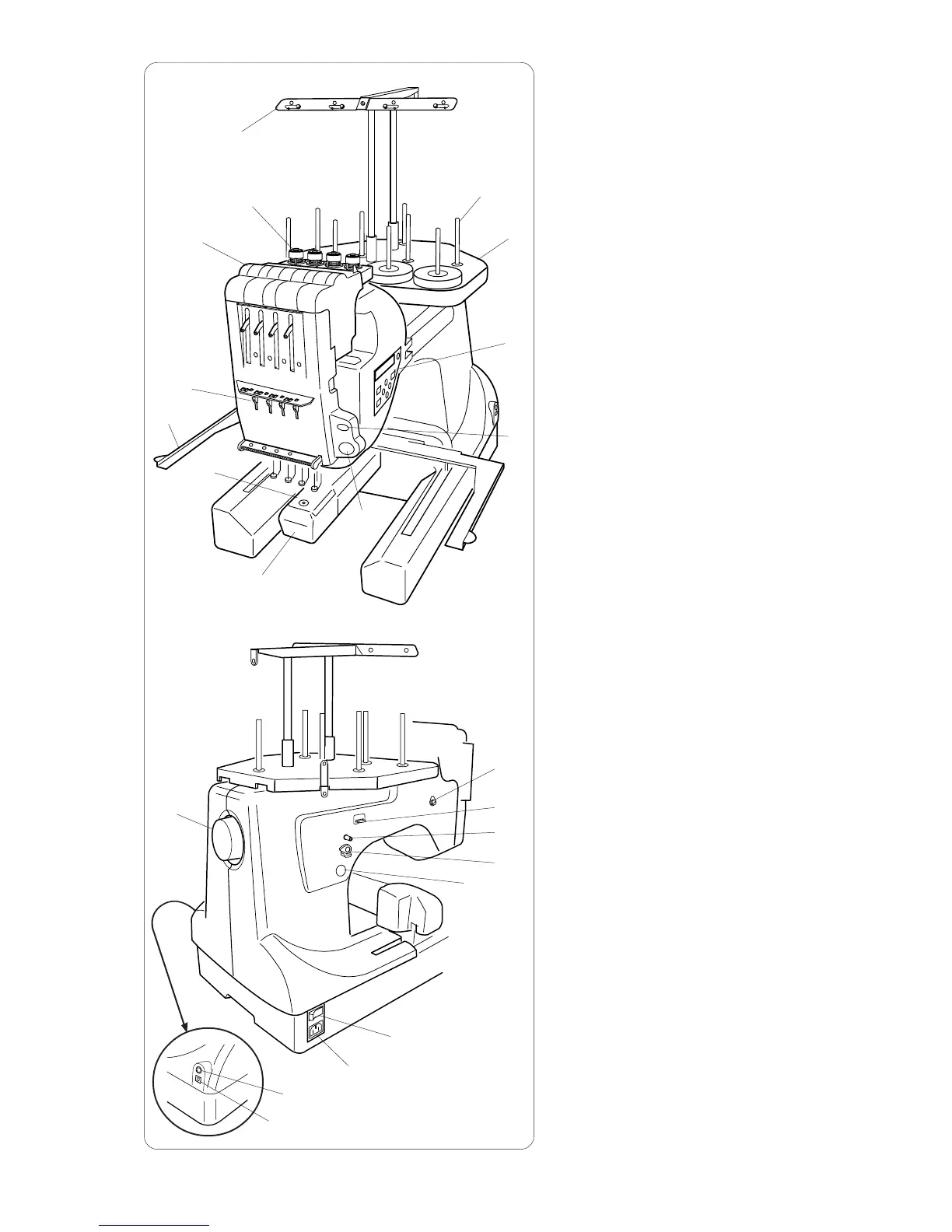

Names of Parts
q Thread guide bar
w Pre-tension control
e Tension control
r Check spring
t Hoop supporter
y Needle plate
u Hook cover
i Start/Stop button
o Auto thread cutter button
!0 Sub control panel
!1 Spool pins
!2 Spool stand
q
w
e
r
t
y
u
i
o
!0
!1
!2
!3
!4
!5
!6
!7
!8
!9
@2
!3 Machine socket
!4 Power switch
!5 Bobbin winder button
!6 Bobbin winder stopper
!7 Bobbin winder spindle
!8 Bobbin thread cutter
!9 Bobbin winder thread guide
@0 RCS connector socket
@1 USB port
@2 Handwheel
@0
@1

Janome MB-4 Specifications

General

Type	Embroidery machine
Number of Needles	4
USB Port	Yes
LCD Screen	Yes
Memory	Yes
Connectivity	USB
Automatic Thread Cutter	Yes
Display	LCD
