Routine Maintenance (continued)
Compressor Oil and Filter - Draining Air Receiver
Condensate
!!
WARNING
Oil is toxic. If you swallow any oil, do not induce
vomiting, seek medical advice. Used engine oil contains
harmful contaminants which can cause skin cancer. Do
not handle used engine oil more than necessary. Always
use barrier cream or wear gloves to prevent skin
contact. Wash skin contaminated with oil thoroughly in
warm soapy water. Do not use petrol, diesel fuel or
paraffin to clean your skin.
INT-3-2-3
!!
WARNING
Make sure the machine is safe before getting beneath it.
The loader arms must be on the ground, the parking
brake engaged and the transmission in neutral. Remove
the starter key. Chock the front and rear wheels.
1 Park the machine on firm level ground. Engage the
parking brake and set the transmission to neutral. Stop
the engine and remove the starter key.

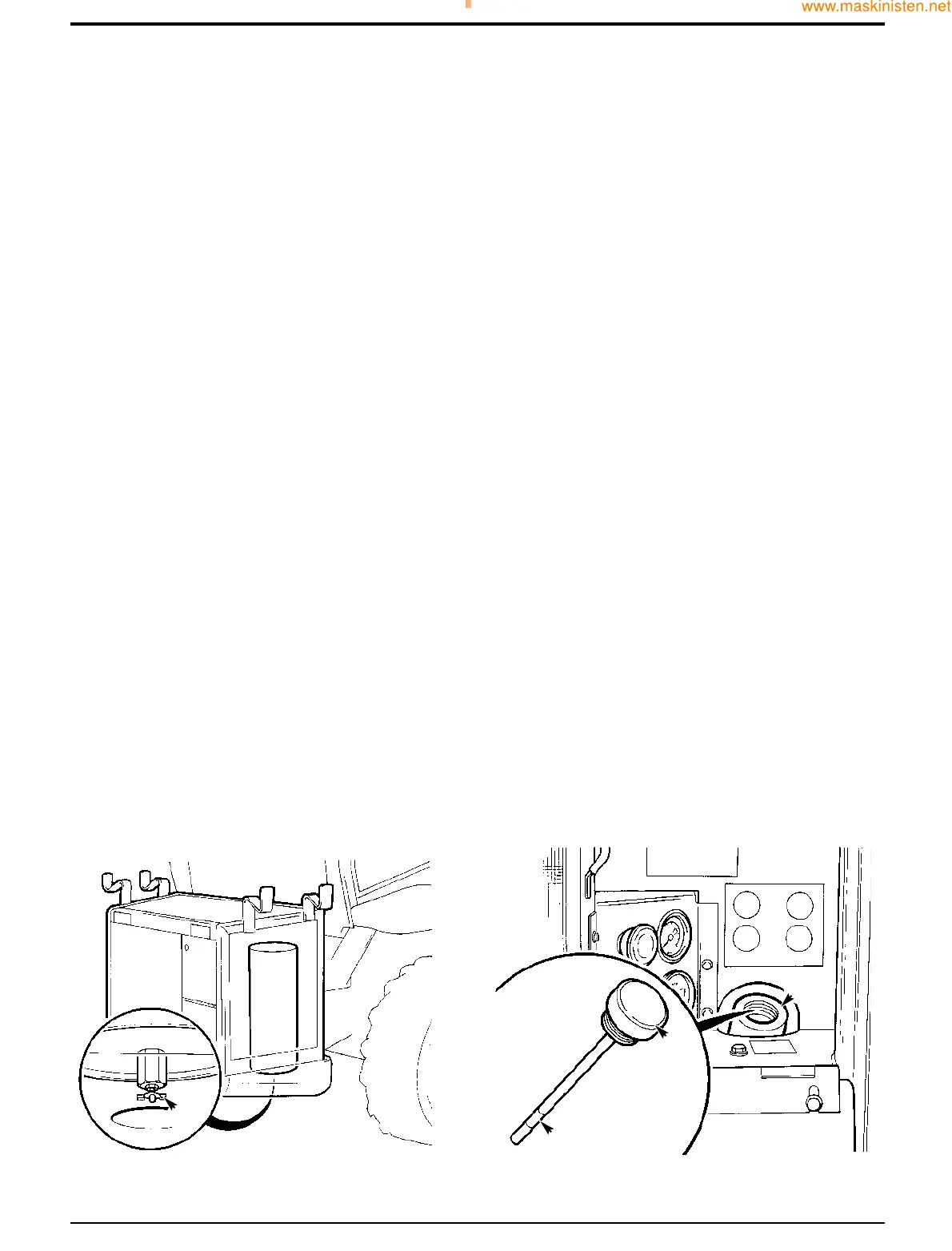

2 Prior to the first compressor start-up each day, open
the air receiver oil drain A and drain any condensate
that may have accumulated; when the flow becomes oil
only close the drain promptly.
Compressor Oil and Filter - Checking Air Receiver
Oil Level
!!
WARNING
Oil is toxic. If you swallow any oil, do not induce
vomiting, seek medical advice. Used engine oil contains
harmful contaminants which can cause skin cancer. Do
not handle used engine oil more than necessary. Always
use barrier cream or wear gloves to prevent skin
contact. Wash skin contaminated with oil thoroughly in
warm soapy water. Do not use petrol, diesel fuel or
paraffin to clean your skin.
INT-3-2-3
1 Park the machine on firm level ground. Engage the
parking brake and set the transmission to neutral. Stop
the engine and remove the starter key.
2 Unscrew and remove oil filler/level cap B. Check that
the oil is between the two marks on the dipstick C.
3 If necessary, add oil through filler D. It is important to
use the same brand and grade of oil as that already
being use in the oil system (see Compressor Approved
Oils ).
4 Replace and secure filler/level cap B.
