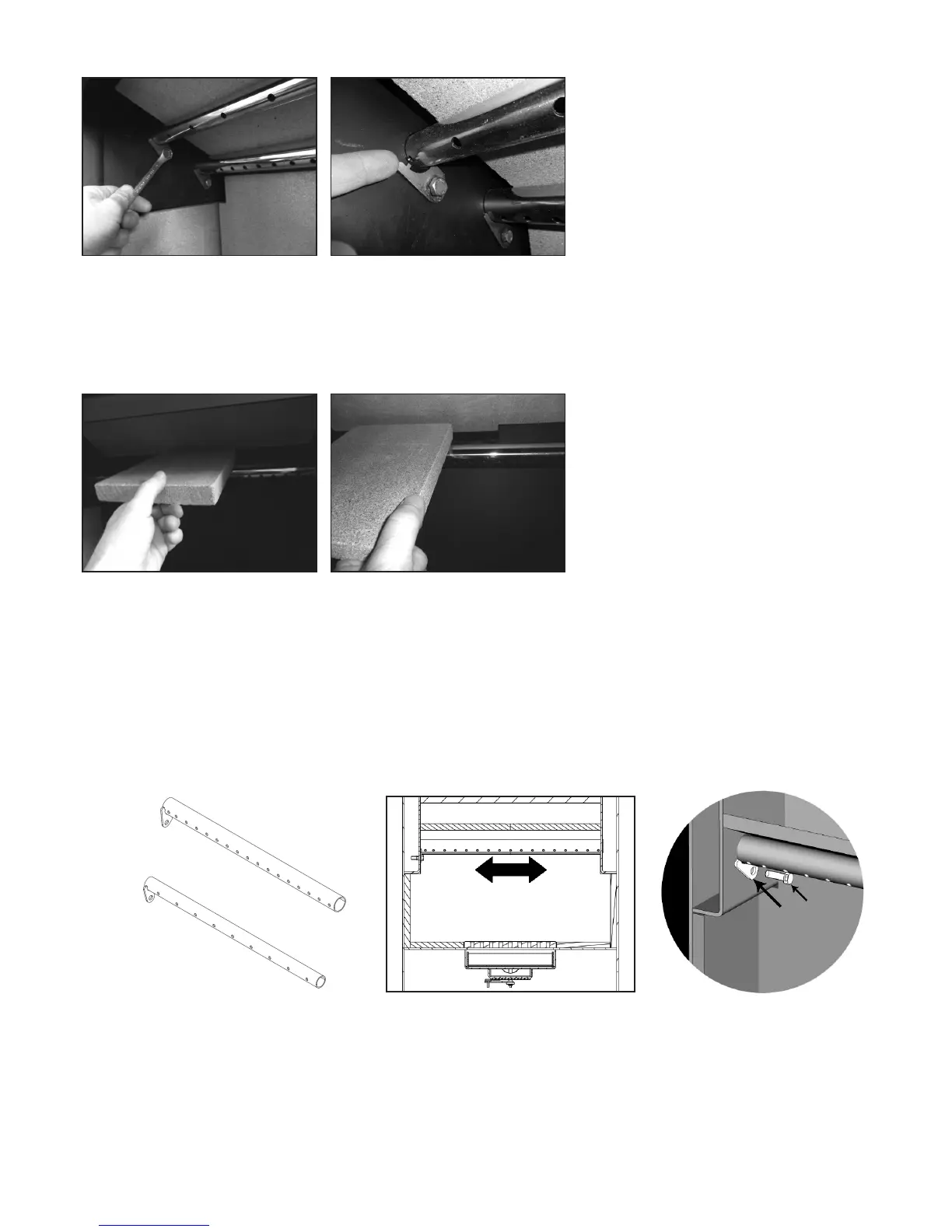

There is no need to remove the 8mm bolt completely. It is easier for reassembly to just leave it loose.

8mm bolt holding cam latch Cam latch

Once this has been carried out then the tube can be slid across so that one end is released from the side

chamber to drop down allowing space to pull it out of the other side of the chamber.

Nextslideforwardthelowerbafesoverthereartubeanddroptheirfrontedgedownandremovethemfromthe

re.Notetheirorientationastheyarelongeralongoneedge.

Finally remove the rear tube in the same manner as the front tube.

Replacement is the reverse procedure.

FirstttheRearTube,thenthelowerbafesandthentheFrontTube.

CAUTION

Ensure that the cam catch locator is positioned in the tube hole when the bolt is tightened to trap the tube from

slidingoutandtoensurethatthetertiaryairportsareintheircorrectpositionwithinthere.

Ensurethatthebafesarettedthecorrectwayaround.

Rear tertiary air tube

Front and back tertiary tubes are

designed to slide across to be

released from side chambers

Front tertiary air tube

Cam Catch

8mm bolt

UpperBafeRemoval

Abovethelowerbafesisanupperbafe.Toremovethis,rstremovethetertiaryairtubesandthelowerbafes.

Oncethishasbeencarriedoutthentheupperbafecanberemoved.

Theupperbafeisheldinplacebetweenarecessedbracketinthebackpanelandabracketatthetopfrontthat

supportsit.Thebackoftheupperboardtsinarecessattherearofthestove.Thustheboardistrapped/rests

between the front bracket and the rear of the box.
