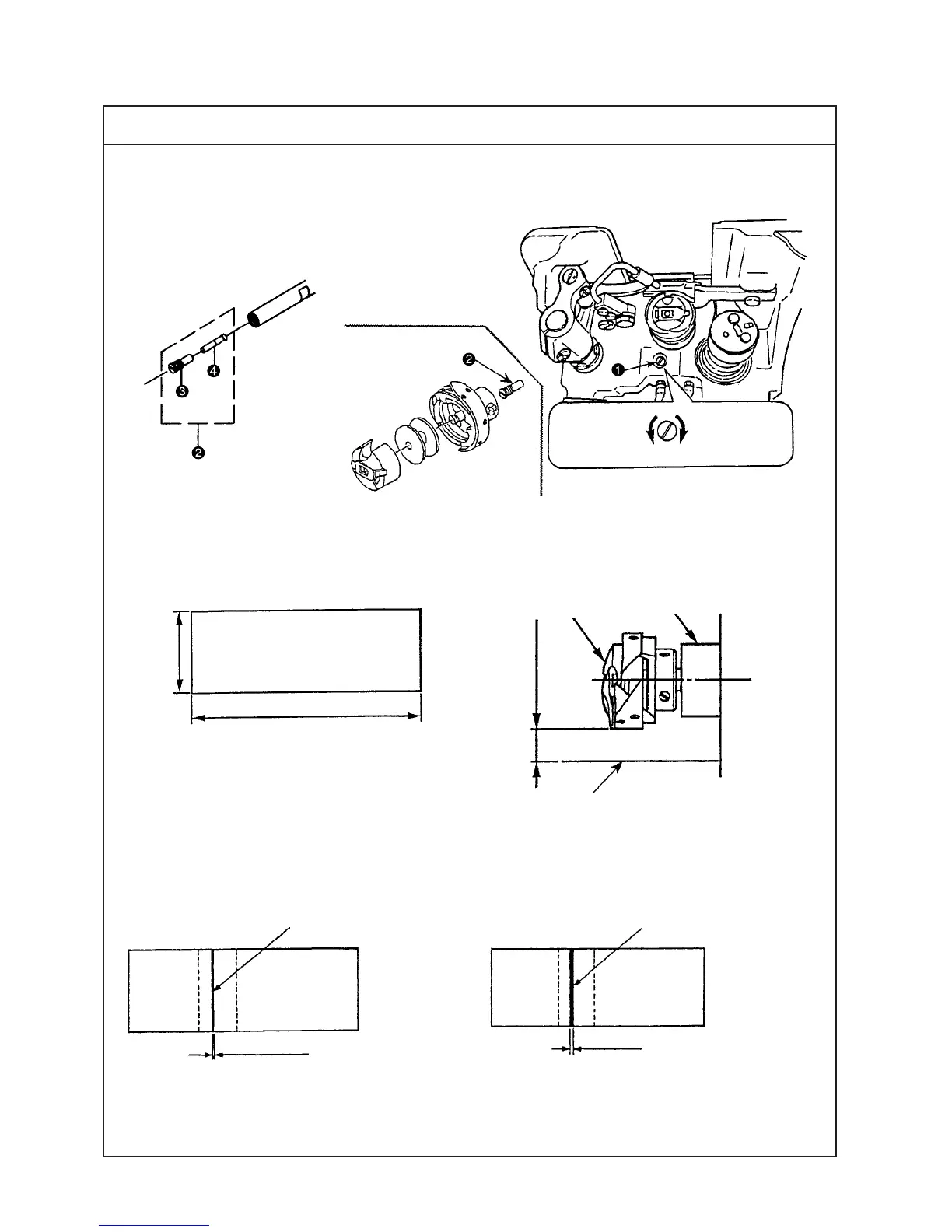

(7) Lubrication
8) Adjustment of hook oil quantity
9) Hook oil adjustment procedures
10) Essentials for hook oil adjustments
11) Replacement of the hook shaft oil wick
Less
Much
Oil quantity (trace) checking paper
Oil quantity (trace) checking paper
Approx. 25mm
Lower shaft front metal
Bed
Hook
3 to 10mm
To be applied to the bed wall.
Oil trace checking paper
Approx. 70mm
* Unnecessary to worry about the quality of paper.
* Apply the oil quantity (trace) checking paper to hook’s
lower side and check it from a distance of 3 to 10mm.
Oil quantity (small)
Oil quantity (large)
Oil sprinkles from the hook
Oil sprinkles from the hook
• DDL-9000A-SS, A-M : 0.5 to 1mm
• DDL-9000A-SH : 1 to 3mm
• DDL-9000A-SS, A-M : 1 to 1.5mm
• DDL-9000A-SH : 2 to 4mm
Standard Adjustment
To Next Page
