– 72 –
(14)

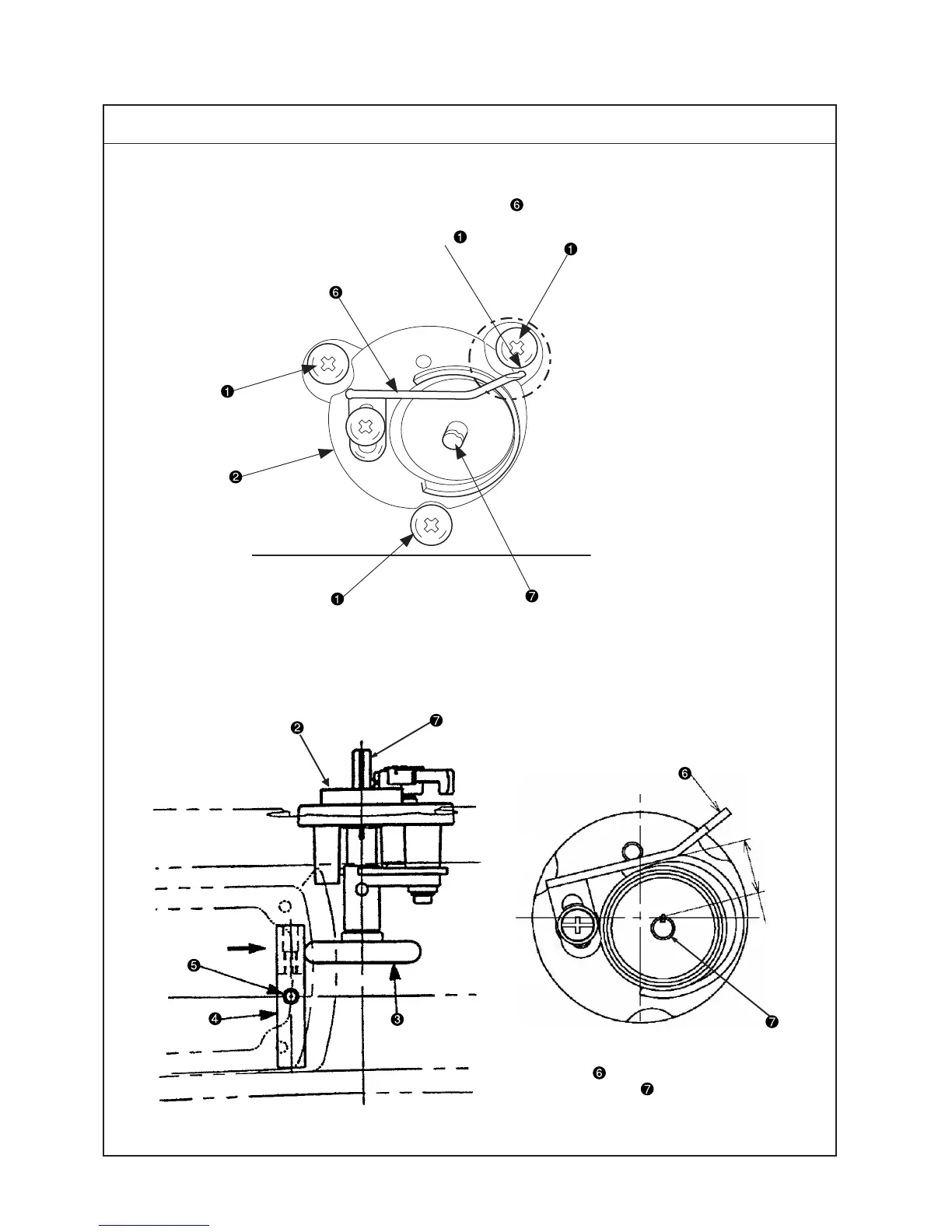

Adjustment of external parts
3)
Adjustment of the bobbin winder unit
Let the bobbin winder lever
coincide with the head of bobbin
winder unit setscrew
.
B
14mm
In the state of OFF
, the standard
distance of the bobbin winder
lever
is 14mm from the bobbin
winder shaft
.
Standard Adjustment
Operator side
75
