– 3 –

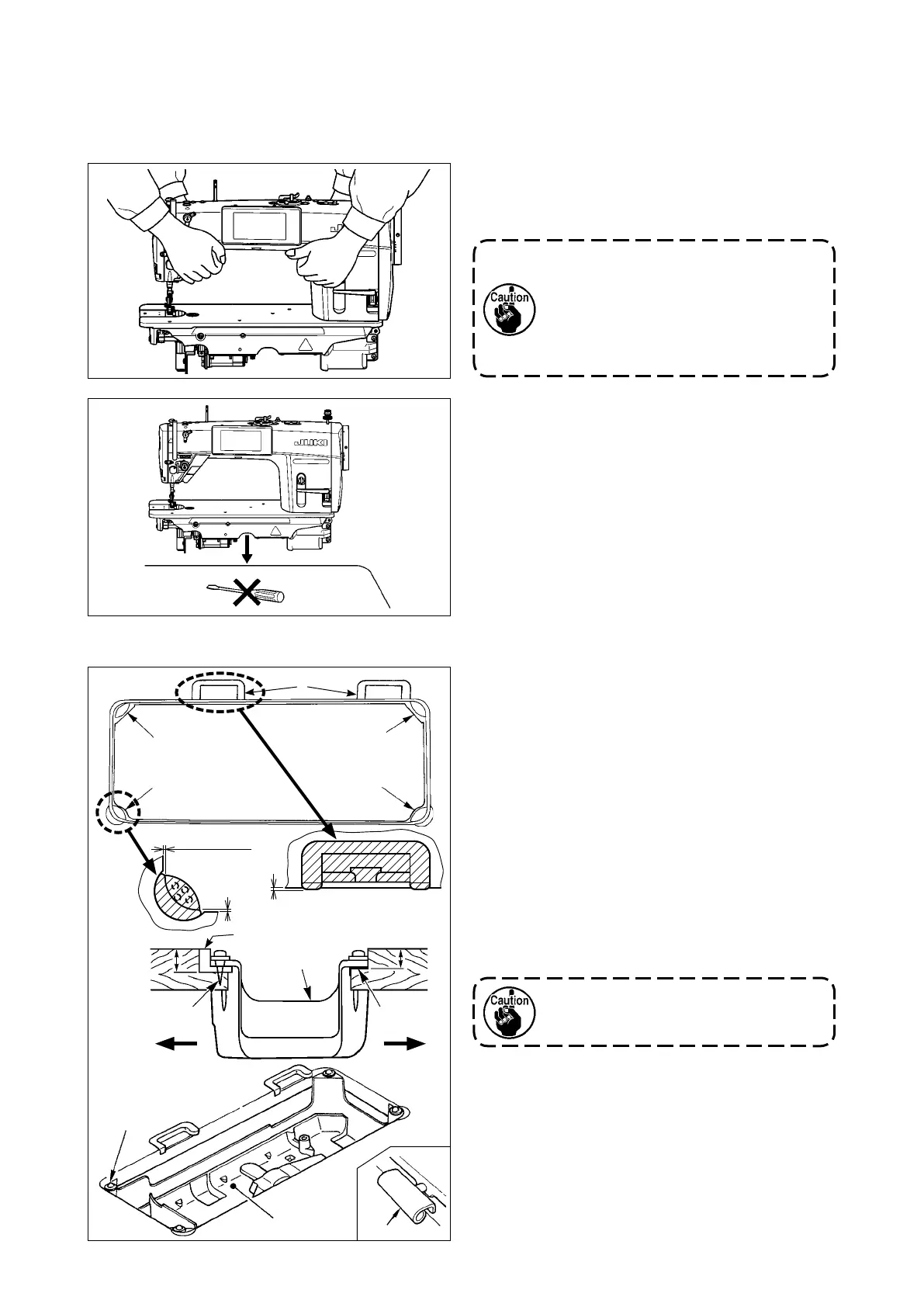

2-2. Cautions when setting up the sewing machine
2-2-1. How to carry the sewing machine
Carry the sewing machine while holding the machine
arm with two persons as shown in the gure.
1. Never hold the handwheel since it
rotates.
2. Be sure to handle the sewing
machine with two persons or more
since the sewing machine weighs
40.5 kg or more.
2-2-2. Caution when placing the sewing ma-
chine
Place the sewing machine on a horizontal and plane
place when placing it and do not place any protrud-
ing thing such as a screwdriver or the like.
Do not hold the handwheel.
2-3. Installation
Thank you very much for the purchase of JUKI Industrial Sewing Machine this time. Make sure of items 2-1
through 2-12 before operating to use this sewing machine with ease.
1) The under cover ❹ should rest on the four cor-
ners of the machine table groove. Mount rubber
hinge seat ❺ on the table and x it on the table
with a nail.
2) Fix two rubber seats ❶ on side A (operator’s
side) using nails ❷ as illustrated above. Fix two
cushion seats ❸ on side B (hinged side) using a
rubber-based adhesive. Then place under cover
❹ on the xed seats.
3) Fit hinge ❼ into the opening in the machine bed,
and t the machine head to table rubber hinge
seat ❺ before placing the machine head on cush-
ions ❽ on the four corners.
❶
❸
❺
❶
❸
❽
❹
❼
23.5 mm
19.5 mm
❶
❹
❸
A
B
❷
1.2 ± 0.5 mm
1.2 ± 0.5 mm
1 ± 0.5 mm
To Next Page
